Stream Talk
O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JBL QUANTUM Stream Talk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman JBL QUANTUM Stream Talk

Summary of Contents for Harman JBL QUANTUM Stream Talk

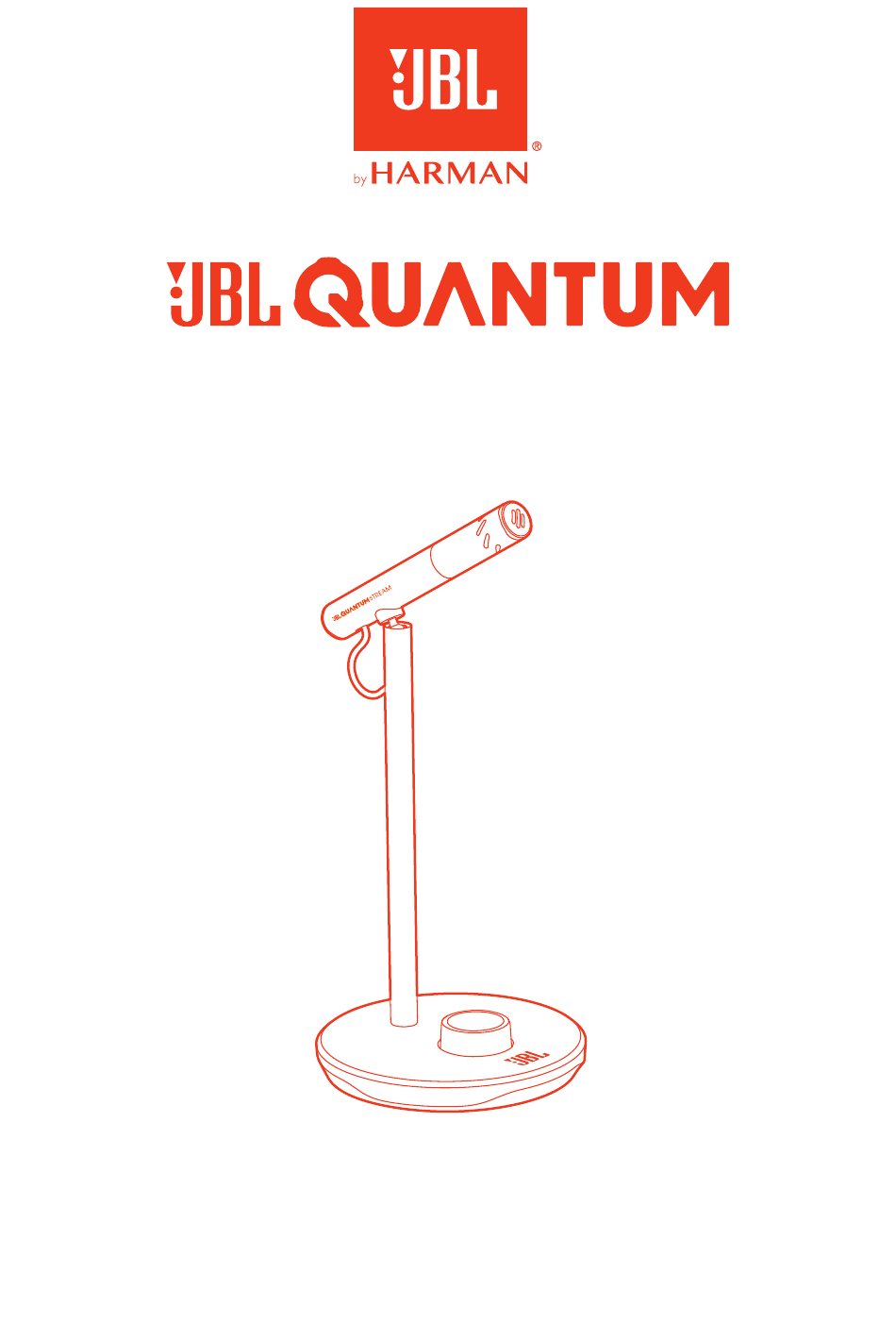

  • Page 1 Stream Talk O W N E R ’ S M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ......................1 WHAT’S IN THE BOX ..................... 2 PRODUCT OVERVIEW ....................3 GETTING STARTED....................... 4 System compatibility ...........................4 Connecting USB power cable ........................4 Connecting a monitoring headphone .....................5 First-time setup for PC ..........................6 First-time setup for Mac ..........................7 USING YOUR MICROPHONE ..................

  • Page 3: Introduction

    Introduction Congratulations on your purchase! This manual includes information on the JBL Quantum Stream Talk microphone. We encourage you to take a few minutes to read this manual, which describes the product and includes step-by-step instructions to help you to set up and get started. Read and understand all the safety instructions before using your product.

  • Page 4: What's In The Box

    What’s in the box JBL Quantum Stream Talk microphone USB power cable (USB-A to USB-C) QSG, warranty card and safety sheet - 2 -...

  • Page 5: Product Overview

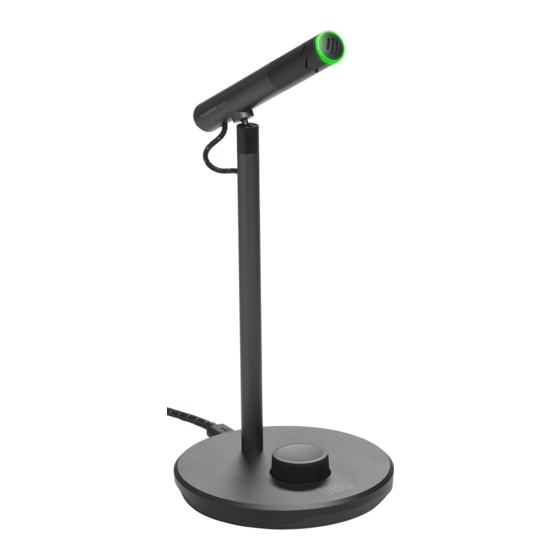

    Product overview Ring LED (Mute/Unmute/Volume Indicator) Rotary joint Volume knob • Adjusts headphone volume or microphone gain. • Mutes or unmutes the microphone. USB-C port 3.5mm headset port - 3 -...

  • Page 6: Getting Started

    Getting started System compatibility • PC and Mac (desktop or laptop) with USB-A or USB-C ports • Mobile devices with USB-C ports • PlayStation™: PS4/PS5 console with USB-A port • Nintendo Switch™ with USB-C port and Nintendo Switch™ console with USB-A port Connecting USB power cable 1.

  • Page 7: Connecting A Monitoring Headphone

    NOTES: • For best performance, use the original cable. Third-party USB cables may not work with all models of said devices. • USB-C to USB-C cable is not included by-pack. Connectivity with USB-C may not work with all models of said devices. Connecting a monitoring headphone 2.5 mm 3.5 mm...

  • Page 8: First-Time Setup For Pc

    First-time setup for PC Download from www.jblquantum.com/engine to gain full access to features on your JBL Quantum Stream Talk, such as EQ settings. Software requirements Platform: Windows 10 (64 bit only) / Windows 11 500MB of free hard drive space for installation 1.

  • Page 9: First-Time Setup For Mac

    JBL Quantum Stream Talk NOTE: • By default, all sounds will be played through the JBL Quantum Stream Talk microphone and heard through a headphone connected to it. To hear sound from the Mac directly, select the built-in speakers. - 7 -...

  • Page 10: Using Your Microphone

    Using your microphone Mute/unmute × 1 Press the volume knob to mute or unmute the microphone. Ring LED color Microphone status Muted Unmuted - 8 -...

  • Page 11: Headphone Volume/Microphone Gain

    Headphone volume/microphone gain >3s To adjust the headphone or sidetone volume: • Rotate the volume knob clockwise or counterclockwise.  The ring LED lights up in teal when you adjust the headphone volume.  The ring LED flashes in teal when the maximum or the minimum headphone volume is reached.

  • Page 12: Product Specifications

    Product Specifications MICROPHONE • Power required/consumption: 5 V 500 mA • Sample rates: 44.1 kHz / 48 kHz / 96 kHz • Bit rate: 16 / 24 bit • Capsules: 6 mm Electret Condenser Microphone • Polar patterns: Super Cardioid •...

  • Page 13: Troubleshooting

    Make sure that the microphone is properly connected to your headphone and PC, Mac or gaming console device. • Make sure that you have chosen JBL Quantum Stream Talk as the sound source of your PC, Mac or gaming console device. •...
  • Page 14 Adjust the rotary joint and speak towards the microphone. My voice cannot be heard by my teammates • Make sure that you have chosen JBL Quantum Stream Talk as the recording device in the sound settings of your PC, Mac or gaming console device. •...
  • Page 15 HP_JBL_Quantum Stream Talk_OM_SOP_V3_EN...
