VM200 WIRELESS MICROPHONE SYSTEM
QUICK START GUIDE
Thanks for purchasing JBL VM200 wireless microphone system.
JBL VM200 boasts ultra-clarity and reliable wireless performance, and meets the high standard from either small karaoke entertainment
sound application, or professional applications, such as small flowing performance and small hall sound reinforcement. It provides the
following features:
Preset frequency/channel module for Ch-A and Ch-B
Auto Scan
Synchronization through IR
Auto Mute
Auto Sleep
Auto Wakeup

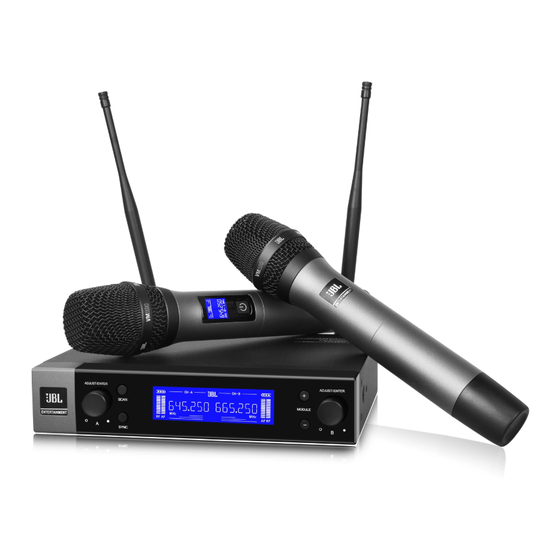

Each package includes one SR200 receiver and two HT200 hand-held transmitters.
Remind: Please do not use more than 18 sets in one Karaoke venue. (Based on one set per room)
1.
Volume (A/B):To lock/unlock SR200, adjust channel volume, or configure channel
settings, etc.
NOTE: Settings of each channel include:
(to
output of HT200),
the channel),
(to set the display mode).
2.
Auto Scan: To enable or disable automatic search for available frequencies. Only
effective when SR200 is unlocked.
3.
Auto Sync: To enable or disable automatic frequency synchronization between SR200
and HT200. Only effective when SR200 is unlocked.
4.
IR Sensor: For frequency synchronization with HT200.
5.
LCD: Shows status of Ch-A and Ch-B: audio signal level, RF signal level, frequency/
channel, mute,HT200 handheld battery level,etc.
6.
Frequency/Channel Module:To select preset frequency/channel module for Ch-A
11. Pick-up:For vocal or instrument sound pick-up.
DON'T hand hold or block this area when using HT200.
12. LCD: Shows status of HT200: battery level, frequency/channel, mute, etc.
13. On/Off button: Long press the button to turn HT200 on or off. This button can also be
used to activate or deactivate its auto mute function.

ABOUT VM200

USER INTERFACE

(to set the channel frequency),
(to set auto attenuation of the output gain of
and Ch-B. Only effective when SR200 is unlocked.
7.
Antenna: Connect the UHF antennas provided.
DON'T block this area when using SR200.
8.
On/Off button: To turn SR200 on or off.
9.
Power Input:Power requirement: 12V DC, 1A. Connect the power adapter
provided.
10. Mix Out: 6.35 mm unbalanced TS connector. Use the 6.35 mm audio cable supplied
and connect it to downstream audio devices (e.g. audio processors).
14. Grip/Battery compartment: Hold this area when using HT200. Twist it off to install
or replace the batteries or prepare HT200 for frequency/channel synchronization with
SR200 through IR.
15 Antenna: For wireless transmission of RF signal.
DON'T block this area when using HT200.
VERSION: 25/12/2019

PACKING LIST

1) 1 × SR200 receiver
2) 2 × HT200 hand-held transmitters
3) 2 × Antennas
4) 1 × Power adapter
(plug type varies by region)
5) 1 × Audio cable (with 6.35 mm plug)
6) 2 × Anti-rolling rubber rings
7) 4 × AA batteries
8) 1 × Quick Start Guide
