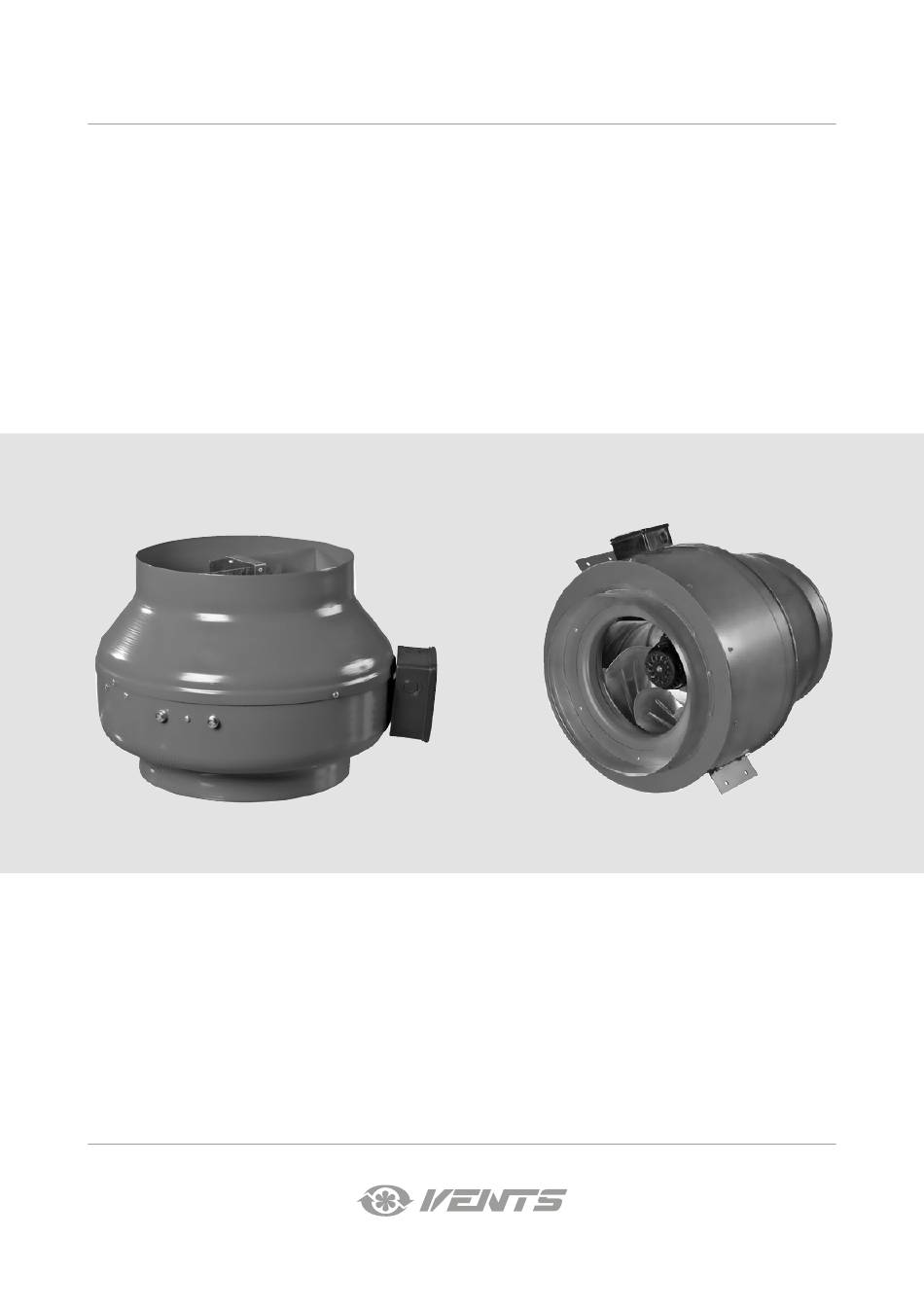

- Page 1 USER’S MANUAL VKM 100 E VKM 200 E VKM 305 VKM 100 VKM 200 VKMS 305 VKM 125 E VKMS 200 VKM 355 Q VKM 125 VKM 250 E VKM 400 VKM 150 E VKM 250 VKM 450 VKM 150...
-
Page 2: Table Of Contents
• While installing the unit, follow the safety regulations specific to the use of electric tools. • Do not change the power cable length at your own discretion. • Do not bend the power cable. • Avoid damaging the power cable. www.vents-us.com... - Page 3 • Do not sit on the unit and avoid placing foreign objects on it. • Use the unit only for its intended purpose. THE PRODUCT MUST BE DISPOSED SEPARATELY AT THE END OF ITS SERVICE LIFE. DO NOT DISPOSE THE UNIT AS UNSORTED DOMESTIC WASTE. www.vents-us.com...
-
Page 4: Purpose
PURPOSE The VENTS VKM centrifugal fans are designed for ventilation of domestic, public and manufacturing premises heated during winter. The transported air temperature must be within the limits stated in the «Technical data» section. THE UNIT SHOULD NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL, MENTAL, OR SENSORY CAPACITIES, OR THOSE WITHOUT THE APPROPRIATE TRAINING. -
Page 5: Technical Data
OVERALL AND CONNECTING DIMENSIONS VKM 100 - 315 VKM 355 - 450 Dimensions [mm] Model Duct dia VKM 100 E VKM 100 VKM 125 E VKM 125 VKM 150 E VKM 150 VKM 200 E... -
Page 6: Design And Operating Principle
Drill the holes in the mounting surface to match the fitment holes of the fixing brackets. • Fix the fan with the screws. • Connect the air ducts of the respective size to the fan and fix them with clamps. www.vents-us.com... -
Page 7: Connection To Power Mains
For the other fans The TW1, TW2 terminals are the electrical leads of the normally closed contact of the motor overheating protection. The QF circuit breaker is not included in the delivery and must be installed by the user. www.vents-us.com... -
Page 8: Technical Maintenance
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. www.vents-us.com... -
Page 9: Manufacturer's Warranty
Production meets standard operating requirements in the USA and Canada. Vents US warrants to the original purchaser of the unit that it will be free from defects in materials or workmanship for a period of 24 months from the date of original purchase. The Vents US warrants to the original purchaser of the unit that the integrated control unit will be free from defects in materials and workmanship for a period of 24 months from the date of original purchase. -
Page 10: Certificate Of Acceptance
The unit has been installed in accordance with the provisions of all the applicable local and national construction, electrical and technical codes and standards. The unit operates normally as intended by the manufacturer. Signature: WARRANTY CARD Unit Type Centrifugal inline fan Model VKM_______________ Serial Number Manufacture Date Purchase Date Warranty Period Seller Seller’s Stamp www.vents-us.com... - Page 11 www.vents-us.com...
- Page 12 VUSA05EN-11...
