Summary of Contents for Kränzle Ventos 42 L/PC

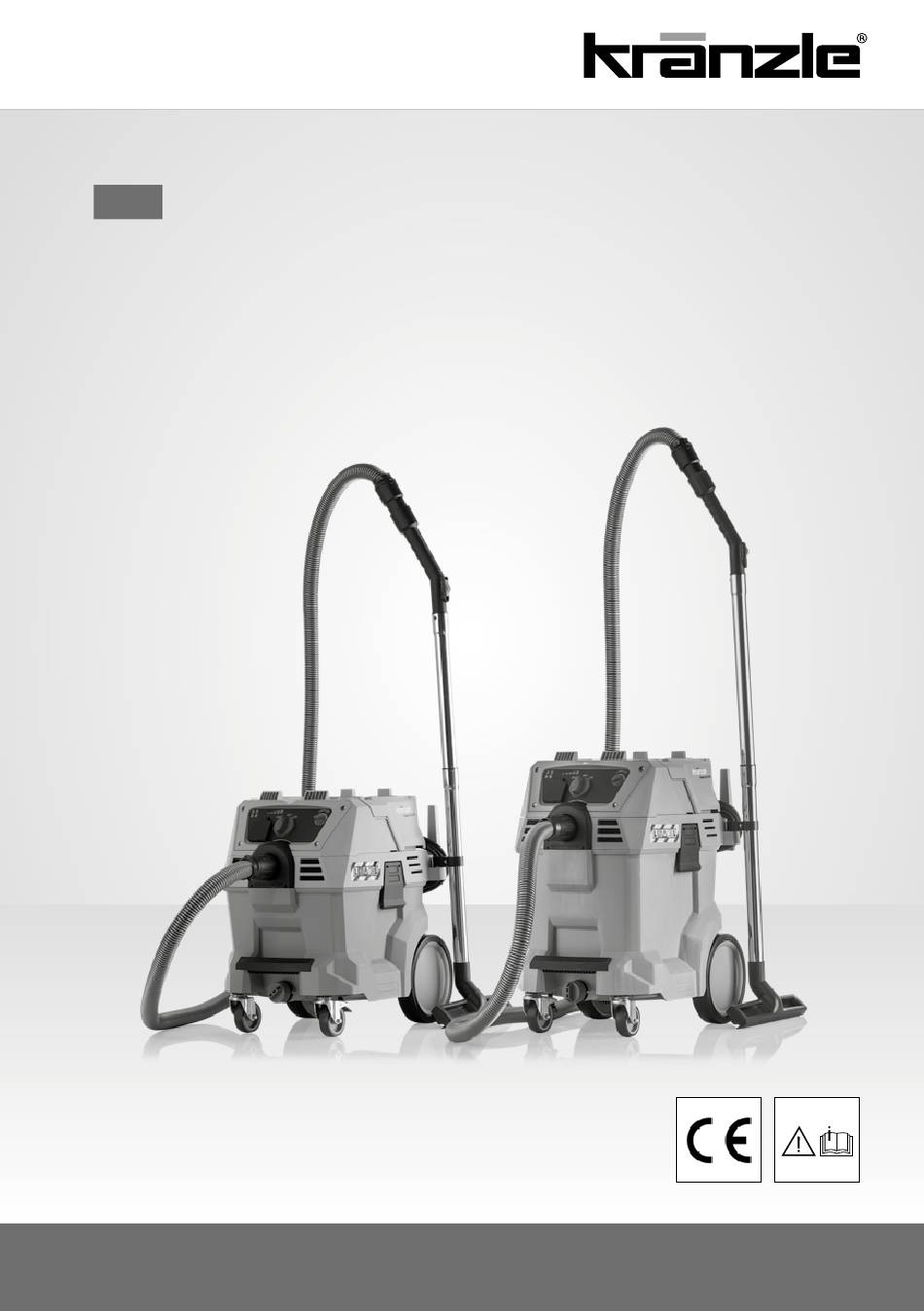

- Page 1 Operating manual with spare parts list Industrial vacuum cleaner Ventos 32 L/PC Ventos 42 L/PC www.kraenzle.com...
- Page 2 Industrial vacuum cleaner Ventos 32 L/PC Ventos 42 L/PC Operating manual! This manual is a translation of the original manual. Read and conform safety instructions before use! Technical data will be found in the Spare parts list.
-
Page 3: Table Of Contents
In order to facilitate handling of the industrial vacuum cleaner, the following pages are ntended to further explain the use of the Ventos 32 L/PC / Ventos 42 L/PC. Note on the use of the industrial vacuum cleaner. -
Page 4: Safety Notes
Safety notes Safety notes Read and conform safety instructions before use! The industrial vacuum cleaner and all associated parts must be WARNING DANGER Errors in compliance with the warnings and instructions may checked for proper condition and operational safety before each cause electric shocks, fires and/or serious injuries! Keep this use. - Page 5 Safety notes Safety notes When carrying the industrial vacuum cleaner, pay attention Do not vacuum the following materials: explosive or flammable WARNING DANGER to its weight (see technical data). Note that the weight of the gases, liquids and reactive dust particles, reactive metal dust vacuum cleaner is increased by a filled container.
- Page 6 Safety notes Safety notes Risk of injury from uncontrolled start-up of power tools! Before Disconnect the unit from the mains before carrying out WARNING DANGER connecting the mains connection cable of the power tool to the any maintenance work on it. vacuum cleaner, make sure that the power tool is switched off Cleaning and maintenance work must not be carried out WARNING...
-
Page 7: Description Of The Industrial Vacuum Cleaner
Design: Ventos 32 L/PC / Ventos 42 L/PC Accessories: The Ventos 32 L/PC / Ventos 42 L/PC is a mobile industrial vacuum cleaner with an Note on unpacking: Some of these accessories are packed in the collection container. - Page 8 5. Socket with cover for mains plugged in connection of electrical tool vacuum cleaner (max. 2200 W) Ventos 32 L/PC Ventos 42 L/PC 2. LED indicator collection container full 6. Rotary knob for regulating the suction power 3. LED indicator suction power...
-
Page 9: General Rules
General rules General rules Specified Conditions of Use Tests and approvals This industrial vacuum cleaner has been designed and tested to ensure efficient Electrical tests must be carried out in compliance with the safety regulations and safe operation as long as it is correctly maintained and used in accordance according to EN 65638. -
Page 10: Assembly
Assembly Assembly Read the chapter "Safety instructions" in these operating 2. Fitting the hose and mains connection cable holder ATTENTION manual carefully before setting up this industrial vacuum cleaner! Open the filter cover To open the filter cover, pull the cover Always disconnect the appliance from the mains before opening DANGER the industrial vacuum cleaner! - Page 11 Assembly Assembly Check that the restraint is properly Close the filter lid: Lift the lid by the engaged. Then you can start fitting filter lid handle (D) or by the handle (A) the hose/mains connection cable holder. with one hand. Carefully lift the rod Insert the holders into the recesses (C) over the retaining hook (B) with provided on the head.
-
Page 12: Functional Details
Functional details Functional details Display Filter cleaning Filter cleaning should be carried out regularly. Filter cleaning becomes necessary as soon as the suction power decreases (see chapter "Small repairs - do it yourself!" in this operating manual). The unit is equipped with a semi-automatic filter cleaning system. -
Page 13: Putting Into Operation
Putting into operation Putting into operation Read the chapter "Safety instructions" in these operating manual Wear a dust mask (suitable for fine dust) when cleaning the ATTENTION WARNING carefully before setting up this industrial vacuum cleaner! filter or the industrial vacuum cleaner. Always disconnect the appliance from the mains before opening DANGER When vacuuming different types of... - Page 14 Putting into operation Putting into operation 2.1 Prepare the device for dry vacuuming When the dust bag is full, remove it in the same way and close the dust bag To collect dust and facilitate disposal, the vacuum cleaner can be used with a inlet with the lid.
- Page 15 Putting into operation Putting into operation 6. Choose the right nozzle 2.2 Prepare the device for wet vacuuming When wet vacuuming, you do not need a dust bag or a disposal bag. Using the floor nozzle: To vacuum up dry dust and dirt, use the floor Only operate the industrial vacuum cleaner with an inserted and nozzle with bristle edge (1) for dry floors.
- Page 16 Putting into operation Putting into operation 8. Plug in the mains plug 10. Starting up the vacuum cleaner with a power tool Connect to circuit (see technical data). The vacuum cleaner is equipped with a socket through which it can be used together with a power tool.
- Page 17 Putting into operation Notes Remove the hand tube and attach the adapter for the electrical tool to the suction hose. Attach the conical adapter to the electrical tool. Connect to circuit (see technical data). Only connect the unit to properly earthed power sources. The DANGER voltage indicated on the rating plate must match the voltage of the power source.
-
Page 18: Taking Out Of Operation
Taking out of operation Taking out of operation 1. Switch off the device Empty the collection container of the vacuum cleaner after each WARNING use. This will also prevent spontaneous ignition of the contents of Turn the rotary knob of the vacuum cleaner the container. -
Page 19: Small Repairs - Do It Yourself
Taking out of operation Small repairs - do it yourself Store the vacuum cleaner accessories safely Cleaning and maintenance work must not be carried out WARNING and in a space-saving way by children. The accessories, hose and cable can be stored at the back of the appliance. Disconnect the unit from the mains before carrying out any DANGER maintenance work on it. - Page 20 Small repairs - do it yourself Small repairs - do it yourself Read the chapter "Safety instructions" in these operating manual 4. Check the filter for cleanliness and correct seating in the unit. Clean the filter ATTENTION carefully before carrying out any repairs! if necessary (see chapter "Safety instructions"...
-
Page 21: Kränzle Accessories
Kränzle accessories Kränzle accessories Flat nozzle For narrow spots Dust bag (5 pieces) Length: 300 mm Art.-Nr.: 584016 Ord. no.: 454511 Ord. no.: 584023 Disposal bag (5 pieces) Art.-Nr.: 584016 Ord. no.: 454551 Suction brush Disposal bag (1 piece) For sensitive surfaces Art.-Nr.: 584016 Ord. -
Page 22: Eu Declaration Of Conformity
The warranty obligation of Josef Kränzle GmbH & Co. KG towards the dealer from the industrial vacuum cleaners: Ventos 42 L/PC whom you have purchased this KRÄNZLE-industrial vacuum cleaner (= product) applies to material faults only such as material and manufacturing defects. -
Page 23: Technical Data
Technische Daten Technical data Technische Daten Ventos 32 L/PC Ventos 42 L/PC Technical data Ventos 32 L/PC Ventos 42 L/PC Elektrischer Anschlusswert 220-240V / ~1 / 50-60Hz / 16A 220-240V / ~1 / 50-60Hz / 16A Connected load 220-240V / ~1 / 50-60Hz / 16A... - Page 24 Schaltplan Notizen Wiring diagram Notes Schaltplan Ventos 32 / Ventos 42 230 V 1~/50 Hz...
-
Page 25: Spare Parts List
Ersatzteilliste Behälter Ersatzteilliste Behälter Spare parts list container Spare parts list container Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Zubehöraufnahme 457004 Blechschraube 4,8 x 25 426471 Radachse 457006 Blechschraube 4,8 x 45 457076 Rad 210 mm 457072 Starlock Scheibe 20 mm 457075 Radkappe 457071... - Page 26 Ersatzteilliste Schaltkasten Ersatzteilliste Schaltkasten Spare parts switchbox Spare parts switchbox Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Steckdose 230V 50Hz inkl. Schrauben und Dichtung 457088 Drehknopf Ein/Ausschalter 457031 Potentiometer Saugstärkeregelung 457089 Drehknopf Saugstärke / Abklopfen 457091 Blechschraube 4,8 x 25 426471 Frontpanel 4570301...
- Page 27 Ersatzteilliste Saugkopf oberer Teil Ersatzteilliste Saugkopf oberer Teil Spare parts list suction head upper part Spare parts list suction head upper part Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Zwischenplatte 457022 Luftführung 457025 Frontgehäuse 457028 Faltenfi lter Patrone 457079 Schlauchhaken links und rechts 457024 Netzanschlusskabel 230V 50Hz...
- Page 28 Ersatzteilliste Saugkopf unterer Teil Ersatzteilliste Saugkopf unterer Teil Spare parts list suction head bottom part Spare parts list suction head bottom part Position Bezeichnung Stck. Bestell-Nr. Description Qty. Item no. Trägerplatte 457014 Eingangsstück antistatisch 457019 Saugkanal mit Dichtung 457020 Schwimmerschalter 457087 Kabelklemme Netzanschlusskabel 457084...
- Page 29 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com www.kraenzle.com...
