- Page 1 Hair Clipper and Trimmer Pack User Manual Model No.: MR-8101 and MY-706 Rev 1 Note: The specifications and/or components of this appliance are subject to change without prior notice.
-
Page 2: Table Of Contents
1 Safety Instructions ................. 4 2 Components ................... 7 3 Hair Clipper - Instructions for Use ..........8 3.1 Charging the Hair Clipper ................8 4 Lock Function ................. 9 5 Tap Symbol ................... 10 6 Operation ..................10 6.2 Fine Height Adjustment ................11 6.3 To use the Clipper: .................. - Page 3 Page 3 of 20...
-
Page 4: Safety Instructions
1 Safety Instructions When using electrical appliances, basic safety precautions should always be followed, including the following: Carefully read this instruction manual before using the appliance and USB cable. Keep the appliance, accessories and USB cable out of reach of young children. •... - Page 5 • The use of accessories not intended for use with this Appliance may cause injuries to the user or damage to the Appliance, components and/or the USB cable. Do not sit the Appliance on other appliances, on uneven surfaces or where it could •...
- Page 6 WARNING Only use the USB cable that was supplied with this Appliance. Consumers are cautioned against trying to replace the battery. Using and/or purchasing counterfeit and/or inferior quality batteries have the potential to cause fire, personal injury, and/or damage to property. These batteries are typically found on online-auction websites or from other retailers and are known to pose a potential safety risk.
-
Page 7: Components
2 Components Hair Clipper USB Charging Cable (Hair Clipper Only) Nose Trimmer On / Off Switch Hair Clipper LED Display Nose Trimmer Cleaning Brush Hair Clipper Combs Hair Clipper On / Off Button Storage Bag Lubricating Oil Page 7 of 20... -
Page 8: Hair Clipper - Instructions For Use
3 Hair Clipper - Instructions for Use IMPORTANT: Refer to the Section “Lubrication” before first use. NOTE: The Clipper Head is waterproof. This means, other than the USB cable, the clipper head (not the body) can be rinsed under a running tap but cannot be used whilst in the shower. 3.1 Charging the Hair Clipper Read the Safety Instruction first. -
Page 9: Lock Function
• The LED numerical display will light up and indicate the level of charge and the symbol “ “ will illuminate Red colour indicating the battery is charging. • When fully charged, the LED numerical display will show “100". • Unplug the USB charging cable from the appliance. Note: During use, the Symbol “... -
Page 10: Tap Symbol
5 Tap Symbol The small Water Tap symbol “ “ will start to flash in the display if the Clipper head needs cleaning. Refer to the section “Care and Cleaning”. 6 Operation 6.1 Hair Clipper The appliance comes with various height comb attachments for varying the trim height. -
Page 11: Fine Height Adjustment
6.2 Fine Height Adjustment The Clipper Blade height can be finely adjusted by rotating the Adjustment lever on the side of the Clipper Handle from 0.5mm to 2mm. Grasp the body of the hair Clipper with one hand, then with the other hand, rotate the adjustment lever to your desired setting. -
Page 12: Care And Cleaning
7 Care and Cleaning 7.1 Cleaning To ensure optimal trimming efficiency, the Clipper must be cleaned regularly. IMPORTANT: Do Not use flammable liquids, chemicals, abrasive creams, steel wool or scouring pads for cleaning. The easiest and most sanitary way to clean the product is to wash the Clipper head (not the clipper body) with fresh, warm (not hot) water each time after use. -
Page 13: Lubrication
When clean, gently shake the excess water from the clipper head. • • Allow the clipper to sit and air dry naturally. NOTE: Cleaning and user maintenance shall not be made by children without supervision. To replace, align the tab on the back of the Clipper blade assembly with the opening in the main body as shown, then swing closed and push in all the way until it locks in place. -
Page 14: Storage
8 Storage • Switch off and unplug the appliance. • Coil the USB cable loosely. Do not kink or pull the cable tight. • Ensure all parts are completely dry. • Store your appliance and accessories in a cool, dry location. 9 Technical Specifications Input: 5Vd.c. -
Page 15: To Use The Nose Trimmer
Remove the battery End Cap by rotating the End Cap anti-clockwise then remove. Install a good quality Alkaline “AA” size battery ensuring the polarity is in the correct orientation as shown on the nose trimmer body. i.e., + to + and – to – Refit the battery End Cap by rotating the End Cap clockwise until it locks in place. -
Page 16: Light
Slide the On / Off switch forward, then gently place the nose trimmer nozzle end into one nostril and work in a circular motion around the internal area of the nostril cavity. CAUTION: Be very careful not to push the trimmer too far up into the nasal cavity as this may become uncomfortable. - Page 17 To do this, turn off the nose trimmer. • • You can brush off the hair with the small cleaning brush supplied and then rinse only the trimmer head for a minute or so until the hairs have been washed away. IMPORTANT: DO NOT use high pressure water or compressed air to try and clean as you will damage the appliance.
-
Page 18: Lubrication
12.2 Lubrication The Nose Trimmer blades will need periodic lubrication to allow the blades to run smoothly. Use a drop of the supplied oil or sewing machine oil every few months of use directly onto the trimmer blades. Apply a couple of drops to the trimmer blades before first use. 13 Storage •... -
Page 19: Warranty Against Defect
15 Warranty Against Defect 12 Month Warranty Thank you for your purchase from Kmart. Kmart Australia Ltd warrants your new product to be free from defects in materials and workmanship for the period stated above, from the date of purchase, provided that the product is used in accordance with accompanying recommendations or instructions where provided. - Page 20 Page 20 of 20...
Need help?
Do you have a question about the MR-8101 and is the answer not in the manual?
Questions and answers

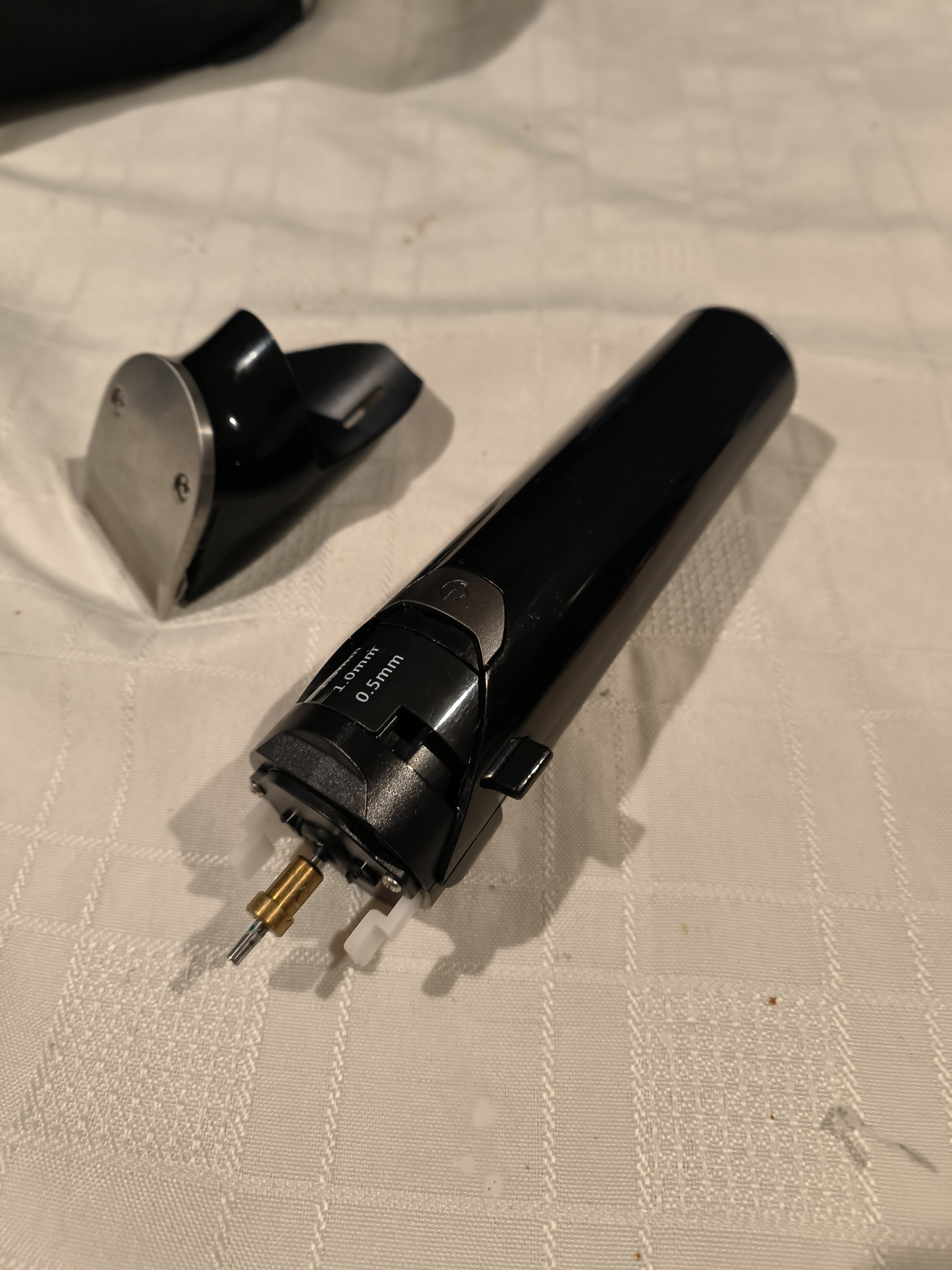

The head of the clippers has come off and I don't know how to put it back in
