Summary of Contents for Pilz PSEN 1.2p-23
- Page 1 PSEN 1.2p-23 PSEN sensor technology Operating Manual-21037-EN-14...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Requirements and connection to evaluation devices ............10 Installation ..........................13 Adjustment ..........................14 Periodic test ..........................15 Dimensions in mm .........................15 Technical details ........................16 Safety characteristic data......................18 Order reference ........................18 System ............................18 Accessories..........................18 EC declaration of conformity ....................19 UKCA-Declaration of Conformity ..................19 Operating Manual PSEN 1.2p-23 21037-EN-14... -
Page 4: Introduction
PSEN 1.2p-23 Introduction Validity of documentation This documentation is valid for the product PSEN 1.2p-23. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 1.2p-23 21037-EN-14... -
Page 6: Safety Regulations
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 1.2p-23 21037-EN-14... -
Page 7: For Your Safety

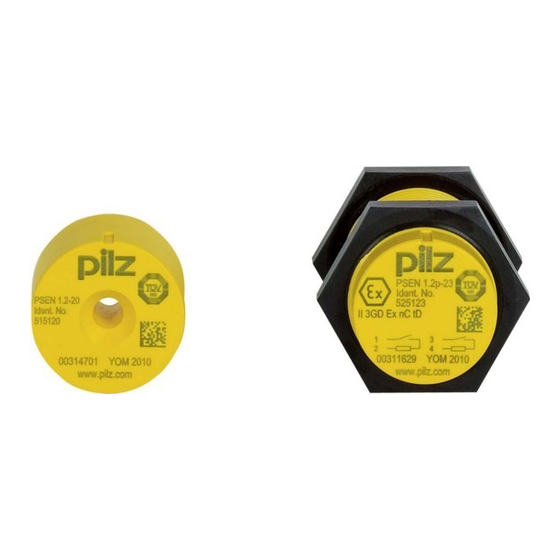

The actuator PSEN 1.2-20 belongs to the safety switch. Coded actuator Safety switch with 4-pin M8 male connector 2 safety contacts (reed contacts - N/O) Design: round (M30) Operation Magnetic Switching voltage 24 VDC ECOLAB tested Operating Manual PSEN 1.2p-23 21037-EN-14... -
Page 8: Function Description
Function description If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed. Operate the PSEN 1.2p-23 in conjunction with the following components: Actuator PSEN 1.2-20 (see Order reference [ 18]) and... -
Page 9: Lateral And Vertical Offset
Ensure the wiring and EMC requirements of EN 60204-1 are met. Depending on which evaluation device is used, the overall cable resistance must be checked; before commissioning it may also be necessary to check the cross circuit detec- tion function. Operating Manual PSEN 1.2p-23 21037-EN-14... -
Page 10: Pin Assignment
Requirements and connection to evaluation devices For use of PSEN 1.2p-23 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 1.2p-23 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 11 [ of PSEN 1.2p-23 – Always comply with the max. switching current safety contacts of PSEN 1.2p-23. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock)
- Page 12 PSEN 1.2p-23 PSENmag Evaluation device Input circuit Input circuit Non-Ex area Ex area Fig.: Dual-channel connection PSEN 1.2p-23 to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag brown white blue black Non-Ex area...
-
Page 13: Installation
Please note the installation measures in accordance with EN ISO 14119 for a proximity switch type 4 with coding level Low. Alignment errors of the guard must not adversely affect the safety function of the guard. Operating Manual PSEN 1.2p-23 | 13 21037-EN-14... -
Page 14: Adjustment
The protection type (see Technical details [ 16]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 1.2-20. Always test the function with a connected evaluation device. -
Page 15: Periodic Test
Dimensions in mm Safety switch SW 36 M8x1 Actuator ø 1,75 Legend [1] Notches at the safety switch and actuator [2] Nib at the actuator to prevent is from twisting Operating Manual PSEN 1.2p-23 | 15 21037-EN-14... -
Page 16: Technical Details
Vibration In accordance with the standard EN 60947-5-2 Frequency 10 - 55 Hz Amplitude 1 mm Shock stress In accordance with the standard EN 60947-5-2 Acceleration Duration 11 ms Airgap creepage Pollution degree Operating Manual PSEN 1.2p-23 | 16 21037-EN-14... - Page 17 Height 30 mm Width 30 mm Depth 16 mm Weight of safety switch 15 g Weight of actuator 16 g Weight 31 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN 1.2p-23 | 17 21037-EN-14...
-
Page 18: Safety Characteristic Data
Magnetic safety switch, 4-pin M8 male connector 505223 1.2-20/8mm/ATEX/ 1unit round actuator, with as- sured operating distance 8 mm PSEN 1.2p-23 1switch ATEX Magnetic safety switch 4-pin M8 male connector 525123 PSEN 1.2-20 / 1 actuator Actuator cube, with as- 515120... -
Page 19: Ec Declaration Of Conformity
This product/these products meet the requirements of the following directives of the European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany... - Page 20 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
