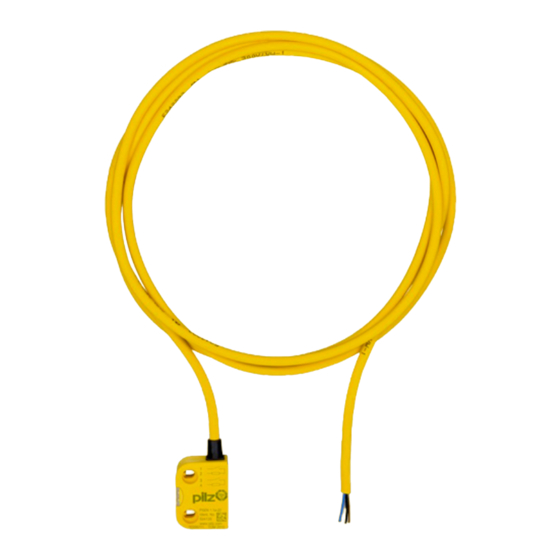

- Page 1 PSEN 1.1a/b-22 PSEN sensor technology Operating Manual-21204-EN-08...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Contents Introduction Validity of documentation Using the documentation Definition of symbols Safety Intended use Safety regulations Safety assessment Use of qualified personnel Warranty and liability Disposal For your safety Unit features Function description Block diagram Operating distances Lateral and vertical offset Wiring Pin assignment Requirements and connection to evaluation devices... -
Page 4: Introduction
PSEN 1.1a/b-22 Introduction Validity of documentation This documentation is valid for the product PSEN 1.1a/b-22. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. Using the documentation This document is intended for instruction. -
Page 5: Safety
PSEN 1.1a/b-22 INFORMATION This gives advice on applications and provides information on special fea- tures. Safety Intended use The safety function of the safety switch is: Safe detection of the magnetic actuator within the response range The safety switch meets the requirements in accordance with: EN 60947-5-3: PDDB only in connection –... -
Page 6: Safety Regulations
PSEN 1.1a/b-22 Safety regulations Safety assessment Before using a unit it is necessary to perform a safety assessment in accordance with the Machinery Directive. Functional safety is guaranteed for the product as a single component. However, this does not guarantee the functional safety of the overall plant/machine. In order to achieve the re- quired safety level for the overall plant/machine, define the safety requirements for the plant/machine and then define how these must be implemented from a technical and organ- isational standpoint. -
Page 7: For Your Safety
PSEN 1.1a/b-22 For your safety WARNING! Loss of safety function due to manipulation of the interlocking device Manipulation of the interlocking device may lead to serious injury and death. – You should prevent any possibility of the interlocking device being manipulated through the use of a spare actuator. -
Page 8: Block Diagram
PSEN 1.1a/b-22 Block diagram Actuator Safety switch Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 15]. Operating Manual PSEN 1.1a/b-22 21204-EN-08... -
Page 9: Lateral And Vertical Offset
PSEN 1.1a/b-22 Lateral and vertical offset Legend [1] Lateral offset [2] Vertical offset Actuator PSEN 1.1-20 The stated values are valid at a temperature of 20 °C. Assured operating distance S in mm Lateral offset Vertical offset Wiring Information given in the Technical details [ must be followed. -
Page 10: Pin Assignment
For use of PSEN 1.1a/b-22 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 1.1a/b-22 either with a certified Pilz evaluation device or with an evaluation device with defined properties Certified Pilz evaluation devices are, for example: PNOZelog for safety gate monitoring –... - Page 11 PSEN 1.1a/b-22 PNOZmulti for safety gate monitoring Configure the switch in the PNOZmulti Configurator with switch type 3. PSS for safety gate monitoring with standard function block SB064, SB066 or FS_Safety Gate PSSuniversal PLC for safety gate monitoring with function block FS_SafetyGate The correct connection to the respective evaluation device is described in the operating manual for the evaluation device.
- Page 12 32 41 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZmulti PSEN ix1 PSENmag brown white blue black...
-
Page 13: Installation
PSEN 1.1a/b-22 PNOZ s3 PSEN ix1 PSENmag brown white blue black Installation CAUTION! Potential loss of safety function due to changed device properties The unit's properties may be affected if installed in an environment contain- ing electrically or magnetically conductive material. –... -
Page 14: Adjustment
PSEN 1.1a/b-22 The distance between two safety switches must be maintained (see Technical details [ 15]). Safety switches and actuators – Should be kept away from iron swarf – Should not be exposed to strong magnetic fields – Should be used for fixed wiring only Prevent the safety switch and actuator being exposed to heavy shock or vibration Make sure that the safety switch and actuator cannot be used as an end stop. -
Page 15: Dimensions In Mm
PSEN 1.1a/b-22 Dimensions in mm Safety switch Actuator Technical details General 504228 504229 Approvals CE, EAC (Eurasian), ECOLAB, CE, EAC (Eurasian), ECOLAB, TÜV, cULus Listed TÜV, cULus Listed Sensor's mode of operation Magnetic Magnetic Coding level in accordance with EN ISO 14119 Design in accordance with EN ISO 14119... - Page 16 PSEN 1.1a/b-22 Environmental data 504228 504229 EN 60947-5-3 EN 60947-5-3 Vibration In accordance with the standard EN 60947-5-2 EN 60947-5-2 Frequency 10 - 55 Hz 10 - 55 Hz Amplitude 1 mm 1 mm Shock stress Acceleration Duration 11 ms 11 ms Airgap creepage Pollution degree...
-
Page 17: Safety Characteristic Data
EN 62061 13849-1:2015 500.000 Order reference System Product type Features Connection type Order no. PSEN 1.1a-22/PSEN Magnetic safety switch, actu- Cable, 5 m 504 228 1.1-20 /8mm/5m/ ator cube, with assured oper- ix1/1un ating distance 8 mm PSEN 1.1b-22/PSEN Magnetic safety switch, actu- Cable, 10 m... -
Page 18: Ec Declaration Of Conformity
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN 1.1a/b-22... - Page 19 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95600621 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
