- Page 1 PSEN 1.1p-23 PSEN sensor technology Operating Manual-21098-EN-14...
- Page 2 Preface This document is the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Adjustment ..........................ATEX installation and operating regulations (X) ..............Periodic test ........................... Dimensions in mm ......................... Technical details ........................Safety characteristic data ......................Order reference ........................System ............................Accessories ..........................EC declaration of conformity ....................Operating Manual PSEN 1.1p-23 21098-EN-14... -
Page 4: Introduction
PSEN 1.1p-23 Introduction Validity of documentation This documentation is valid for the product PSEN 1.1p-23. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 1.1p-23 21098-EN-14... -
Page 6: Safety Regulations
Disposal In safety-related applications, please comply with the mission time T in the safety-related characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 1.1p-23 21098-EN-14... -
Page 7: For Your Safety

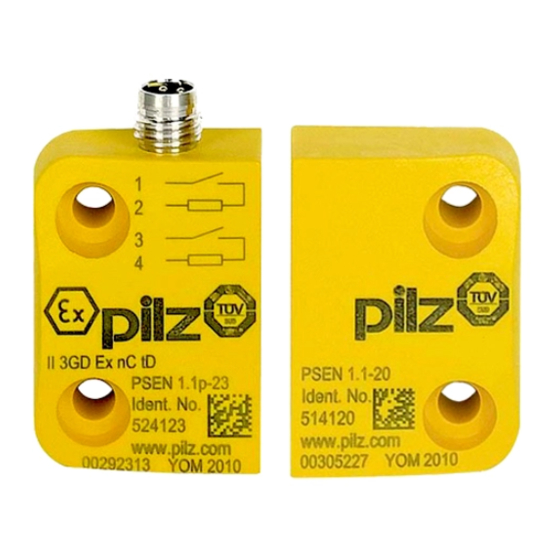

The actuator PSEN 1.1-20 belongs to the safety switch. Coded actuator Safety switch with 4-pin M8 male connector 2 safety contacts (reed contacts - N/O) Design: Square Operation Magnetic Switching voltage 24 VDC ECOLAB tested Operating Manual PSEN 1.1p-23 21098-EN-14... -
Page 8: Function Description
Function description If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed. Operate the PSEN 1.1p-23 in conjunction with the following components: Actuator PSEN 1.1-20 (see Order reference [ 19]) and... -
Page 9: Lateral And Vertical Offset
Ensure the wiring and EMC requirements of EN 60204-1 are met. Depending on which evaluation device is used, the overall cable resistance must be checked; before commissioning it may also be necessary to check the cross circuit detec- tion function. Operating Manual PSEN 1.1p-23 21098-EN-14... -
Page 10: Pin Assignment
Requirements and connection to evaluation devices For use of PSEN 1.1p-23 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 1.1p-23 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 11 [ of PSEN 1.1p-23 – Always comply with the max. switching current safety contacts of PSEN 1.1p-23. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock)
- Page 12 PSEN 1.1p-23 PSENmag Evaluation device Input circuit Input circuit Non-Ex area Ex area Fig.: Dual-channel connection PSEN 1.1p-23 to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZmulti PSENmag brown white blue black Non-Ex area...
-
Page 13: Installation
Prevent the safety switch and actuator being exposed to heavy shock or vibration. Make sure that the safety switch and actuator cannot be used as an end stop. Circumvention of the safety switch in a reasonably foreseeable manner must be preven- ted. Operating Manual PSEN 1.1p-23 | 13 21098-EN-14... -
Page 14: Adjustment
Technical details [ 17]) can only be achieved by using the Pilz connection leads available as an accessory. If possible, do not install the safety switch and actuator on to ferromagnetic material. Changes to the operating distances are to be expected. In this case, use the spacer (see Order reference). -
Page 15: Atex Installation And Operating Regulations (X)
Refer to the notes on checking the safety switch in EN 60079‑17 and EN 60079‑19. NOTICE The safety function should be checked after initial commissioning and each time the plant/machine is changed. The safety functions may only be checked by qualified personnel. Operating Manual PSEN 1.1p-23 | 15 21098-EN-14... -
Page 16: Dimensions In Mm
PSEN 1.1p-23 Dimensions in mm Operating Manual PSEN 1.1p-23 | 16 21098-EN-14... -
Page 17: Technical Details
Vibration In accordance with the standard EN 60947-5-2 Frequency 10 - 55 Hz Amplitude 1 mm Shock stress In accordance with the standard EN 60947-5-2 Acceleration 11 ms Duration Airgap creepage Pollution degree Operating Manual PSEN 1.1p-23 | 17 21098-EN-14... -
Page 18: Safety Characteristic Data
You must comply with the safety characteristic data in order to achieve the required safety level for your plant/machine. Operating mode B10d in accordance with EN ISO TM [year] in accordance with EN 13849-1: 2015 and EN 62061 ISO 13849-1:2015 Sensor, 2-channel 500.000 Operating Manual PSEN 1.1p-23 | 18 21098-EN-14... -
Page 19: Order Reference
Female connector, M8 30 m 533 141 straightplug30m straight, 4-pin Installation materials Product type Features Order no. PSEN Winkel / bracket Mounting bracket 532 110 PSEN spacer Spacer 534 310 PSEN reverse spacer Spacer 534 320 Operating Manual PSEN 1.1p-23 | 19 21098-EN-14... -
Page 20: Ec Declaration Of Conformity
This product/these products meet the requirements of the following directives of the European Parliament and of the Council. 2006/42/EC on machines 2014/34/EU (ATEX) The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/ downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN 1.1p-23... - Page 21 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia +45 74436332 Brazil +61 3 95600621 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
