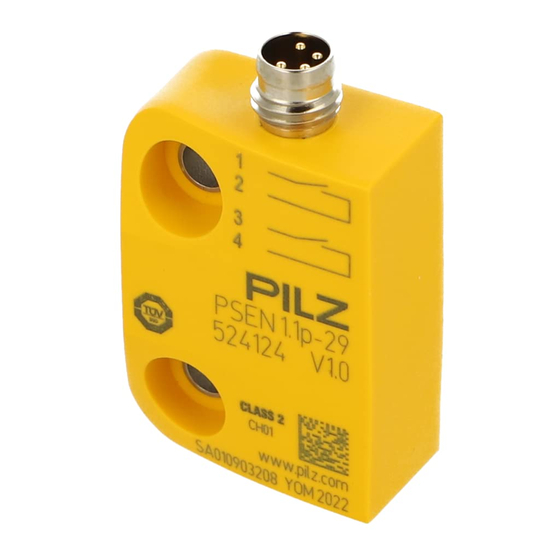

- Page 1 PSEN 1.1p-29 PSEN sensor technology Operating Manual-22141-EN-04...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
Operating distances Lateral and vertical offset Wiring Pin assignment Requirements and connection to evaluation devices Installation Adjustment Periodic test Dimensions in mm Technical details Safety characteristic data Order reference System Accessories EC declaration of conformity Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 4: Introduction
PSEN 1.1p-29 Introduction Validity of documentation This documentation is valid for the product PSEN 1.1p-29. It is valid until new documenta- tion is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. -
Page 5: Safety
If installed in other environments, measures should be taken to comply with the applicable standards and directives for the respective installation site with regard to in- terference. Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 6: Safety Regulations
In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 7: For Your Safety
If the actuator is within the response range (safety gate closed), the safety contacts of the safety switch are closed. The safety switch is designed for applications in series connections. Operate the PSEN 1.1p-29 in conjunction with the following components: Actuator PSEN 1.1-20 (see Order reference [... -
Page 8: Block Diagram
Block diagram Actuator Safety switch Magnet Operating distances (mm) omin Legend Assured operating distance Min. operating distance omin Assured release distance The offset-independent values for the switching distances are included in the Technical details [ 15]. Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 9: Lateral And Vertical Offset
In the following cases, check the function that detects shorts across contacts prior to commissioning: – On evaluation devices with DC supply voltage: Overall cable resistance ≥ 15 Ohms per channel – On evaluation devices with AC supply voltage: Overall cable resistance ≥ 25 Ohms per channel Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 10: Pin Assignment
Requirements and connection to evaluation devices For use of PSEN 1.1p-29 in accordance with DIN EN 60947-5-3 an evaluation device must be connected. Connect the PSEN 1.1p-29 either with a certified Pilz evaluation device or with an evaluation device with defined properties... - Page 11 PSEN 1.1p-29 – Always comply with the max. switching current safety contacts of PSEN 1.1p-29. Outputs at the evaluation device must only be switched on again when both reed con- tacts at the safety switch have been opened and closed (partial operation lock)
- Page 12 32 41 11 12 21 22 33 34 43 44 PSENmag Fig.: Dual-channel connection of four PSENmag to the input circuits of an evaluation device Examples for connection to Pilz evaluation devices: PNOZmulti PSEN ix1 PSENmag brown white blue black...
-
Page 13: Installation
The fastening of safety switch and actuator has to be sufficiently stable to ensure the proper operation of the safety switch and the actuator. The distance between two safety switches must be maintained (see Technical details [ 15]). Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 14: Adjustment
The protection type (see Technical details [ 15]) can only be achieved by using the Pilz connection leads available as an accessory. Adjustment The safety switch may only be used with the corresponding actuator PSEN 1.1-20. Always test the function with the PSEN ix1 interface and connected evaluation device. -
Page 15: Dimensions In Mm
Environmental data Ambient temperature Temperature range -10 - 55 °C Climatic suitability In accordance with the standard IEC 60068-2-30 Humidity 93 % r. h. at 40 °C Max. operating height above sea level 2000 m Operating Manual PSEN 1.1p-29 22141-EN-04... - Page 16 Actuator dimensions 36 mm Height Width 26 mm Depth 13 mm 14 g Weight of safety switch Weight of actuator 17 g Weight 31 g Where standards are undated, the 2015-09 latest editions shall apply. Operating Manual PSEN 1.1p-29 22141-EN-04...
-
Page 17: Safety Characteristic Data
7 mm PSEN 1.1p-29/7mm/ Magnetic safety switch 4-pin M8 male connector 524 124 ix1/ 1 switch PSEN 1.1-20 / 1 actu- Actuator cube, with assured 514 120 ator operating distance 8 mm Operating Manual PSEN 1.1p-29 22141-EN-04... -
Page 18: Accessories
European Parliament and of the Council. The complete EC Declaration of Conformity is available on the Internet at www.pilz.com/downloads. Representative: Norbert Fröhlich, Pilz GmbH & Co. KG, Felix-Wankel-Str. 2, 73760 Ost- fildern, Germany Operating Manual PSEN 1.1p-29...
