PRODUCT MANUAL

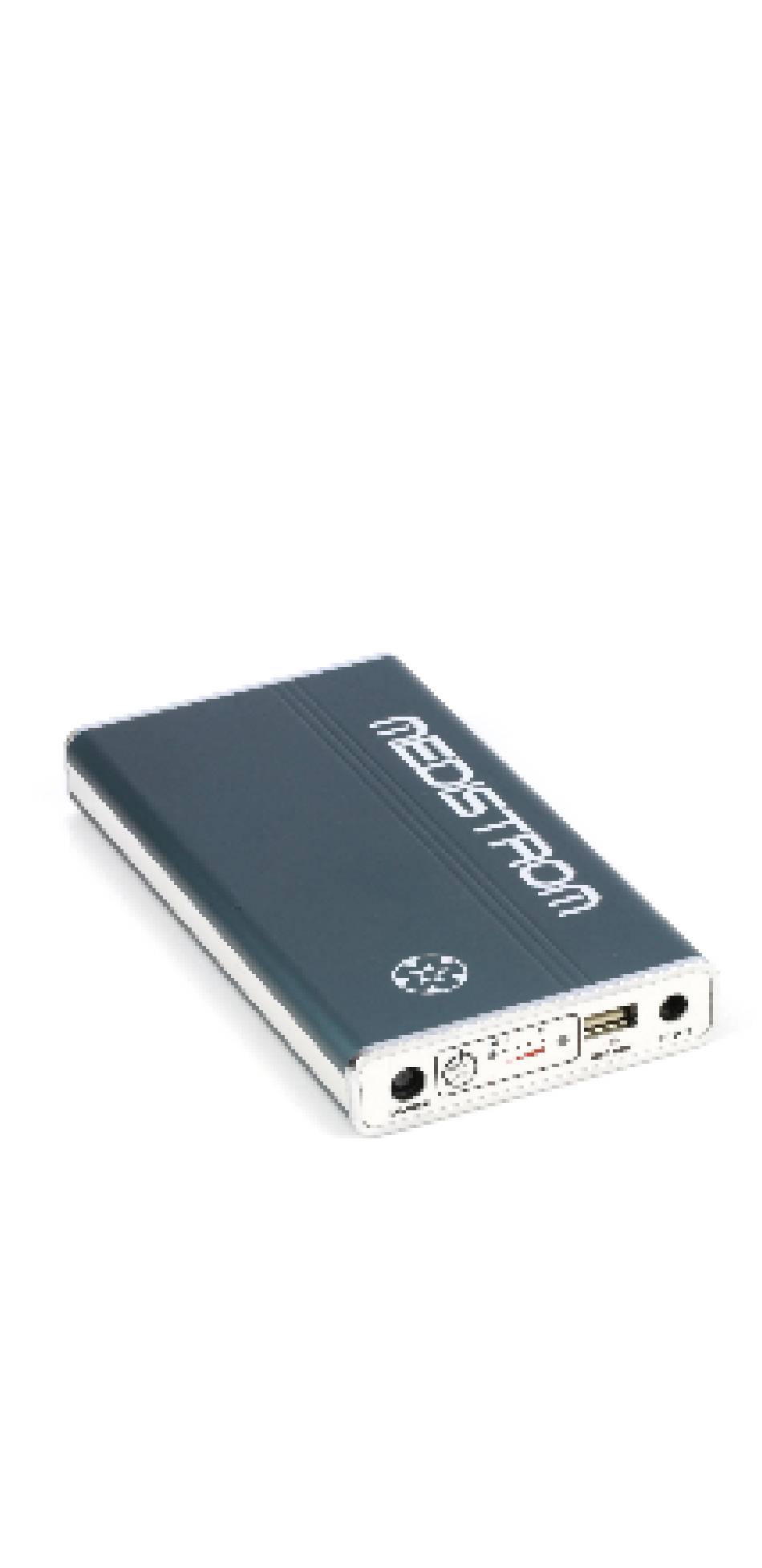

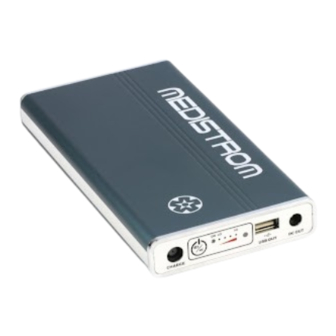

Medistrom Pilot-12 Lite
Medistrom Pilot-24 Lite
Battery and Backup Power Supply
Thank you for purchasing the Medistrom
CPAP Battery Portable Power Supply.
Please read this product manual carefully
before
operation for the 昀椀rst time.
putting
Manual Version: EU 03-11-2020
the
equipment
into
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Medistrom Pilot-12 Lite
Summary of Contents for Medistrom Pilot-12 Lite
- Page 1 PRODUCT MANUAL Medistrom Pilot-12 Lite Medistrom Pilot-24 Lite Battery and Backup Power Supply Thank you for purchasing the Medistrom CPAP Battery Portable Power Supply. Please read this product manual carefully before putting equipment into operation for the 昀椀rst time. Manual Version: EU 03-11-2020...
-
Page 2: Table Of Contents
1. PILOT-12 LITE 1.1 Contenu de l’emballage de Pilot-12 Lite 1.2 Compatibilité des périphériques PAP Pilot-12 Lite 1.3 Renseignements Importants Sur L’utilisation Sécurisée Du Pilot-12 Lite 1.4 Pilot-12 Lite Utilisation prévue et compatibilité 1.5 Panneau de con昀椀guration Pilot-12 Lite 1.6 Con昀椀guration du Pilot-12 Lite 1.7 Spéci昀椀cations du Pilot-12 Lite... - Page 3 Deutsche 1. PILOT-12 LITE 1.1 Pilot-12 Lite Lieferumfang 1.2 Pilot-12 Lite PAP-Geräte Kompatibilität 1.3 Wichtige Sicherheitshinweise Zur Verwendung Des Pilot-12 Lite 1.4 Pilot-12 Lite Bestimmungsgemäße Verwendung und Kompatibilität 1.5 Pilot-12 Lite Bedienteil 1.6 Pilot-12 Lite einrichten 1.7 Pilot-12 Lite Technische Daten 1.7 Pilot-12 Lite Technische Daten...
-
Page 4: Pilot-12 Lite
DC Output Cable for Intellipap II 3) Solar Panel, 50W (SKU# P99ACCS50) Section 1.2 Pilot-12 Lite PAP Device Compatibility SUPPORTED PAP DEVICES The Pilot-12 Lite can be used with ONLY the following APAP/CPAP devices: • Phillips Respironics System One S60 •... -
Page 5: Important Pilot-12 Lite Safety Usage Information
The Pilot-12 Lite can be used as a backup power source to prevent interruption to PAP therapy in the case of a power outage. Pilot-12 Lite can serve as a portable PAP battery during travel by air, land, or sea when the mains power source is not available. -
Page 6: Pilot-12 Lite Setup
DC output cable. Section 1.6 Pilot-12 Lite Setup NOTE: No power adapters are included with your Pilot-12 Lite Battery and Backup Power Supply. Refer to section 1.2 (PAP Device Compatibility) Using Pilot-12 Lite as a Backup Power Supply for PAP devices STEP 1 –... -
Page 7: Pilot-12 Lite Speci昀椀Cations
If the PAP device has been connected but not used within 10 min (or the PAP device is turned o昀昀 for 10 min), the Pilot-12 Lite will go into Stand-by Mode to conserve power. To wake the Pilot-12 Lite press the Multi Function Button. -
Page 8: Pilot-24 Lite
Includes: a. Output cable for APEX iCH and Sefam S.Box. b. Short charging adapter cable for APEX iCH and Sefam S.Box. 5) Medistrom AC Power adapter (SKU# P24ACCACA) 6) Solar Panel, 50W (SKU# P99ACCS50) Section 2.2 Pilot-24 Lite PAP Device Compatibility... -
Page 9: Important Pilot-24 Lite Safety Usage Information
Löwenstein prismaSMART. Charge time via the ResMed AirMini AC adapter is approximately 7-9 hours. For faster charging time, please use Medistrom AC Power adapter (SKU# P24ACCACA). Pilot-24 Lite can be also charged with the ResMed S9 series original AC power adapter by using the ResMed S9 short charging adapter... -
Page 10: Pilot-24 Lite Control Panel
Section 2.5 Pilot-24 Lite Control Panel 1. Charge Port Plug the compatible AC adapter into this port (use the short charging adapter cable if required). Ensure that the AC adapter is plugged into the mains power outlet. Once the battery is charging the 4 green Charge Level Indicator Lights will turn on. 2. - Page 11 Follow STEP 1 above. Charge times for the Pilot-24 Lite via the ResMed AirSense 10, S9, the Löwenstein prismaSMART or the Medistrom Pilot Lite AC adapter is approximately 2-3 hours. Charge time via the ResMed AirMini AC adapter is approximately 7-9 hours.
-
Page 12: Pilot-24 Lite Speci昀椀Cations
Backup Power Supply con昀椀guration. To use the ResMed Air Mini PAP Device in the backup con昀椀guration with Pilot-24 Lite please use Medistrom AC Power Adapter for Pilot-24 Lite (Sold separately, SKU# P24ACCACA) or the original ResMed AirSense 10 AC power adapter, or the original ResMed S9 power adapter with the short charging adapter cable, or the original Löwenstein prismaSMART AC power... -
Page 13: Storage And Disposal Of Your Pilot-12/24 Lite Battery Backup Power Supply
Failure to do this will be considered negligence and will void the warranty. Store the Pilot-12 Lite or Pilot-24 Lite in a cool, dark, well ventilated place with normal temperatures of 0 °C / 32 °F to 35 °C / 95 °F. CAUTION! Keep out of direct sunlight! The disposal of this unit should be carried out in accordance with applicable laws and regulations re昀氀ecting the purchaser’s geographic location. -
Page 14: Warranty Information
Please contact your CPAP battery dealer for any warranty related issues or you can contact Medistrom technical support by emailing support@medistrom.com. Medistrom guarantees that Pilot-12 Lite or Pilot-24 Lite Battery Backup Power Supply shall remain free from manufacturer defects for twelve months from the date of purchase. - Page 15 Do not attempt to use the battery in operate safely temperatures exceeding 40° C / 104° F Blue LED 昀氀ashing Incorrect AC Pilot-12 Lite: use the AC adapter provided accompanied by adapter being with your Respironics DreamStation or short (500ms) and...
-
Page 16: Serial Number
Please allow the battery to cool down for 10- 20min and try charging your battery again. If errors persist after taking the recommended action(s) contact Medistrom technical support toll-free at 1-888-407-4791 (North America), 1-300-146-358 (Australia) or via email at support@medistrom.com. Do not disassemble the device or attempt to service the device yourself.
