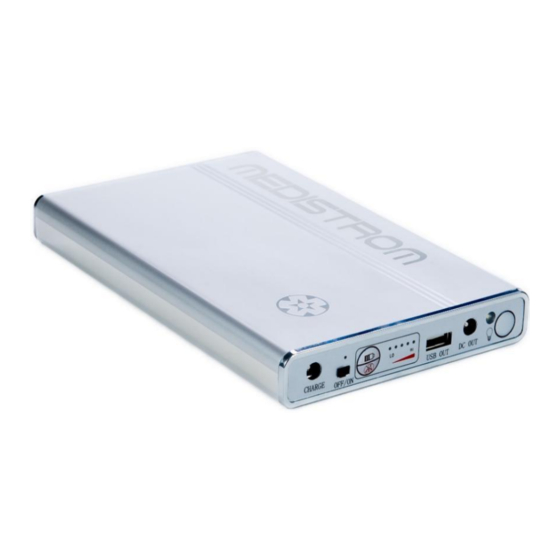

Pilot-12 Plus
Pilot-24 Plus
CPAP BATTERY / BACKUP POWER SUPPLY
CPAP BATERIA / ALIMENTACIÓN PORTÁTIL USTED
BATTERIE CPAP / ALIMENTATION PORTABLE
ENGLISH - Thank you for purchasing MEDISTROM Pilot-12 Plus/Pilot-24 Plus CPAP
Battery /Portable Power Supply. Please read this product user guide carefully before
putting the equipment into operation for the first time.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Medistrom Pilot-12 plus
Summary of Contents for Medistrom Pilot-12 plus

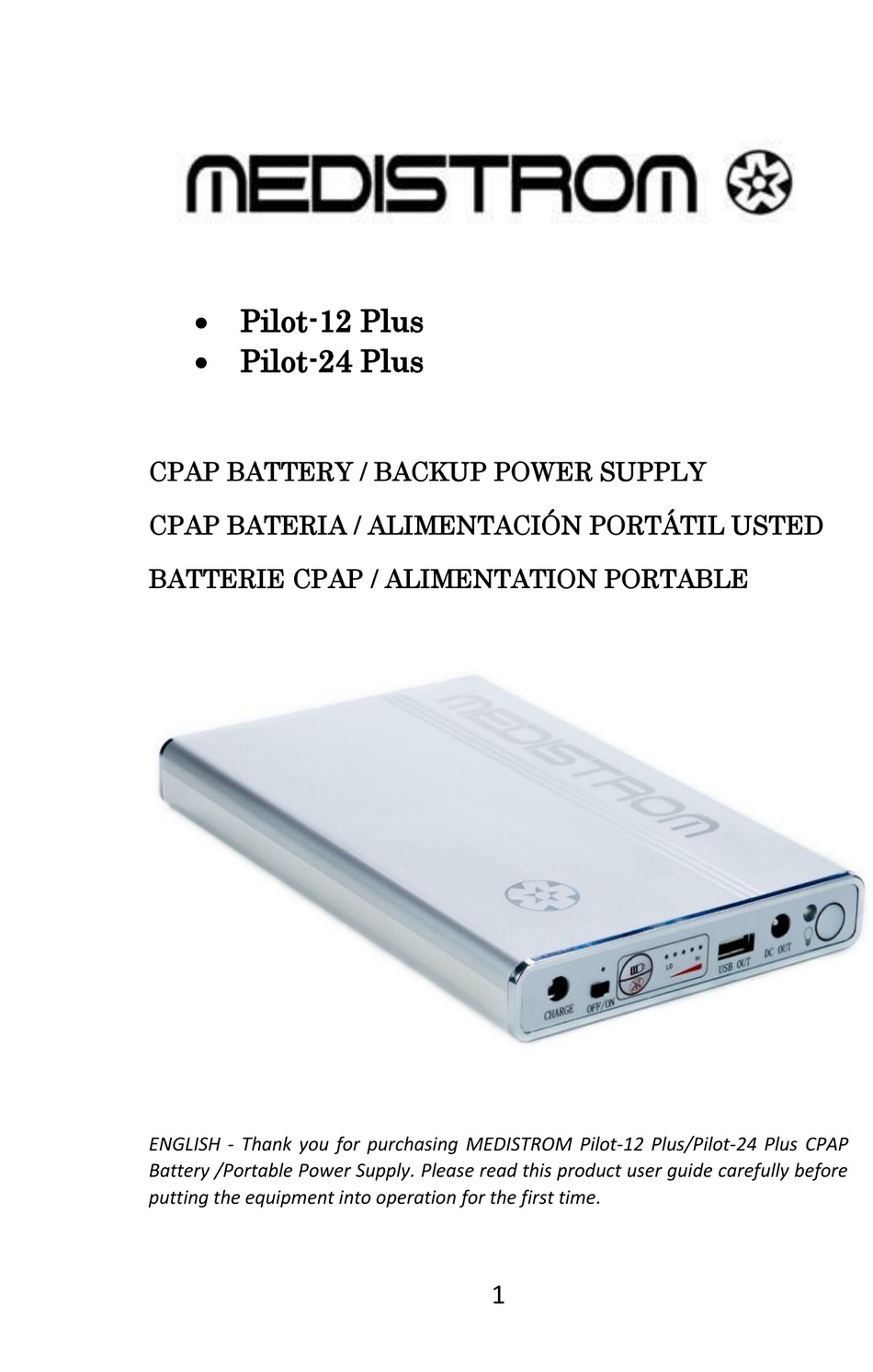

- Page 1 CPAP BATERIA / ALIMENTACIÓN PORTÁTIL USTED BATTERIE CPAP / ALIMENTATION PORTABLE ENGLISH - Thank you for purchasing MEDISTROM Pilot-12 Plus/Pilot-24 Plus CPAP Battery /Portable Power Supply. Please read this product user guide carefully before putting the equipment into operation for the first time.
- Page 2 ENGLISH – page 3 ESPAÑOL – página FRANÇAIS – page 48...
-
Page 3: Table Of Contents
........................19 SECTION 6 - WARRANTY Pilot-24 Plus / Pilot-12 Plus ......... 19 SECTION 7 - STORAGE AND DISPOSAL: Pilot-24 Plus / Pilot-12 Plus ..20 SECTION 8 - WARNINGS AND SAFETY PRECAUTIONS: Pilot-24 Plus / Pilot- 12 Plus ......................20... -
Page 4: Section 1 - Pilot-24 Plus
SECTION 1 - PILOT-24 PLUS 1.1 PACKAGE CONTENTS: Pilot-24 Plus A. CPAP Battery B. Output cable for ResMed S9™ C. Output cable for ResMed AirSense™ 10 D. Connector Tip for ResMed S9™ Original Power Adapter E. Battery sleeve ****** SOLD SEPARATELY ****** F. -
Page 5: Important
1.2 IMPORTANT! Using Pilot-12 Plus/ Pilot-24 Plus as Portable CPAP Battery with humidifier will significantly decrease run times! For optimal run times please disconnect the humidifier! DO NOT Expose battery to temperatures above 40 ° C / 104 °... -
Page 6: Control Panel: Pilot-24 Plus
1.4 CONTROL PANEL: Pilot-24 Plus 1. CHARGE 2. OFF/ON SWITCH 2a - OFF/ON indicator light 3. CHARGE LEVEL INDICATOR 3a - discharge level indicator button 3b - warning light is the far left LED 3c - 4 charge indicator lights 3d - LO to HI charge level indicator image 4. - Page 7 included with the Pilot-24 Plus. It is provided with the ResMed S9™ PAP device) plug the Connector Tip (D) into the ResMed S9™ Original Power Adapter. Plug the other end of the Connector Tip (D) into the battery’s CHARGE port. Ensure that the other end of the ResMed S9™...
-
Page 8: Instructions For Use: Pilot-24 Plus
5. DC OUT: This port is used to connect a PAP device to the battery. First, select the proper output cable for the PAP device being used. Select Output Cable (B) for ResMed S9™, or Output Cable (C) for ResMed AirSense™ 10. Attach one end of the output cable to the PAP device and plug the other end into the “DC OUT”... -
Page 9: Using With Pap Device As A Portable Battery
other end of the ResMed AirSense™ 10 Original Power Adapter is plugged in to the mains power outlet. Please note: The battery can be charged regardless of whether or not the battery is switched ON or OFF. If the battery is charging properly, the 4 green charge indicator lights (3c) will flash, and will light up solid green once it is fully charged. -
Page 10: Using With Pap Device As A Backup Power Supply
with the heated humidifier and is used with the battery, the battery run time may be significantly decreased. Use DC OUT port to connect the PAP device to the battery. First, select the proper output cable for the PAP device being used. Select Output Cable (B) for ResMed S9™, or Output Cable (C) for ResMed AirSense™... -
Page 11: Car Charger For Pilot-24 Plus Instructions
1.7 CAR CHARGER FOR PILOT-24 PLUS INSTRUCTIONS: Step 1: Plug End 1 of the Medistrom™ Car Charger into the 12 V car cigarette lighter socket and End 2 into the 24 V converter. Step 2: NOTE! Please use your Output Cable for ResMed AirSense™... -
Page 12: Section 2 - Pilot-12 Plus
SECTION 2 - PILOT-12 PLUS 2.1 PACKAGE CONTENTS: Pilot-12 Plus A. CPAP Battery B. 90W battery charger C. General output cable and D. Two connector tips (choose the tip that fits the PAP device being used with the battery) E. Battery sleeve F. -
Page 13: Important
Pilot-12 Plus can serve as a portable CPAP battery during travel by air, land or sea when the mains power source is unavailable. Pilot-12 Plus also comes with a USB port which can be used to charge cellphones and other commonly used handheld devices. -
Page 14: Control Panel: Pilot-12 Plus
2.4 CONTROL PANEL: Pilot-12 Plus 1. CHARGE 2. OFF/ON SWITCH 2a - OFF/ON indicator light 3. CHARGE LEVEL INDICATOR 3a - discharge level indicator button 3b - warning light is the far left LED 3c - 4 charge indicator lights 3d - LO to HI charge level indicator image 4. - Page 15 the OFF position before storing the battery. CAUTION: FULLY CHARGE BATTERY BEFORE STORAGE AND EVERY 6 MONTHS! 3. CHARGE LEVEL INDICATOR: By pressing the charge level indicator button (3a) the charge level of the battery can be checked. The green LED (3c) will light up for 4 seconds showing the battery charge level, while battery is powering your PAP device.
-
Page 16: Instructions For Use: Pilot-12 Plus
2.5 INSTRUCTIONS FOR USE: Pilot-12 Plus A. Charging the battery Plug the 90W battery charger (B) into the battery’s CHARGE port. Ensure that the other end of the charger is plugged in to the mains power outlet. -
Page 17: Product Specifications: Pilot-12 Plus
Step 2 – Connect the battery to PAP device and turn battery ON (see instructions above on using with PAP device as portable battery) 2.6 PRODUCT SPECIFICATIONS: Pilot-12 Plus • Model Name: Pilot-12 Plus • Capacity: 98 Wh •... -
Page 18: Car Charger For Pilot-12 Plus Instructions
INCREASE THE RUN TIME OF PILOT-24 PLUS / PILOT-12 PLUS Pilot-24 Plus and Pilot-12 Plus can be used with an add-on unit Co- Pilot-24 and Co-Pilot-12. Using Co-Pilot will increase the CPAP battery run times. Please refer to the diagram below in order to set up dual configuration. -
Page 19: Section 4 - Care Instructions: Pilot-24 Plus / Pilot-12 Plus
SECTION 4 - CARE INSTRUCTIONS: PILOT-24 PLUS / PILOT-12 PLUS Do not expose the Pilot-12 Plus/Pilot-24 Plus to liquids of any kind. Keep out of direct sunlight. If your unit becomes soiled, disconnect from both the power source and the PAP device and wipe the exterior casing with a clean, dry cloth. -
Page 20: Section 7 - Storage And Disposal: Pilot-24 Plus / Pilot-12 Plus
Pilot-12 Plus / Pilot-24 Plus must be fully charged before storage. Pilot-12 Plus/ Pilot-24 Plus must be fully recharged every 6 months thereafter. Store the Pilot-12 Plus / Pilot-24 Plus in a cool, dark, well ventilated place with normal temperatures of 0 °... - Page 21 The operator shall be solely responsible for any modifications to the equipment and for connecting any cables or equipment not supplied by Medistrom. Do not allow liquids to enter the device. Keep out of reach of children.
-
Page 22: Section 9 General Troubleshooting
10% - 40% LEDs capacity remaining Green LEDs Battery is charging flashing Error Codes Yellow and Battery has Contact Medistrom green LEDs entered over- technical support alternate flashing discharge protection to prevent damage to the cells. ... - Page 23 Yellow LED Ensure that the flashing (slowly) environmental battery is placed where temperature is too there is no excess high for the battery heat. Do not rest the to operate safely battery on top of radiators or electronic devices that may emit heat.
- Page 24 Pilot-12 or Pilot-24 you are using If errors persist after taking the recommended action contact Medistrom technical support toll-free at 1-888-407-4791 or via email at support@choiceonemedical.com. Do not open the device or attempt to service the device yourself.
