INSTALLING THE EK-LOOP ANGLED BRACKET ONTO THE RADIATOR

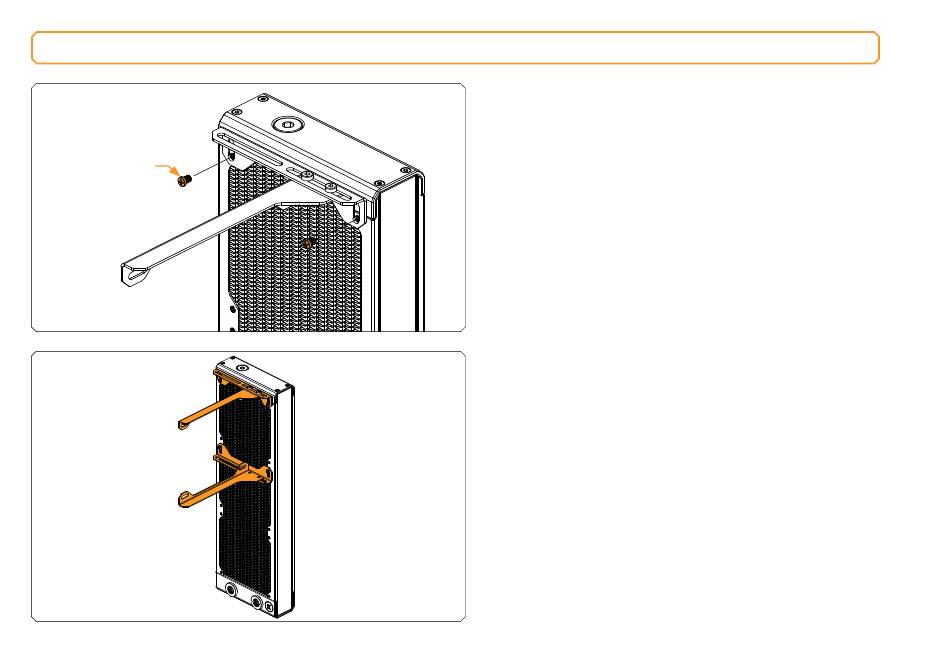

EK-Loop Angled Bracket - 120/140 mm can be mounted onto the
120 mm format radiator using the M4 x 5 mm Phillips head radiator
mounting screws (as shown in the picture). There is no need for
additional nuts, just tighten the screws evenly and do not use
excessive force.
M4 x 5mm
PHILLIPS HEAD
SCREW
You can mount the bracket on each side of the radiator. On 240,
360 and 480 mm radiators, the bracket can also be attached to the
middle holes.
As the installation of the 140 mm format reservoir onto the 120 mm
format radiator requires the full use of the slots on the base bracket,
the possibilities of installation are limited.
We reccommend using bigger radiator than the reservoir for the
use of this angled bracket configuration – example of 280 size
reservoir and 360 size radiator shown in chapter: ATTACHING
THE RESERVOIR TO THE EK-LOOP ANGLED BRACKET.
