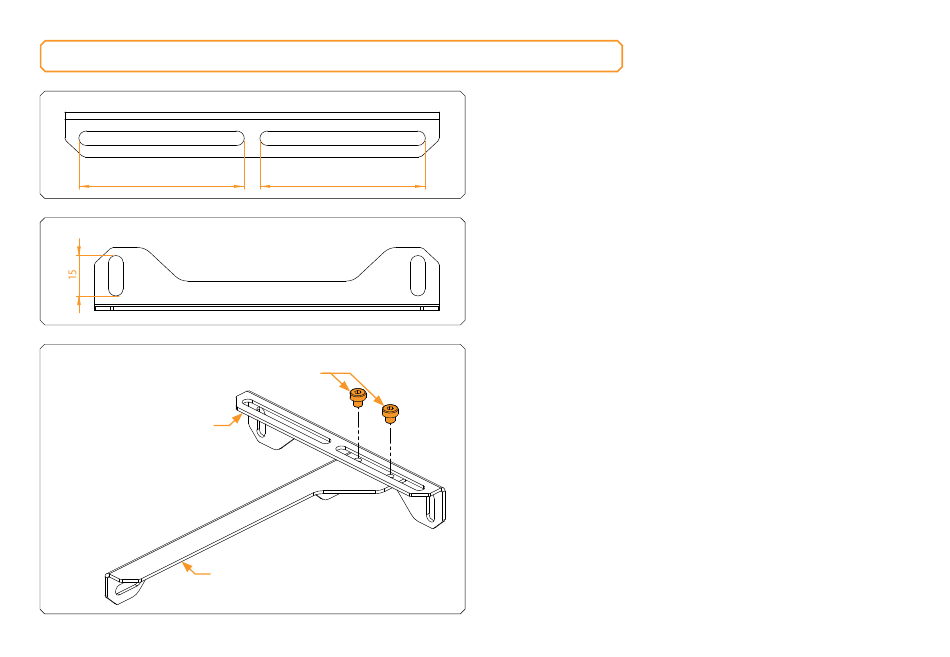

ASSEMBLING THE EK-LOOP ANGLED BRACKET

50mm
M4 x 4 DIN 7984 SCREWS
EK-LOOP ANGLED
BRACKET BASE – 120 mm
EK-LOOP ANGLED BRACKET – SIDE
PART – 140 mm
EK-Loop Angled Bracket base piece has four slot holes that allow
adjustability. Larger slot holes will enable adjusting of the bracket's
position (50 mm on each side). Side pieces can be screwed into the
base through one of the slots or both of them.
50mm
Smaller slot holes on the side allow for adjusting the position of the
bracket on the radiator.
For the assembly of the EK-Loop Angled Bracket – 120/140 mm,
use M4 x 4 DIN 7984 screws (as shown in the picture). Side parts
already have threaded holes, so there is no need for additional
washers and nuts.
