MV LINE CLARA 015 Installing Instructions

The installation of the insect screen should be made by qualified personnel following the instructions listed below.
Use screws or anchors suitable for the type of wall on which the insect screen will be installed. Make sure that the jambs are parallel and at right-angle; in case of out of
square walls make the necessary adjustments to ensure parallelism to the profiles of the insect screen.

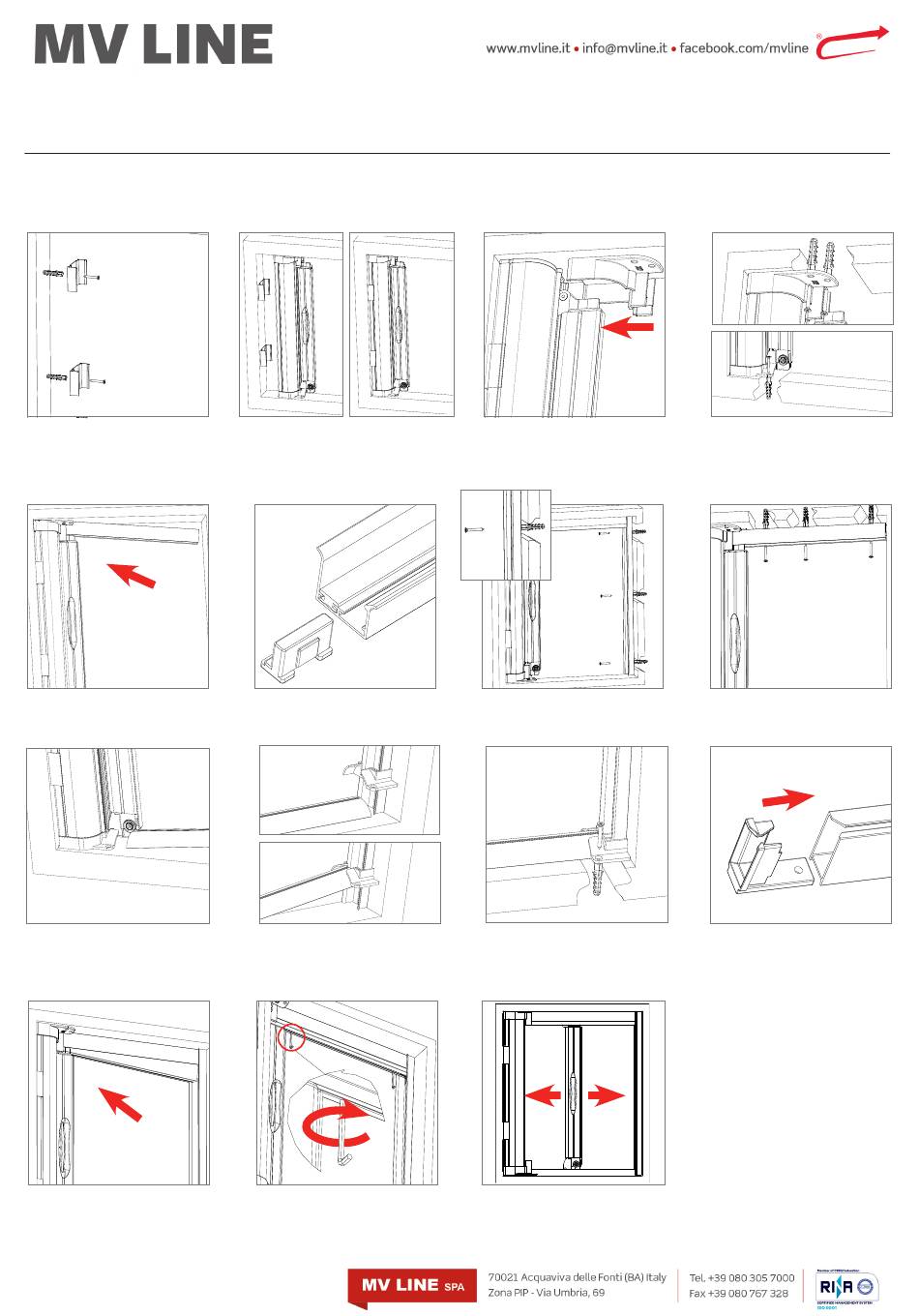

1
Fix the clips to the wall. We
recommend it for big dimen-
sions.
5
Insert the compensating profi-
le in the upper end-cap.
9
Insert the lower rail in the end-
cap.
13
Insert the guide in the com-
pensating profile.
CLARA 015
INSTALLING INSTRUCTIONS
2
Join the box the the brackets and
press until you hear a click.
6
Insert the lower latch-guide in
the closure profile.
10
Place the latcht-guide, lift
up the lower rail to fasten
them, then put down the
lower latch guide.
14
Adjust the screws with a
wrench to correct the pos-
sible upper irregularities of
the walls.
3
Insert the upper end-cap to
the box.
7
Place the closure profile and
fix it.
11
Fix the latch-guide.
15
Verify the proper operation
of the insect screen.
4
Fix the upper and lower end-
caps.
8
Fix the compensating profile
throught the prepared hole.
12
Insert the upper conveyer
in the guide.
