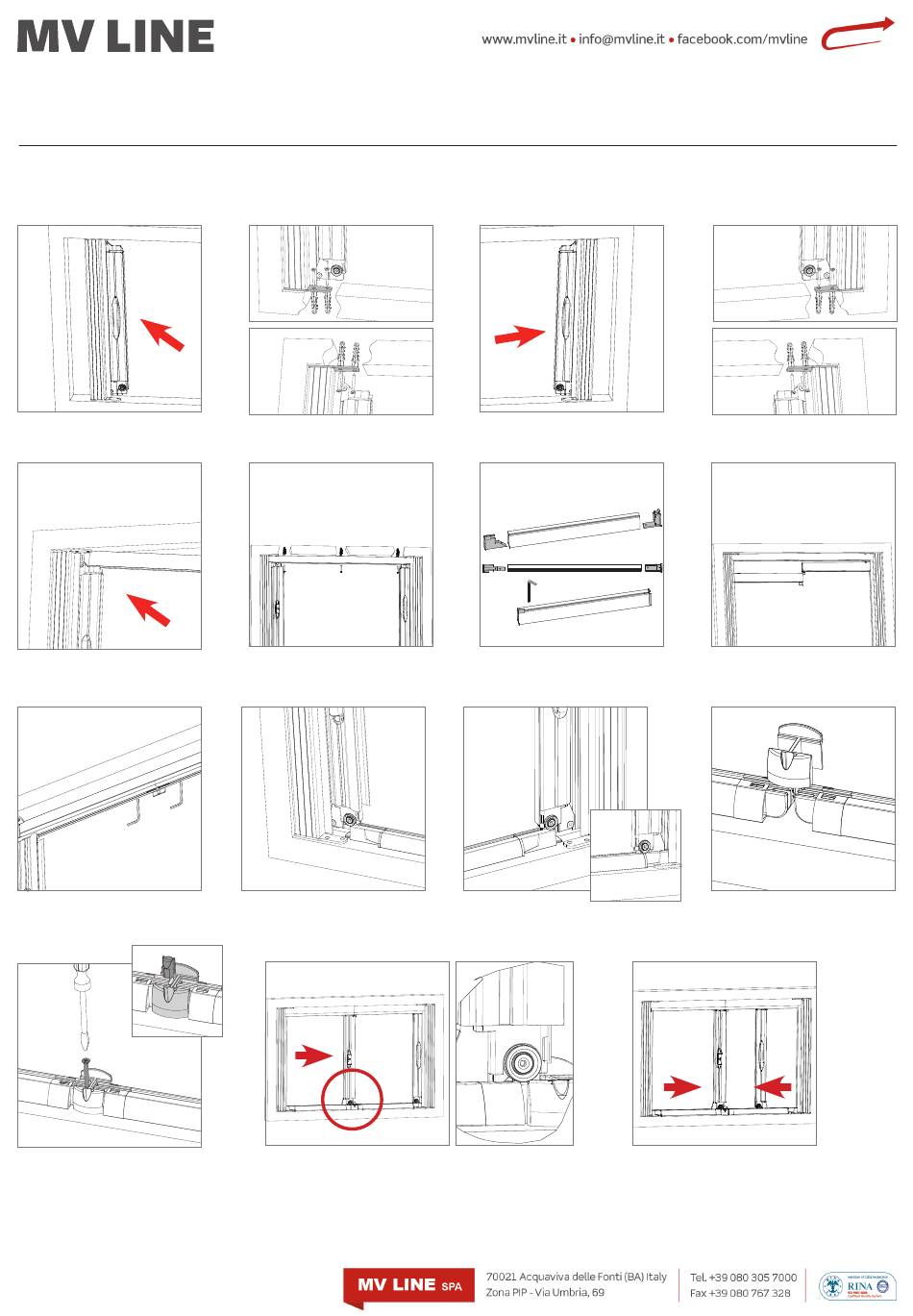

MV LINE CLARA 40 DOUBLE Installing Instructions

The installation of the insect screen should be made by qualified personnel following the instructions listed below.
Use screws or anchors suitable for the type of wall on which the insect screen will be installed. Make sure that the jambs are parallel and at right-angle; in case of out of
square walls make the necessary adjustments to ensure parallelism to the profiles of the insect screen.
1
Insert the first box in the
compartment.
5
Insert the compensating pro-
file in the upper cap.
9
Adjust the guides.
13
Adjust the locking unit. Insert
the cap respecting the direc-
tion.
CLARA 40/50 DOUBLE
INSTALLING INSTRUCTIONS
2
Fix the lower and upper cap.
6
Hook the compensating profi-
le in the second box, too and
fix it.
10
Insert the left lower rail in
the cap.
14
Verify the proper operation of the ratchet.
3
Insert the other box in the
compartment.
7
Insert the lock for lower rail
respecting the direction (thin
part outside).
11
Insert le right lower rail in the end-
cap.
15
4
Fix the lower and upper cap.
8
Insert the right and left upper
guides and join them.
12
Join the lower guides with
the joint.
Verify the proper opera-
tion of the insect screen.
