1
Insert the side guides in the winglets
of the caps.
4
Insert the inner guide and ensure that the zip enter the plastic scroll profile.
6
Verify the proper functioning.

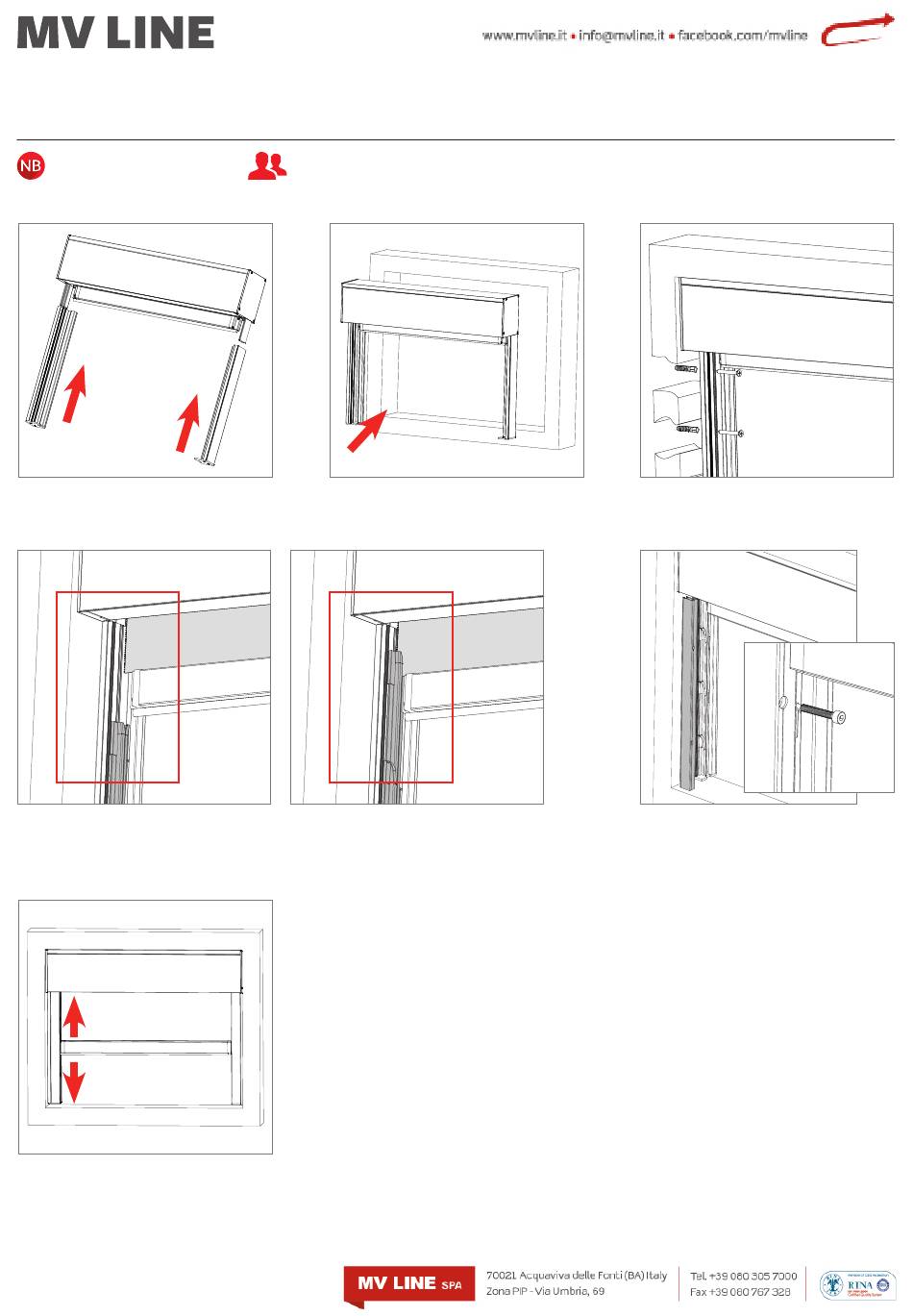

EVO ZIP
INSTALLING INSTRUCTIONS
The installation of the flyscreen should be made by two persons at least and qualified personnel following the
instructions listed below. Use screws or anchors suitable for the type of wall on which the flyscreen will be instal-
led. Make sure that the jambs are parallel and at right-angle; in case of out of square walls make the necessary
adjustments to ensure parallelism to the profiles of the flyscreen.
2
Place the structure in the window
frame.
3
Fix the side guides using the proper
holes.
5
Place the latch-guide profile and fix it
with the proper screws in the arran-
ged holes.
