Summary of Contents for Avidsen 123882

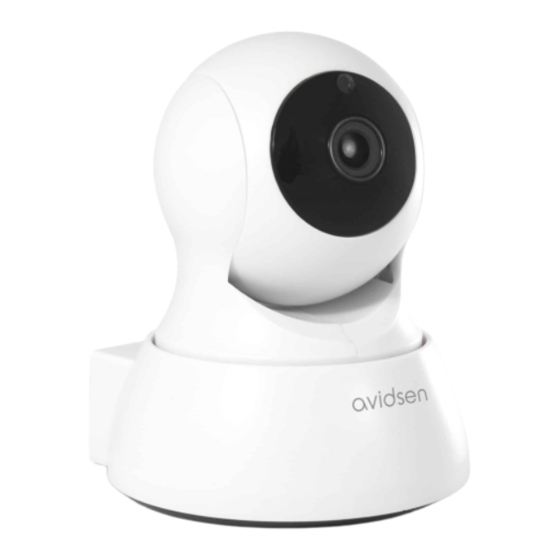

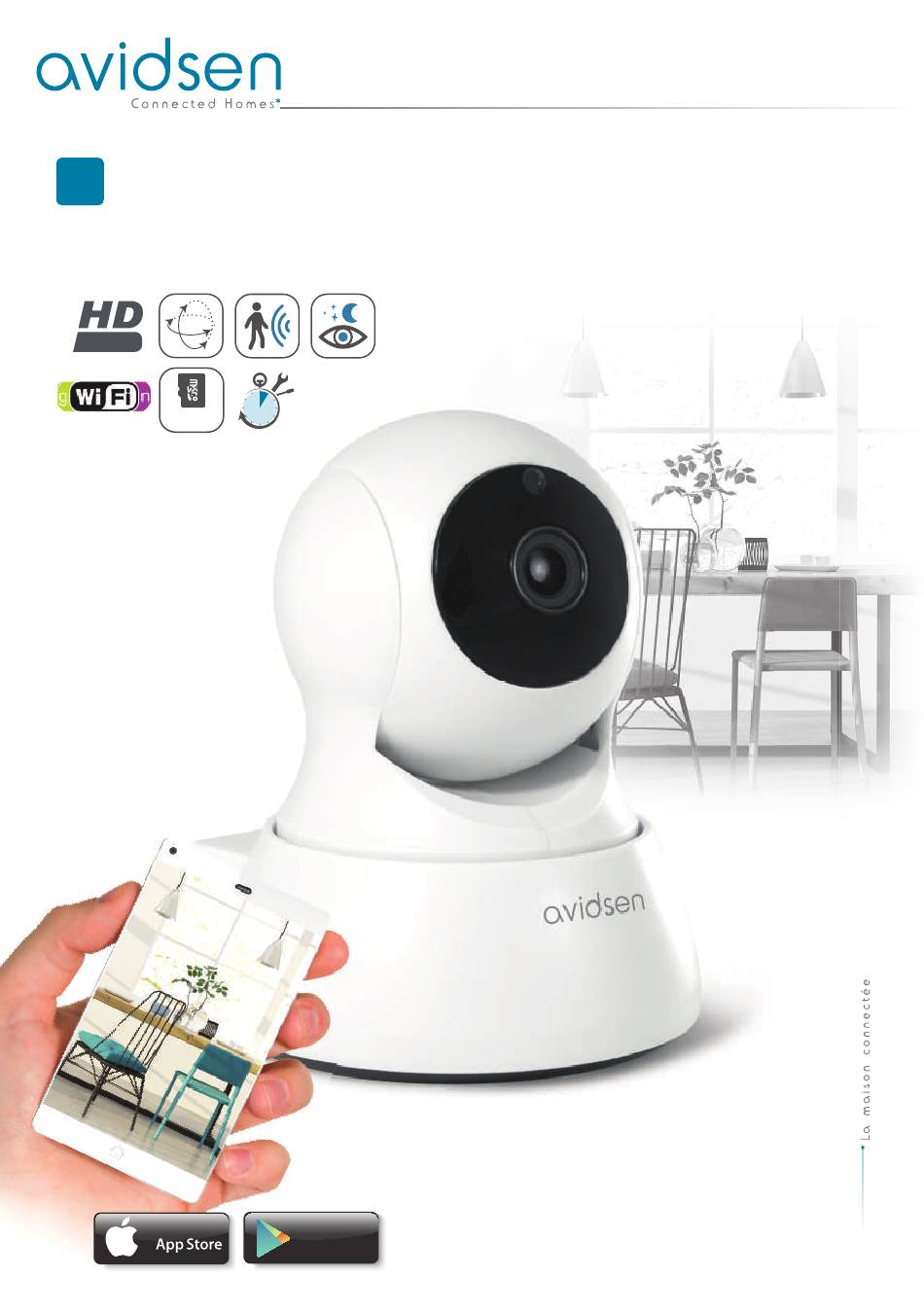

- Page 1 Indoor rotating 720P IP Wi-Fi camera ref. 123882 720p 2.4 GHz •REC (Not included) Available on the Available on the Free available on Free available on Free available on Google Play Google Play www.avidsen.com...
-
Page 2: Table Of Contents
CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - MAINTENANCE AND CLEANING 3 - RECYCLING B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 2 - CAMERA 3 - MAINS ADAPTOR C - INSTALLATION 1 - INSTALLING THE CAMERA 2 - CONNECTING THE CAMERA 3 - INSERTING A MICRO SD CARD (NOT INCLUDED) D - CONFIGURATION... - Page 3 ROTATING 720P IP WIFI CAMERA F - RESETTING G - FAQ H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2 - WARRANTY 3 - HELP AND ADVICE 4 - PRODUCT RETURNS/AFTER-SALES SERVICE 5 - DECLARATION OF CONFORMITY...
-
Page 5: A - Safety Instructions
ROTATING 720P IP WIFI CAMERA A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • The cameras must not be installed where the This logo denotes that devices which are lens filter may be vulnerable to scratching and no longer in use must not be disposed of dirt. -
Page 6: B - Product Description
ROTATING 720P IP WIFI CAMERA B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT USB cable for powering the camera Camera Wall plugs for attaching the base Wall mounting Screws for attaching the base 230 V A/C 50Hz mains adaptor / 5 V D/C 1A Narrow tool for WiFi reset 2 - CAMERA Front view... -
Page 7: Mains Adaptor
ROTATING 720P IP WIFI CAMERA B - PRODUCT DESCRIPTION 3 - MAINS ADAPTER A 230 V A/C 50 Hz / 5 V D/C 1A mains adapter for powering the camera is included in the kit. Do not use other power supplies as they could damage the camera and invalidate the warranty. -
Page 8: C - Installation
ROTATING 720P IP WIFI CAMERA C - INSTALLATION 1 - INSTALLING THE CAMERA • Mount the camera using suitable screws and wall plugs for the type of surface (the screws and plugs supplied are suitable for solid walls). • Make sure the camera is properly secured to prevent it from falling. •... - Page 9 ROTATING 720P IP WIFI CAMERA C - INSTALLATION • Ensure the camera lens is perfectly horizontal before inserting a micro SD card. Note: These operations must be carried out with the camera disconnected from the mains power supply.
-
Page 10: D - Configuration
ROTATING 720P IP WIFI CAMERA D - CONFIGURATION 1 - CONFIGURING THE CAMERA AND Fill in the “E-mail” [Email] and “Mot de passe” ADDING IT TO THE APP [Password] fi elds E-mail: “indiquez une adresse e-mail valide” [enter a valid email address]. Download the Avi-cam IP application from Mot de passe [Password]: choose a personal... -
Page 11: Access To All Settings
ROTATING 720P IP WIFI CAMERA D - CONFIGURATION Return to the list of cameras Accessing camera information (name, IP, MAC, Version, etc.) Enables/disables the green status LED on the camera Enables image inverting Configuration menu for movement detection alerts Configuration menu for recording quality on the micro SD card Your camera will appear in the list and you can Implementing a locking scheme to protect... -
Page 12: Motion Detection And Alerts
ROTATING 720P IP WIFI CAMERA D - CONFIGURATION (iOS) Return to the list of cameras Menu to rename your camera Allows you to add information about your camera, location, owner, (useful if you share your camera with a guest account) Displays your camera's current IP address Displays your camera's current MAC address (Android) -
Page 13: Settings For Recording On The Micro Sd Card
ROTATING 720P IP WIFI CAMERA D - CONFIGURATION 2.4 - Settings for recording on the micro SD card To access the recording on the micro SD card menu, click on the icon on the camera, and press “Stockage vidéo” [Video storage]. Return to the list of cameras Enable/disable continuous recording on micro SD card (not included) -
Page 14: E - Operation
ROTATING 720P IP WIFI CAMERA E - OPERATION 2 - PLAYING CAMERA RECORDINGS From the list of cameras , click on the “relecture” [playback] button under the camera name. Select the date and time to view the corresponding video. *Confi rm with OK (android) List of cameras Alerts Profi les menu and local recording... -
Page 15: Playing Alert Videos
ROTATING 720P IP WIFI CAMERA E - OPERATION Return to the list of cameras Enables full-screen mode Video viewing Video progress bar Triggers video recording (stored on your smartphone) Starts playing the alert recording Trigger taking a picture (stored on your smartphone) Note: During live viewing, you can take photos or record the video on your Smartphone. -
Page 16: Album Management
ROTATING 720P IP WIFI CAMERA E - OPERATION Pressing “gestion contenu” [content management] displays new Options Exits the content management menu Selects all available content Changing your password and confi guring password recovery options in case of Pressing an image or video selects or forgotten password (security... - Page 17 - If your Android device has an SD card: SD card / Avidsen / screenshot / name of your account / - If your Android device doesn't have an SD card:...
-
Page 18: F - Resetting
ROTATING 720P IP WIFI CAMERA F - RESETTING If a problem occurs, the WiFi configuration can be reset by holding the SET button for 3 to 5 seconds. Once reset, the camera will start up again. After 30 seconds, it is available for reconfiguration. Note: Pressing the SET button does not delete the camera pairing from your account. -
Page 19: G - Faq
ROTATING 720P IP WIFI CAMERA G - FAQ Symptoms Possible causes Solutions Please contact the technical You have an out-of-date or support of your device's incompatible version of Android manufacturer in order to obtain a on your device recent Android version. Unable to install the avi-cam IP Google Play checks all the key app from my Android device... - Page 20 ROTATING 720P IP WIFI CAMERA G - FAQ Symptoms Possible causes Solutions Check the video settings and Poor quality or shaky image Incorrect video settings reduce/increase the quality if necessary Movement detection is triggered Unsuitable movement detection Reduce the sensitivity of unnecessarily settings detection.
-
Page 21: H - Technical And Legal Information
ROTATING 720P IP WIFI CAMERA H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS Camera 5V DC / 1A Power supply Wireless network interface WiFi IEEE 802.11 g/n 2.4Ghz WPA/WPA2 compatible ¼’’ CMOS Optical sensor Minimum luminous intensity 0 lux Automatic (dusk-to-dawn sensor) Night vision Range: 10m... -
Page 22: Product Returns/After-Sales Service
5 - DECLARATION OF CONFORMITY Per the RED directive Smarthome France hereby declares that the equipment designated below: 720P outdoor WiFi IP camera 123882 Complies with the RED directive and its conformity has been assessed pursuant to the applicable standards in force:... - Page 24 SmartHome France 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
