Extel Umii XC500 Quick Start Manual

XC500
EN
ELECTRIC GATE
OPENER KIT
V1
For sliding gates
Ref. 761004
Thank you for purchasing an EXTEL automatic gate opener.
This document is a quick start guide detailing the main installation steps as well as the equipment required. To perform the installation, please
download the installation manual at the following address: www.avidsen.com
Warning: The safety instructions and installation instructions can be found in the installation manual. Follow all these instructions, as an
incorrect installation can cause serious injuries.

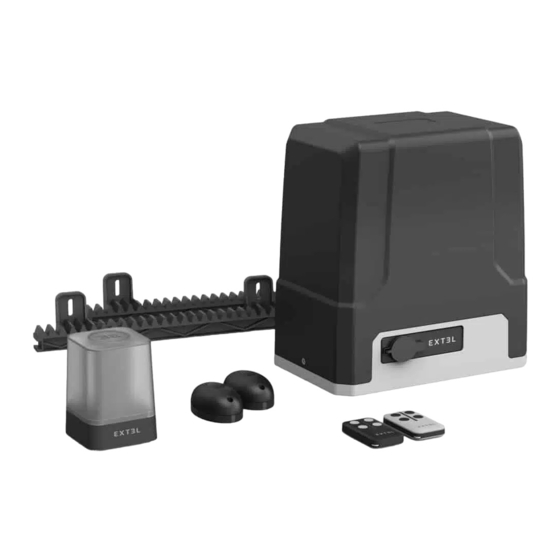

1. DESCRIPTION

1 2
x 1
6 6 6 6
x 1 x 6 x 6 x 4
1
24 V geared motor
2
50cm rack and screws
3
Flashing light and screws
4
Remote control

2. EQUIPMENT REQUIRED (NOT SUPPLIED)

The tools and screws required for the installation must be in good condition and compliant with applicable safety standards. Please use screws compatible with
the bracket to which the motors will be attached (e.g. anchoring studs, threaded rod with chemical seal, etc.).
2 2
x 8 x 12 x 12
7
x 1
5
Release key
6
Photocells and their screws
7
Disengagement label
Flashing light
3m cable
2 x 0.5mm 2
3 3 3
x 1 x 2 x 2
8
x 1
8
9
10
Motor Photocells
8m cable 10m cable
2 x 1.5mm 2 4 x 6/10
4 5
x 2
9 10
x 1
Accessory for solar kit
Installation template
Backup fuses
ø6mm
x 2
x 2
