Dynabrade 47200 Safety, Operation And Maintenance Manual

For Serial No. 11L3552A and Higher
.4 hp Die Grinder
Ergo-Grip, Rear Exhaust
Model RPM Collet Style Muffler Insert Size
47200 950
47201
3,200
47202 5,000
FIND THE MOST CURRENT OFFERING OF SUPPORT DOCUMENTS AND ACCESSORIES AT WWW.DYNABRADE.COM
Read and understand this tool manual before operating your air tool. Follow all safety rules for the protection of operating personnel
as well as adjacent areas. Always operate, inspect and maintain this tool in accordance with the American National Standards
Institute (ANSI) Safety Code for Portable Air Tools – B186.1. For additional safety information, refer to Safety Requirements for the
Use, Care and Protection of Abrasive Wheels – ANSI B7.1, Code of Federal Regulation – CFR 29 Part 1910, European Committee for
Standards (EN) Hand Held Non-Electric Power Tools – Safety Requirements and applicable State and Local Regulations.
Read and understand tool manual before
work starts to reduce risk of injury to
operator, visitors, and tool.
Eye protection must be worn
at all times, eye protection to
conform to ANSI Z87.1.
Respiratory protection to be used when
exposed to contaminants that exceed the
applicable threshold limit values required by law.
Some dust created by sanding, grinding, drilling, and other construction activities contain chemicals known to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
Carefully Read all instructions before operating or servicing any Dynabrade
modified, converted or otherwise altered from the original design.
Tool Intent: .4 hp Die Grinder is ideal for deburring, deflashing, surface preparation, cleaning and finishing using the proper abrasive stones, abrasive
mounted wheels, molded abrasives, and carbide burrs.
This power tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electrical power.
Training: Proper care, maintenance, and storage of your air tools will maximize their performance.
• Employer's Responsibility – Provide .4 hp Die Grinder operators with safety instructions and training for safe use of tools and accessories.
Air Tool Manual – Safety, Operation and Maintenance
SAVE THIS DOCUMENT, EDUCATE ALL PERSONNEL
3 Piece Extended 1/4" & 6 mm
3 Piece Extended 1/4" & 6 mm
3 Piece Extended 1/4" & 6 mm
SAFETY LEGEND
WARNING
WARNING
WARNING

SAFETY INSTRUCTIONS

Do Not use tool for anything other than its intended applications.
WARNING
Practice safety requirements. Work alert,
have proper attire, and do not operate tools under
the influence of alcohol or drugs.
Ear protection to be worn when exposure to sound,
exceeds the limits of applicable Federal, State or
local statues, ordinances and/or regulations.
Air line hazard, pressurized supply lines and flexible
hoses can cause serious injury. Do not use damaged,
frayed or deteriorated air hoses and fittings.
WARNING
® Abrasive Power Tool. Products offered by Dynabrade are not to be
(continued on next page)
November, 2016
Supersedes PD12.02
WARNING
WARNING
WARNING
PD12.02R

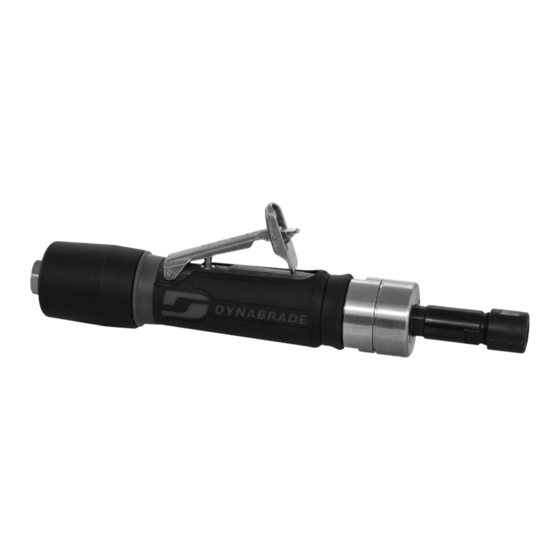

Model 47201
