Models:
52210 – 15,000 RPM, 1/4"
52211 – 18,000 RPM, 1/4"
52212 – 20,000 RPM, 1/4"
52213 – 24,000 RPM, 1/4"
52260 – 15,000 RPM, 6mm
52261 – 18,000 RPM, 6mm
52262 – 20,000 RPM, 6mm
52263 – 24,000 RPM, 6mm

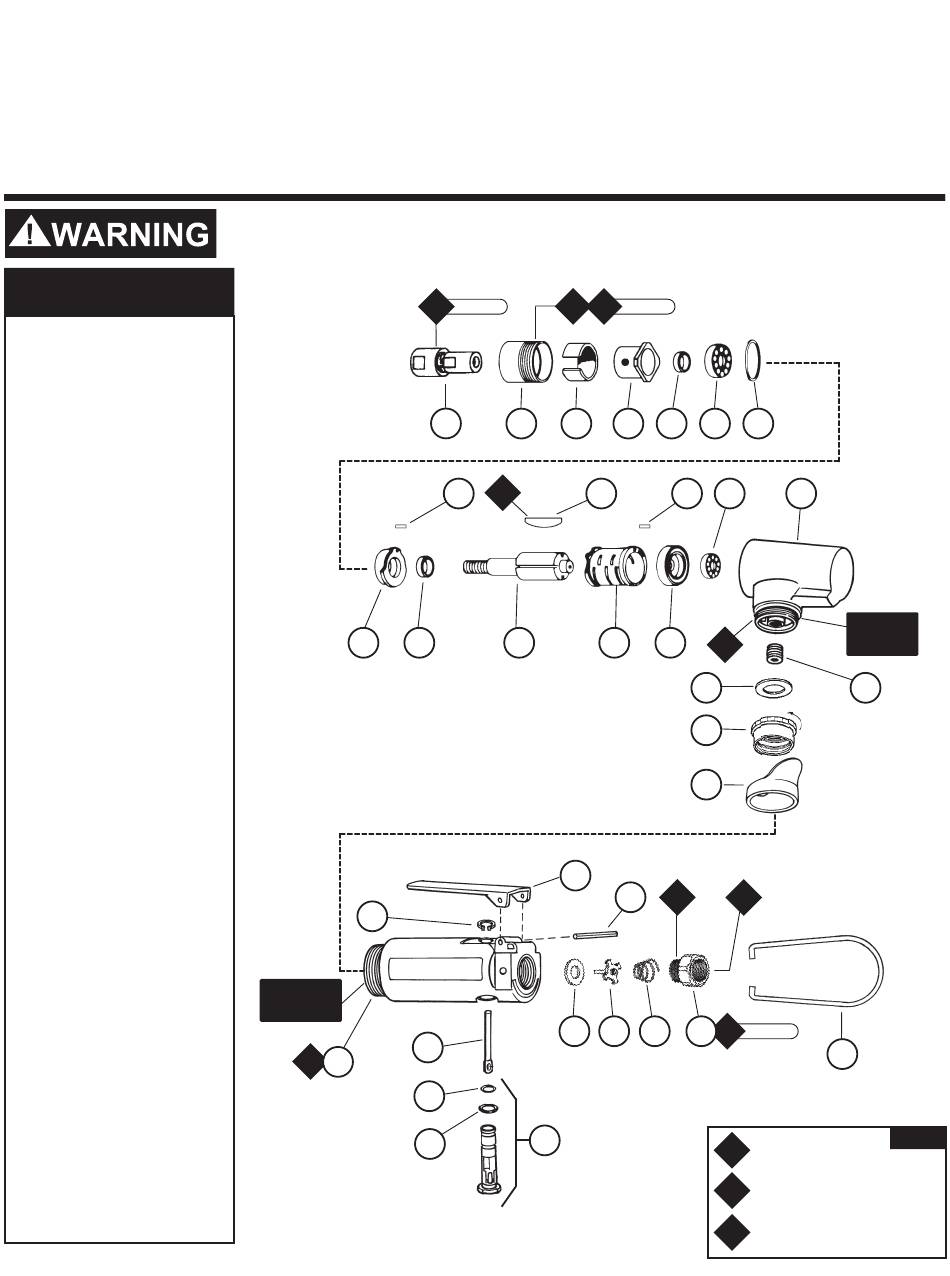

No. Part Description
50010
1
1/4" Collet Assembly
50015
6mm Collet Assembly
04087
2
Lock Ring
04078
3
Fabric Silencer
Air Control Silencer
4
01124
15,000 RPM
01125
18,000 RPM
04084
20,000 RPM
01126
24,000 RPM
01149
5
Spacer
01007
6
Bearing
01121
7
Shim Pack (3/Pkg.)
01008
8
Bearing Plate
50767
9
Pin (2)
01010
10
Spacer
01148
11
Rotor
01011
12
Blade (4/Pkg.)
01013
13
Cylinder
01014
14
Bearing Plate
01015
15
Bearing
01447
16
Motor Housing
01437
17
Plug
01548
18
Gasket
01461
19
Lock Nut
01558
20
Collar
01448
21
Throttle lever
01462
Safety Lock Lever
12132
22
Pin
95558
23
Retaining Ring
Housing
24
01581
1/4", 15,000 RPM
01582
1/4", 18,000 RPM
01583
1/4", 20,000 RPM
01584
1/4", 24,000 RPM
01849
6mm, 15,000 RPM
01868
6mm, 18,000 RPM
01870
6mm, 20,000 RPM
01874
6mm, 24,000 RPM
01449
25
Valve Stem
95730
26
O-Ring
01024
27
O-Ring
01469
28
Speed Regulator Assy.
01464
29
Seal
01472
30
Tip Valve
01468
31
Spring
01494
32
Inlet Bushing
50033
33
Hanger
See reverse side for Accessories and Important Operating, Maintenance and Safety Instructions.
.5Hp/7˚/Front Exhaust/Short Shank
T
1
8
10
23
Right Hand
Threads
25
A
24
8
26
27

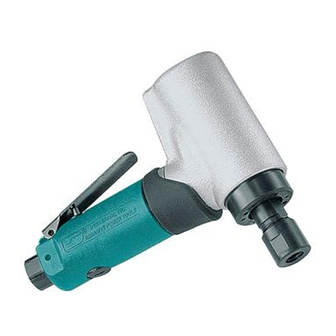

Die Grinder
A
T
17 N•m
34 N•m
8
2
3
4
O
9
12
1
11
13
21
22
29
30
28
5
6
7
9
15
16
14
A
8
18
19
20
A
O
8
1
31
32
T
23 N•m
O
O
= Air Lube
Oil:
1
A
A
Adhesive:
N•m x 8.85 = In. - lbs.
Torque:
T
Left Hand
Threads
17
33
KEY
= Loctite #567
8
Advertisement
Related Manuals for Dynabrade 52210
Summary of Contents for Dynabrade 52210
- Page 1 Models: 52210 – 15,000 RPM, 1/4" 52211 – 18,000 RPM, 1/4" .5Hp/7˚/Front Exhaust/Short Shank Die Grinder 52212 – 20,000 RPM, 1/4" 52213 – 24,000 RPM, 1/4" 52260 – 15,000 RPM, 6mm 52261 – 18,000 RPM, 6mm 52262 – 20,000 RPM, 6mm 52263 –...
- Page 2 ) is available which includes assorted parts to help maintain motor in peak operating condition. Please refer to Dynabrade’s Preventative Maintenance Schedule for a guide to expectant life of component parts. It is strongly recommended that all Dynabrade rotary vane air tools be used with a Filter-Regulator-Lubricator to minimize the possibility of misuse due to 11405 unclean air, wet air or insufficient lubrication.
- Page 3 01011 95842 Once proper rotor/gap clearance is achieved, install well lubricated Blades (4) into rotor slots. Dynabrade Air Lube P/N is recommended for lubrication. Install cylinder over rotor. Be sure air inlet holes of cylinder face away from bearing plate.
- Page 4 ® 95460 1/4" NPT (Aluminum) 50971 Lock Ring Tool Dynabrade Air Lube Lock Ring Tool has a 3/8 in. square socket Formulated for pneumatic equipment. for use with 3/8 in. drive; breaker bar, Absorbs up to 10% of its weight in water.
