3 Installation and Configuration
3.1 Cable Connections
Ref
Port Name
1
AUDIO OUT
2
AUDIO IN
3
LAN
4
I/O
5
Power
3.2 Alarm I/O Connections
Refer to the following table for detailed Alarm I/O pin information:
Pin
Name
1
ALARM_NO
2
ALARM_COM
3
ALARM_IN1
4
ALARM_IN2
5
ALARM_OUT_GND

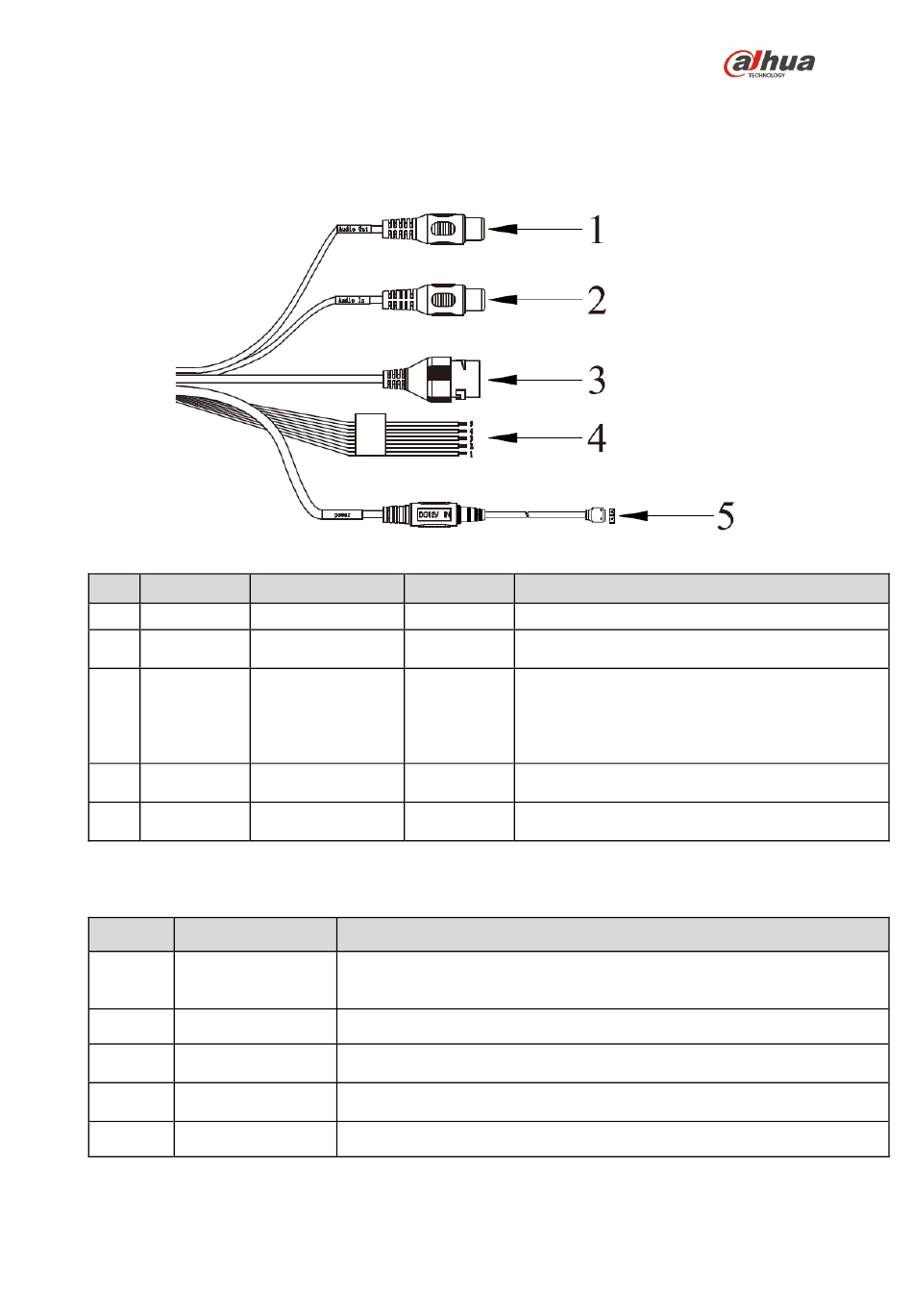

Figure 3-1
Function
Connector
Audio Output Port
RCA
Audio Input Port
RCA
Network Port
RJ-45
I/O port
-
Power Input Port
-
Note
Alarm output port. Outputs the alarm signal to the alarm device.
NO: normal open alarm output port.
It must be used with ALARM_COM.
Alarm output public port.
Alarm input port 1. Receives the on-off signal from the external alarm
source.
Alarm input port 2. Receives the on-off signal from the external alarm
source.
Ground port
Notes
Audio out from the device to an external speaker.
Audio in to receive an analog audio signal from
an external pickup.
Connect to standard Ethernet cable.
Note: Certain devices support Power over
Ethernet. Check the specific device to determine
if the device accepts PoE and use an appropriate
Ethernet cable and network to supply power.
Alarm signal input/output. Refer to the table
below more details.
Power port. Input 12 VDC power supply.
Use in accordance with device label instructions.
