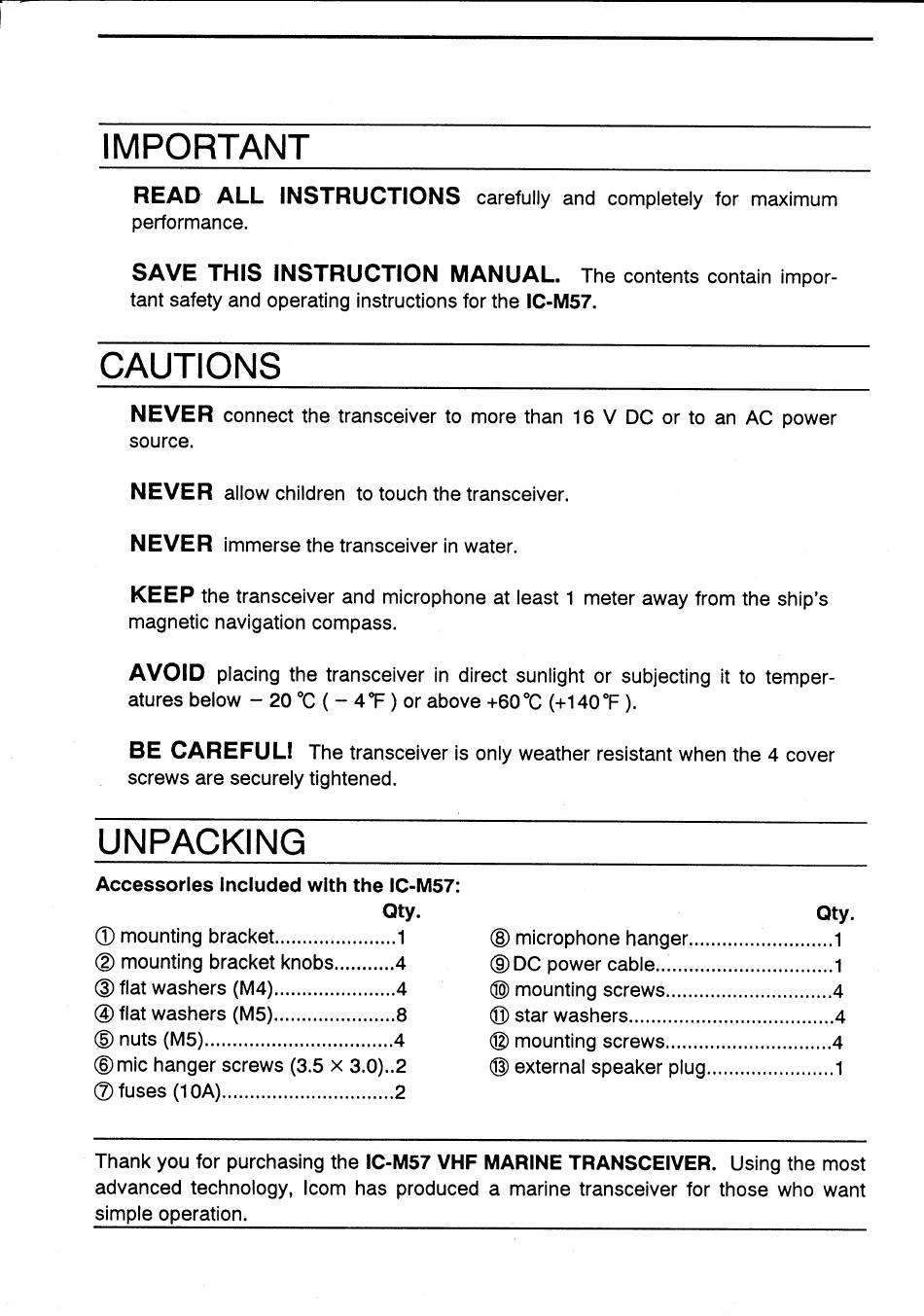

Icom IC-M57 Instruction Manual page 2

IMPORTANT
READ ALL INSTRUCTIONS carefully and completely for maximum
performance.
SAVE THIS INSTRUCTION MANUAL. The contents contain impor-
tant safety and operating instructions for the IC-M57.
CAUTIONS
NEVER connect the transceiver to more than 16 V DC or to an AC power
source.
NEVER allow children to touch the transceiver.
NEVER immerse the transceiver in water.
KEEP the transceiver and microphone at least 1 meter away from the ship's
magnetic navigation compass.
AVOID placing the transceiver in direct sunlight or subjecting it to temper-
atures below — 20 °C ( — 4°F ) or above +60°C (+140 F ).
BE CAREFUL! The transceiver is only weather resistant when the 4 cover
screws are securely tightened.
UNPACKING
Accessories included with the IC-M57:
Qty. Qty.
@ mounting bracket... eee 1 microphone hangel........ccccccecsseseees 1
@) mounting bracket knobs........... 4 @ DC power cable......cccccccccccscccccceeeeeees 1
@) flat washers (MA4)...........ccccseee 4 (OD mounting SCreWS...........0cccceseeeeees 4
flat washers (M5)...........cccccceeees 8 QD) star WASNESS............cccceccccccccesesccceeees 4
G) NUtS (M5)......ccccccssssssseeseseceseveees 4 (2 MOUNTING SCFEWS...........cceceseeceeseeeees 4
© mic hanger screws (3.5 X 3.0)..2 (3 external speaker plug... 1
@ FUSES (10A)......cccccesssecesssreeeees 2
_ Thank you for purchasing the IC-M57 VHF MARINE TRANSCEIVER. Using the most
advanced technology, Icom has produced a marine transceiver for those who want
simple operation.
