Generac NP-66LPG Recreational Vehicle Generator
; Drawing No. A4029

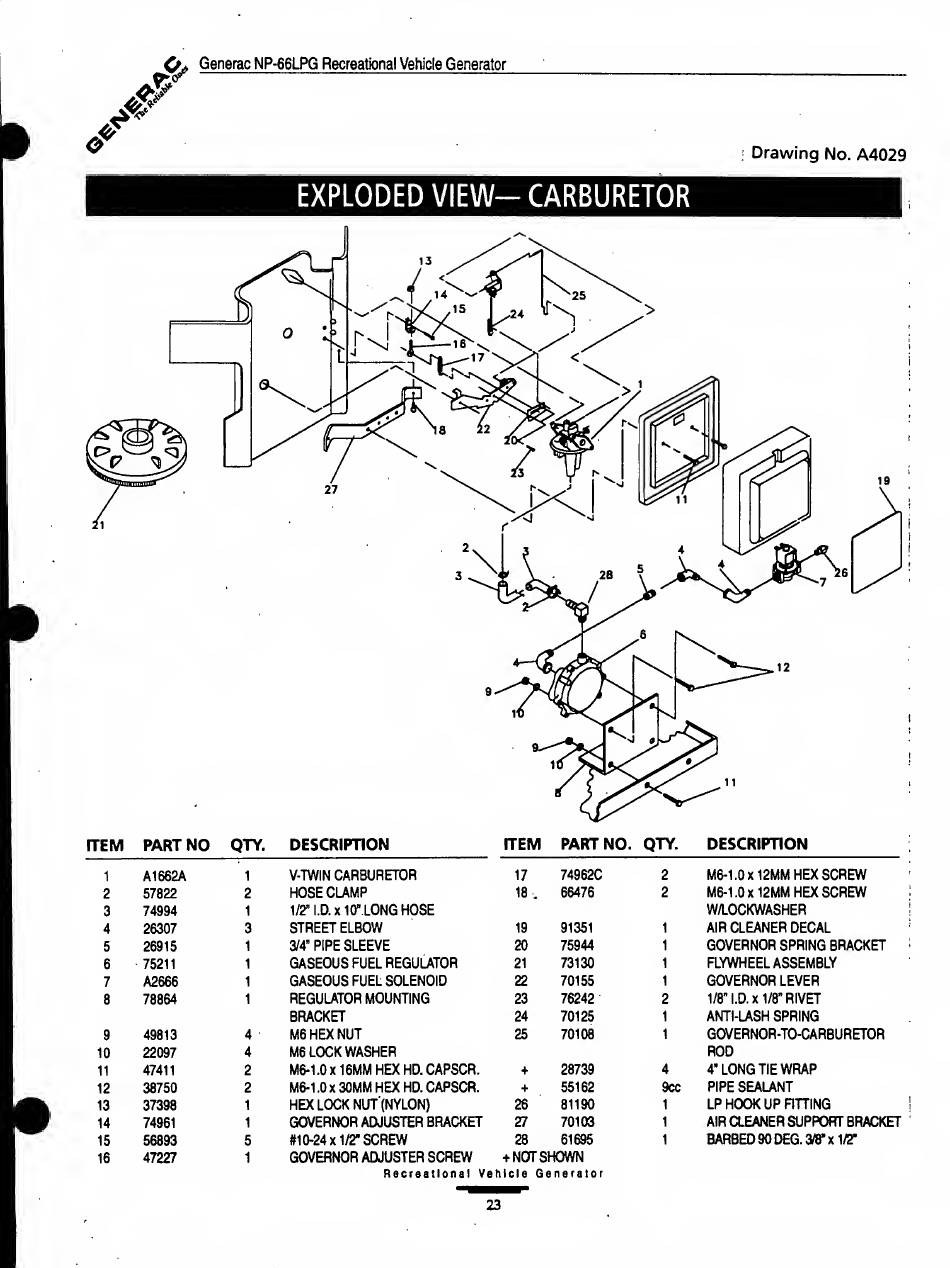

EXPLODED VIEW- CARBURETOR
ITEM
PART NO
QTY.
DESCRIPTION
ITEM
PART NO. QTY.
DESCRIPTION
1
A1662A
1
V-TWIN CARBURETOR
17
74962C
2
M6-1.0x12MM HEX SCREW
2
57822
2
HOSE CLAMP
18.
66476
2
M6-1.0 x 12MM HEX SCREW
3
74994
1
1/2" I.D. x 10" LONG HOSE
W/LOCKWASHER
4
26307
3
STREET ELBOW
19
91351
1
AIR CLEANER DECAL
5
26915
1
3/4" PIPE SLEEVE
20
75944
1
GOVERNOR SPRING BRACKET
6
75211
1
GASEOUS FUEL REGULATOR
21
73130
1
FLYWHEEL ASSEMBLY
7
A2666
1
GASEOUS FUEL SOLENOID
22
70155
1
GOVERNOR LEVER
8
78864
1
REGULATOR MOUNTING
23
76242
2
1/8" I.D. x 1/8" RIVET
BRACKET
24
70125
1
ANTI-LASH SPRING
9
49813
4
M6 HEX NUT
25
70108
1
GOVERNOR-TO-CARBURETOR
10
22097
4
M6 LOCK WASHER
ROD
11
47411
2
M6-1.0 x 16MM HEX HD. CAPSCR.
+
28739
4
4* LONG TIE WRAP
12
38750
2
M6-1.0 x 30MM HEX HD. CAPSCR.
+
55162
9cc
PIPE SEALANT
13
37398
1
HEX LOCK NUT (NYLON)
26
81190
1
LP HOOK UP FITTING
14
74961
1
GOVERNOR ADJUSTER BRACKET
27
70103
1
AIR CLEANER SUPPORT BRACKET
15
56893
5
#10-24x1/2* SCREW
28
61695
1
BARBED 90 DEG. 3/8* x 1/2*
16
47227
1
GOVERNOR ADJUSTER SCREW
+ NOT SHOWN
