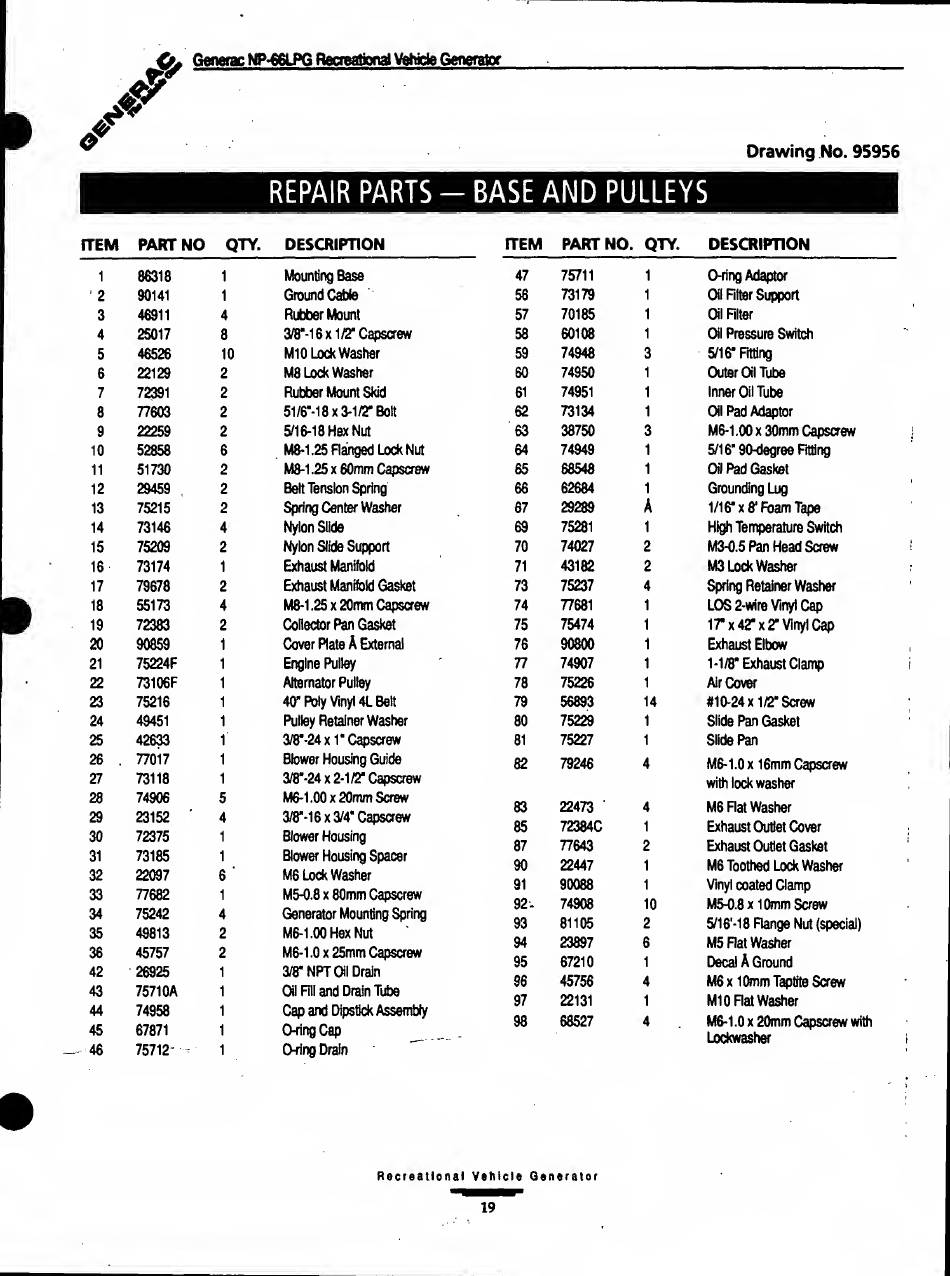

Drawing No. 95956
Generac NP-66LPG Recreational Vehicle Generator
REPAIR PARTS - BASE AND PULLEYS
ITEM
PART NO
QTY.
DESCRIPTION
1
86318
1
Mounting Base
2
90141
1
Ground Catte
3
46911
4
Rubber Mount
4
25017
8
3/8"-16x 1/2" Capscrew
5
46526
10
Ml 0 Lock Washer
6
22129
2
M8 Lock Washer
7
72391
2
Rubber Mount Skid
8
77603
2
51/6M8X 3-1/2* Bolt
9
22259
2
5/16-18 Hex Nut
10
52858
6
M8-1.25 Flanged Lock Nut
11
51730
2
M8-1.25 x 60mm Capscrew
12
29459
2
Belt Tension Spring
13
75215
2
Spring Center Washer
14
73146
4
Nylon Slide
15
75209
2
Nylon Slide Support
16
73174
1
Exhaust Manifold
17
79678
2
Exhaust Manifold Gasket
18
55173
4
M8-1.25 x 20mm Capscrew
19
72383
2
Collector Pan Gasket
20
90859
1
Cover Plate A External
21
75224F
1
Engine Pulley
22
73106F
1
Alternator Pulley
23
75216
1
40" Poly Vinyl 4L Belt
24
49451
1
Pulley Retainer Washer
25
42633
1
3/8"-24 x 1* Capscrew
26
.
77017
1
Blower Housing Guide
27
73118
1
3/8*-24 x 2-1 /2" Capscrew
28
74906
5
M6-1.00 x 20mm Screw
29
23152
'
4
3/8"-16 x 3/4* Capscrew
30
72375
1
Biower Housing
31
73185
1
Blower Housing Spacer
32
22097
6
M6 Lock Washer
33
77682
1
M5-0.8 x 80mm Capscrew
34
75242
4
Generator Mounting Spring
35
49813
2
M6-1.00HexNut
36
45757
2
M6-1.0 x 25mm Capscrew
42
26925
1
3/8" NPT Oil Drain
43
7571OA
1
OH Fill and Drain Tube
44
74958
1
Cap and Dipstick Assembly
45
67871
1
O-ring Cap
-46
75712' -
1
O-ring Drain
ITEM
PART NO. QTY.
DESCRIPTION
47
75711
1
O-ring Adaptor
56
73179
1
Off Filter Support
57
70185
1
Oil Filter
58
60108
1
Oil Pressure Switch
59
74948
3
5/16* Fitting
60
74950
1
Outer Oil Tube
61
74951
1
Inner Oil Tube
62
73134
1
Oil Pad Adaptor
63
38750
3
M6-1.00 x 30mm Capscrew
64
74949
1
5/16'90-degree Fitting
65
68548
1
Oil Pad Gasket
66
62684
1
Grounding Lug
67
29289
A
1/16' x
&
Foam Tape
69
75281
1
High Temperature Switch
70
74027
2
M3-0.5 Pan Head Screw
71
43182
2
M3 Lock Washer
73
75237
4
Spring Retainer Washer
74
77681
1
LOS 2-wire Vinyl Cap
75
75474
1
17* x 42" x 2* Vinyl Cap
76
90800
1
Exhaust Elbow
77
74907
1
1-1/8'Exhaust Clamp
78
75226
1
Air Cover
79
56893
14
#10-24x1/2" Screw
80
75229
1
Slide Pan Gasket
81
75227
1
Slide Pan
82
79246
4
M6-1.0x 16mm Capscrew
with lock washer
83
22473
4
M6 Rat Washer
85
72384C
1
Exhaust Outlet Cover
87
77643
2
Exhaust Outlet Gasket
90
22447
1
M6 Toothed Lock Washer
91
90088
1
Vinyl coated Clamp
92-
74908
10
M5-0.8 x 10mm Screw
93
81105
2
5/16'-18 Flange Nut (special)
94
23897
6
M5 Rat Washer
95
67210
1
Decal
A
Ground
96
45756
4
M6 x 10mm Taptite Screw
97
22131
1
Ml 0 Rat Washer
98
68527
4
M6-1.0 x 20mm Capscrew with
Lockwasher
Recreational Vehicle Generator
