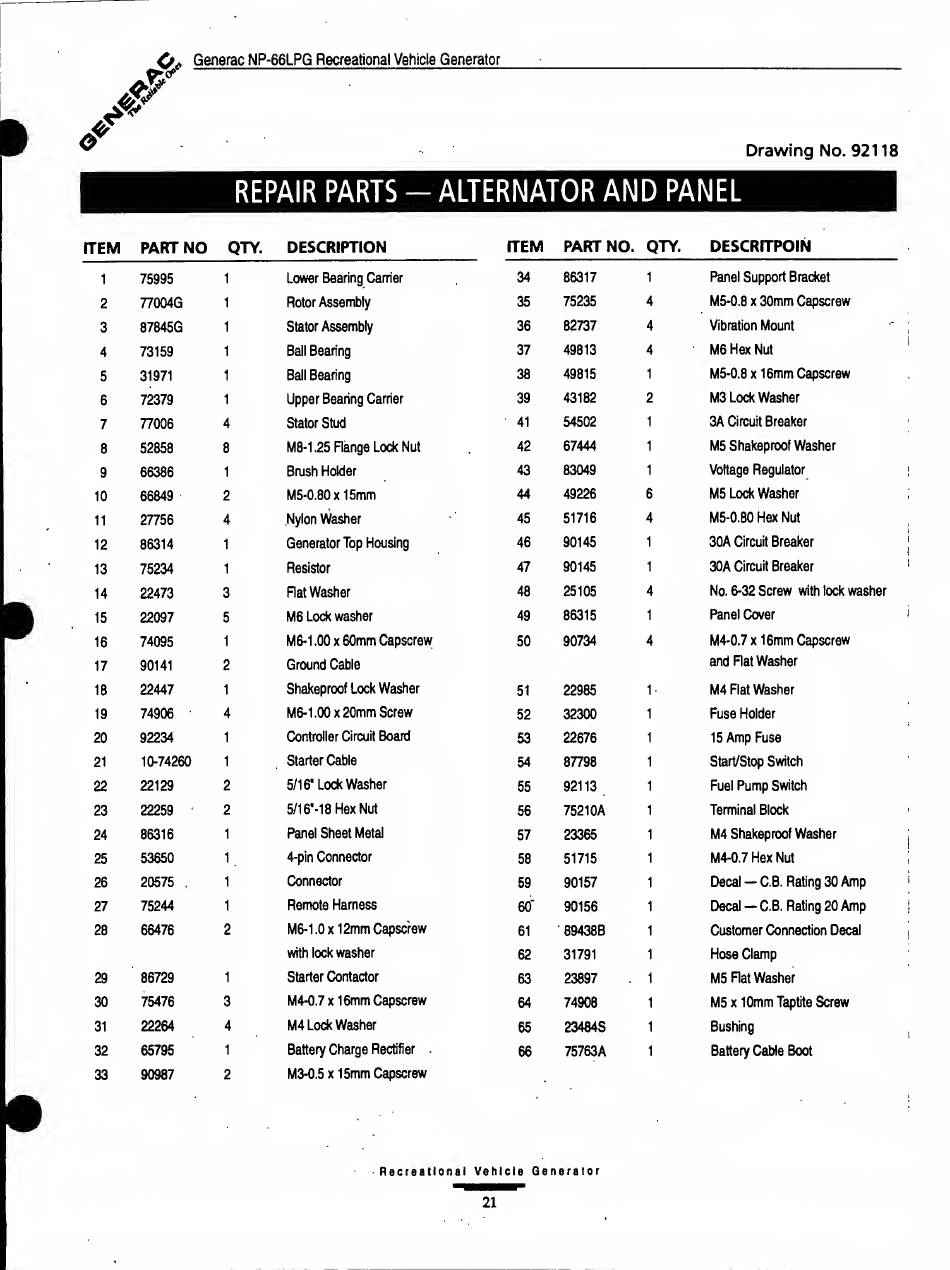

Generac NP-66LPG Recreational Vehicle Generator
Drawing No. 92118
REPAIR PARTS - ALTERNATOR AND PANEL
ITEM
PART NO
QTY.
DESCRIPTION
ITEM
PART NO. QTY.
DESCRITPOIN
1
75995
1
Lower Bearing Carrier
34
86317
1
Panel Support Bracket
2
77004G
1
Rotor Assembly
35
75235
4
M5-0.8 x 30mm Capscrew
3
87845G
1
Stator Assembly
36
82737
4
Vibration Mount
4
73159
1
Ball 8earing
37
49813
4
M6 Hex Nut
5
31971
1
Ball Bearing
38
49815
1
M5-0.8 x 16mm Capscrew
6
72379
1
Upper Bearing Carrier
39
43182
2
M3 Lock Washer
7
77006
4
Stator Stud
41
54502
1
3A Circuit Breaker
8
52858
8
M8-1.25 Range Lock Nut
42
67444
1
M5 Shakeproof Washer
9
66386
1
Brush Holder
43
83049
1
Voltage Regulator
10
66849
2
M5-0,80x 15mm
44
49226
6
M5 Lock Washer
11
27756
4
Nylon Washer
45
51716
4
M5-0.80 Hex Nut
12
86314
1
Generator Top Housing
46
90145
1
30A Circuit Breaker
13
75234
1
Resistor
47
90145
1
30A Circuit Breaker
14
22473
3
Rat Washer
48
25105
4
No. 6-32 Screw with lock washer
15
22097
5
M6 Lode washer
49
86315
1
Panel Cover
16
74095
1
M6-1.00 x 60mm Capscrew
50
90734
4
M4-0.7 x 16mm Capscrew
17
90141
2
Ground Cable
and Rat Washer
18
22447
1
Shakeproof Lock Washer
51
22985
1
M4 Rat Washer
19
74906
4
M6-1.00x20mm Screw
52
32300
1
Fuse Holder
20
92234
1
Controller Circuit Board
53
22676
1
15 Amp Fuse
21
10-74260
1
Starter Cable
54
87798
1
Start/Stop Switch
22
22129
2
5/16" Lock Washer
55
92113
1
Fuel Pump Switch
23
22259
2
5/16'-18 Hex Nut
56
75210A
1
Terminal Block
24
86316
1
Panel Sheet Metal
57
23365
1
M4 Shakeproof Washer
25
53650
1
4-pin Connector
58
51715
1
M4-0.7 Hex Nut
26
20575 .
1
Connector
59
90157
1
Decal — C.B. Rating 30 Amp
27
75244
1
Remote Harness
60'
90156
1
Decal — C.B. Rating 20 Amp
28
66476
2
M6-1.0 x 12mm Capscrew
61
89438B
1
Customer Connection Decal
with lock washer
62
31791
1
Hose Clamp
29
86729
1
Starter Contactor
63
23897
1
M5 Rat Washer
30
75476
3
M 4-0.7 x 16mm Capscrew
64
74908
1
M5 x 10mm Taptite Screw
31
22264
4
M4 Lock Washer
65
23484S
1
Bushing
32
65795
1
Battery Charge Rectifier
66
75763A
1
Battery Cable Boot
33
90987
2
M3-0.5 x 15mm Capscrew
