SAV-4, SAV-6
EN
VEHICLE LOUDSPEAKER MOUNT

DESCRIPTION

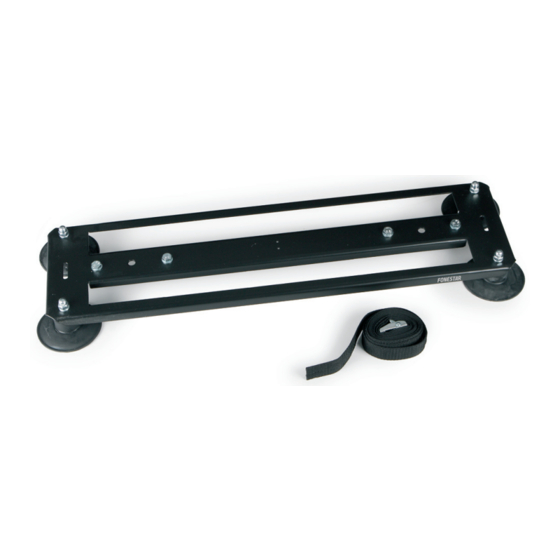

Loudspeaker mount with suction pads and adjustable safety strap, to install on the roof of a car, van etc.
With holes for horn speaker mods. FE-1210, FE-107, FE-149 or similar. Easy to mount and demount quickly
on any type of vehicle.

WARNING

VERY IMPORTANT:
A) Before assembly, make sure that the suction pads are going to be on a flat surface without indents or
marks that could let air in and therefore prevent them from sticking.
B) Make sure that the surface is clean and dry. The installation of the mount on a dirty or damp surface,
will practically cancel out the adhesive effect of the suction pads. Remove the silicone residue that
polishes in car washes usually leave.
This mount is not suitable for canvas, vinyl, etc. which due to their porosity or movement, make it easy for
air to get under the suction pads.
Dimensions: SAV-4: 31 x 5 x 31 cm depth
SAV-8: 66 x 5 x 18 cm depth
ATTENTION: Although this mount, with horn speakers assembled and correctly fixed, can stay perfectly
in place at a maximum speed of 80 km/hour, it is recommended that you do not go faster than
50 km/hour to avoid damaging the mount, loudspeakers or even the vehicle. Especially when
the wind is blowing strongly from the side or the front.

INSTALLATION

1.- Mount the loudspeakers on the corresponding bars on the mount using the nuts, bolts and washers
supplied.
The connection has to be made in series or in parallel, depending on the impedance of the loudspeaker
or amplifier to be connected.
2.- Position everything, loudspeakers-mount, on the roof of the vehicle. Take into consideration the warnings
in part 2 (WARNING).
3.- Press the system down lightly so that the suction pads stick to the roof of the vehicle. Make sure that
the surface is clean and do not apply any chemical product, adhesives, etc. to the suction pads or the
installation surface.
4.- Pass the safety strap through the corresponding holes in the mount and then through the open door to
the inside of the vehicle. Pass the free end through the strap tensioner and tighten pulling the free end.
5.- Check that everything is firmly attached in place and the doors close properly.
6.- Connect the loose end of the speaker cable to the amplifier output on the car passing it through the
same open door.
SAV-4 SAV-6
