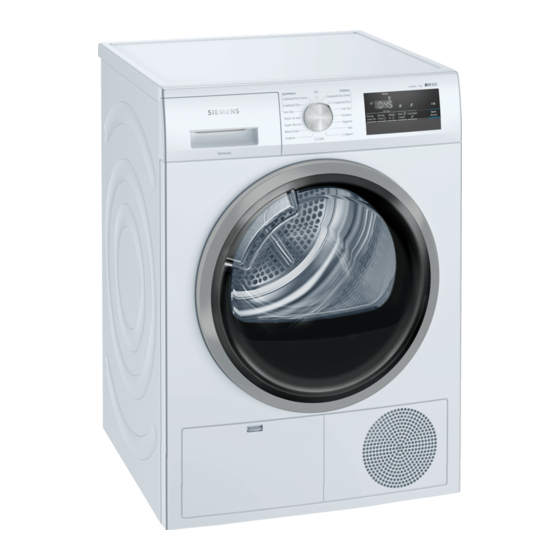

- Page 1 Tumble dryer WT46N203IN User manual and installation instructions Register your product on My Siemens and discover exclusive services and offers. siemens-home.bsh-group.com/welcome The future moving in. Siemens Home Appliances...
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety ........... 4 9 Programmes ...... 24 1.1 General information.... 4 9.1 Automatic programmes... 24 1.2 Intended use...... 4 9.2 Timed programmes .... 25 1.3 Restriction on user group.. 4 10 Accessories...... 26 1.4 Safe installation ...... - Page 3 15 Cleaning and servicing ... 33 15.1 Tips on cleaning and care .. 33 15.2 Base unit ....... 33 15.3 Moisture sensor..... 35 16 Troubleshooting...... 37 17 Transportation, storage and disposal ........ 41 17.1 Preparing the appliance for transportation ...... 41 17.2 Disposing of old appliance ... 41 18 Customer Service.... 42 18.1 Product number (E-Nr.) and production number (FD)..
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶...
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. ▶ Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. ▶ Keep the area around the appliance clean during operation. WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en ▶ If drying is interrupted early, remove the laundry immediately and spread it out. CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. ▶ Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door. - Page 10 en Safety WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories. WARNING ‒ Risk of poisoning! Poisonous fumes may be given off if you use cleaning agents that contain solvents.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact ATTENTION! with the appliance. The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, de-... -
Page 12: Energy Saving Mode
en Installation and connection Check the appliance for visible After drying, clean the fluff filter damage. → Page 28. Open the door. a If the fluff filter is dirty, this reduces Remove any accessories from the the air flow in the appliance, ex- drum. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location In a washer-dryer Only use the ori- ATTENTION! stack ginal connection If the appliance is tilted at an angle set from the greater than 40°, residual water may dryer manufac- leak out of the appliance and cause turer when set-... - Page 14 en Installation and connection hose to drain away excess condens- Pull out the condensation hose ation directly into the waste water from the connecting piece. system. Notes ¡ Operate this appliance using the water drain hose provided. If you connect the water drain hose → Page 14, you do not have to regularly empty the condensation container → Page 30.
- Page 15 Installation and connection en Push the water drain hose as far Water outlet connection types as it will go into the connecting ATTENTION! piece. In the event of a blocked or covered outlet, accumulated wastewater can flow back into the appliance. Before operating the appliance, en- ▶...
-
Page 16: Aligning The Appliance
en Installation and connection Secure the elbow to the gully. 4.5 Aligning the appliance In order to reduce vibrations and noises, align the appliance correctly. To align the appliance, turn the ap- ▶ pliance feet. Check that the appli- ance is level using a spirit level. All appliance feet must stand firmly on the ground. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. Ventilation opening Door Maintenance flap on the base Condensation container... -
Page 18: Control Panel
en Familiarising yourself with your appliance 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 24 Programme selector → Page 27 Display → Page 19 Buttons → Page 21... -
Page 19: Display
Display en 6 Display The display shows the current settings, options or relevant information. Example: Display Display Designation Description 0:40 Programme dura- Expected programme duration or pro- tion/programme gramme time remaining in hours and time remaining minutes. 0:45 Timed programme The timed programme is set. → "Timed programmes", Page 25 Programme end → "Buttons", Page 22... -
Page 20: Dryness Level
en Display Display Designation Description Condensation Empty the condensation container container → Page 30. Insert the condensation container → Page 31. Fluff filter Clean the fluff filter. Base unit → "Cleaning the fluff filter", Page 28 Clean the base unit. → "Base unit", Page 33 Drying Programme status Dryness level: Iron Programme status Dryness level: Programme status... - Page 21 Buttons en 7 Buttons Below is an overview of the buttons and their setting options. Button Selection Description Start Reload ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause 3 sec. ¡ Activate Activate or deactivate the childproof lock. ¡...
- Page 22 en Buttons Button Selection Description Ready In Up to 24 hours Set the programme end time. The programme duration is already included in the set number of hours. Once the programme has started, the pro- gramme duration is dis- played. Drying Time Multiple selection Set the programme dura- tion for timed pro-...
-
Page 23: Changing The Dryness Level
Dryness level en 8 Dryness level Each automatic programme has a specified dryness level. The dryness level defines how dry or damp your laundry is after the programme ends. Dryness level Laundry Drying result Cupboard Dry Multi-layered, thick laundry The laundry is dry. Extra that does not dry readily. -
Page 24: Programmes
en Programmes 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 25: Timed Programmes
Programmes en Programme Description Max. load (kg) Shirts 15 min Suitable for shirts and blouses made of cotton, linen, synthetics or blended fab- rics. Note: For optimal drying results, dry a maximum of 5 shirts or 5 blouses at the same time. Once the laundry is dry, iron it or hang it up. -
Page 26: Accessories
en Accessories 10 Accessories Use original accessories. These have been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 42. Order number Connection kit To save space, stack the WZ11410 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 27: Laundry
Laundry en Turn the programme selector and 11 Laundry set the required programme. → "Programmes", Page 24 If required, adjust the programme 11.1 Preparing the laundry settings. → "Adjusting the programme set- ATTENTION! tings", Page 27 Objects remaining in the laundry may damage the laundry and the drum. 12.3 Adjusting the pro- Remove all items from any pock- ▶... -
Page 28: Changing The Activated Programme End Time
en operation a The display shows the programme 12.9 Unloading the laundry duration or the programme end Open the door. time. Remove the laundry from the a After the programme has ended, the display shows: "End" . drum. 12.6 Changing the activated 12.10 Switching off the appli- programme end time ance You can repeatedly change the set... - Page 29 operation en Remove the fluff filter. Remove the fluff. Remove the fluff from the recess. Clean the fluff filter thoroughly un- der warm, running water and then dry it off. Ensure that no fluff falls into the air channel. Open the fluff filter. Close the fluff filter.
-
Page 30: Condensation Container
en operation Insert the fluff filter. Pull out the condensation con- tainer, keeping it level. Close the door. Empty the condensation container. 12.12 Condensation con- tainer Condensation forms during drying, which your appliance uses for auto- matic cleaning. By default, the con- densation is collected in the appli- ance's condensation container. -
Page 31: Childproof Lock
Childproof lock en Inserting the condensation container Push the condensation container ▶ in as far as it will go. 13 Childproof lock Secure your appliance against being operated unintentionally using the controls. 13.1 Activating the childproof lock Press and hold the two 3 sec. ▶... -
Page 32: Basic Settings
en Basic settings 14 Basic settings You can configure the basic settings for your appliance to meet your needs. 14.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 33: Changing The Basic Set- Tings
Cleaning and servicing en 14.2 Changing the basic set- nothing but water and a damp tings cloth. Set the programme selector to po- Remove all de- Fresh deposits sition 1. tergent residue, are easier to re- spray residue or move without other residues leaving any immediately. - Page 34 en Cleaning and servicing Open the lever for the heat ex- Clean the heat exchanger cover changer cover. under running water and dry it. Make sure that you remove all dirt Pull out the heat exchanger cover from the seal. by the handle. Pull out the heat exchanger hori- zontally.
-
Page 35: Moisture Sensor
Cleaning and servicing en Clean the opening with a soft, Insert the heat exchanger cover by damp cloth. the handle. Slide the heat exchanger in hori- Close the lever for the heat ex- zontally as far as it will go. changer. Ensure that the heat exchanger is Close the maintenance flap. - Page 36 en Cleaning and servicing ance changes the duration of the Note: If you do not clean the appli- automatic programme depending on ance as described, the appliance's the residual moisture in the laundry. functionality may be impaired. Open the door. Cleaning the moisture sensor Clean the moisture sensor with a Over time, residue from limescale, sponge.
-
Page 37: Troubleshooting
Troubleshooting en 16 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 38 en Troubleshooting Fault Cause and troubleshooting Creasing. → "Changing the dryness level", Page 23. ▶ → "Adjusting the dryness level", Page 23. ▶ Anti-Crease not activated. Activate the Anti-Crease function. ▶ → "Buttons", Page 21 and programme Condensation tank filled. terminated. → "Emptying the condensation container", Page 30. → "Inserting the condensation container", Page 31. → "Starting the programme", Page 27.
- Page 39 Troubleshooting en Fault Cause and troubleshooting The length of the pro- The programme operation is optimised electronically. gramme changes dur- This may change the programme duration. ing the drying cycle. Not a fault – no action required. ▶ Pumping noise. Condensation pump active. Not a fault –...
- Page 40 en Troubleshooting Fault Cause and troubleshooting The laundry is too The load is too large. damp. Observe the maximum load capacity of the ▶ → "Programmes", Page 24. After the end of the programme, warm laundry feels damper than it actually is. Remove the laundry from the drum as soon as the drying programme has finished.
-
Page 41: Transportation, Storage And Disposal
Transportation, storage and disposal en 17.2 Disposing of old appli- 17 Transportation, stor- ance age and disposal Valuable raw materials can be re- used by recycling. 17.1 Preparing the appliance for transportation WARNING Risk of harm to health! Tip: The appliance may contain re- Children can lock themselves in the sidual water, which may drip out of it appliance, thereby putting their lives when transported. - Page 42 Helpline no.: 1800-209-1850 not be opened by the (Monday to Saturday – 8 am to user himself/herself, 8 pm) but only by authorized Email ID: service.in@siemens- service personnel. home.BSH-Group.com ¡ The product is not meant for re-sale to any unauthorized agencies/scrap deal-...
-
Page 43: Customer Service
Customer Service en 18.1 Product number (E-Nr.) and production number (FD) You can find the product number (E- Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate is located: ¡ On the inside of the door. ¡... -
Page 44: Consumption Values
en Consumption values 19 Consumption values The specified values are indicative amount of laundry being loaded, en- only and were determined in accord- vironmental conditions and the activ- ance with the applicable standard ation of additional functions. IEC61121. The expected programme dura- The actual values may deviate from tion/"Ready in"... -
Page 45: Technical Data
Technical data en Ambient temper- ¡ Minimum: Length of the 145 cm ature 5 °C power cord ¡ Maximum: 35 °C... - Page 48 BSH Hausgeräte GmbH Carl-Wery-Straße 34 81739 München, GERMANY siemens-home.bsh-group.com Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG *9001791166* 9001791166 (030120)
