Features:
• Fits ATD-10141B and most other engine cranes
• Machined and polished cylinders provide non-abrasive, leak-free, durable performance
• Hydraulic system is protected from internal damage by a built-in bypass mechanism
ATD-7486B

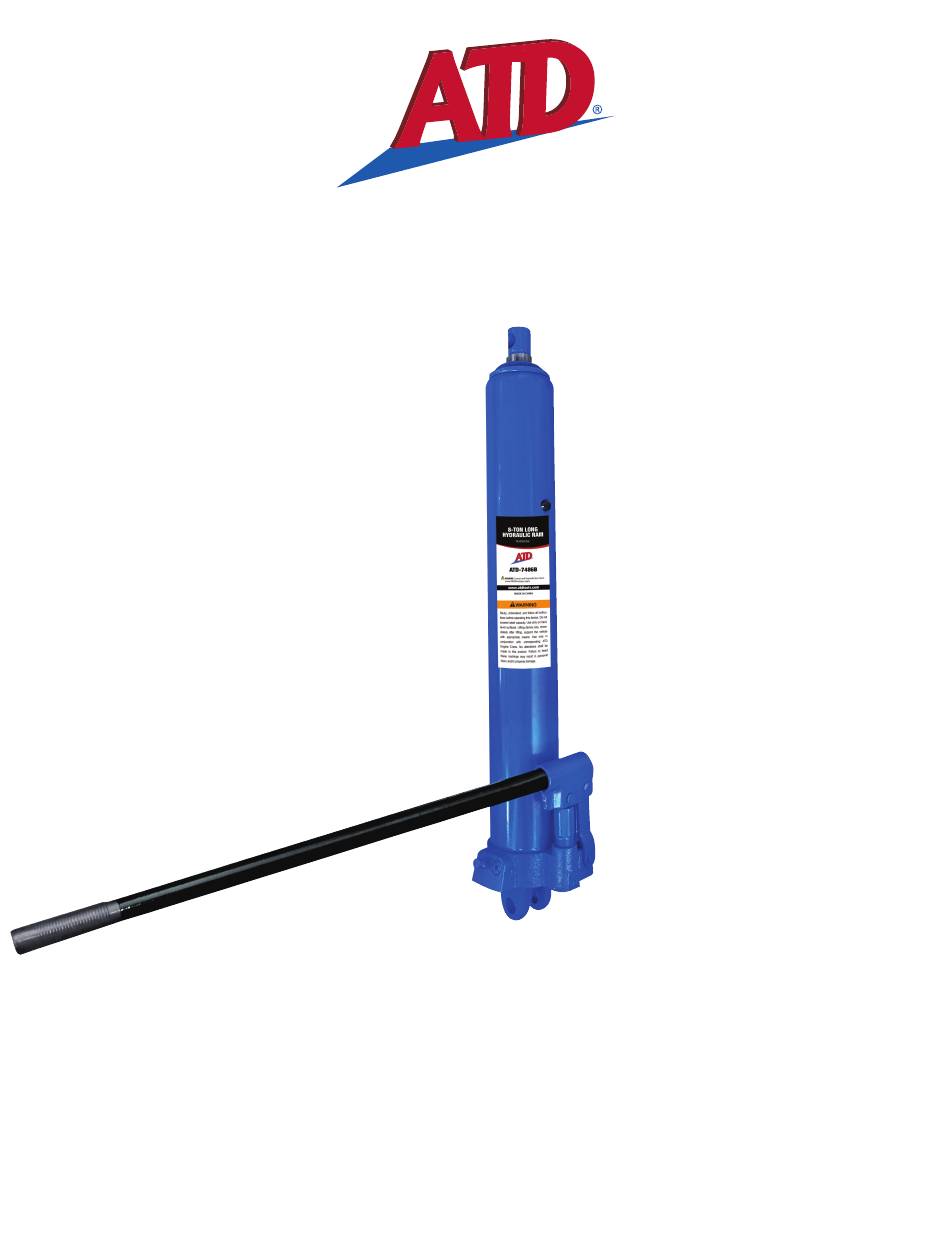

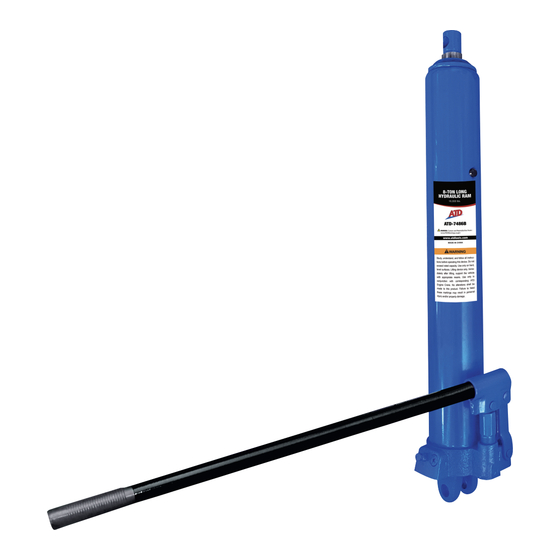

8-Ton Long Hydraulic Ram
Owner's Manual
Made in China to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
• Capacity (Ton): 8
• Minimum Height: 24-13/16"
• Maximum Height: 44"
• Base Size: 4-1/8" x 4-3/4"
• Ram Piston Hole Diameter: 11/16"
ATD7486B_rev_1122
Advertisement
Table of Contents
Related Manuals for ATD Tools ATD-7486B
Summary of Contents for ATD Tools ATD-7486B
- Page 1 • Hydraulic system is protected from internal damage by a built-in bypass mechanism • Maximum Height: 44” • Base Size: 4-1/8” x 4-3/4” • Ram Piston Hole Diameter: 11/16” ATD7486B_rev_1122 Made in China to ATD Tools, Inc. Specifications Visit us at www.atdtools.com...
- Page 2 Any jack that appears to be damaged in any way, is worn or operated abnormally should be removed from service immediately until such time as repairs can be made. PRODUCT DESCRIPTION ATD Tools’ Long Hydraulic Ram is designed to be used with corresponding ATD Tools’ Engine Cranes. Its intended use is as an aid in the removal and installation of vehicle component parts and assemblies, particularly vehicle engines and those vehicle transaxles designed to be removed from above the engine compartment.
- Page 3 OPERATION Adding Oil: 1. With ram fully lowered and pump piston fully de- 1. Secure jack to suitable engine crane. Locate and pressed, set jack in its upright, level position. Care- close release valve by turning lever clockwise firmly. fully remove from crane. Remove oil filler plug. 2.
- Page 4 Not all components of this product are replacement items, but are illustrated as a convenient reference for position in the assembly sequence. When ordering parts, give model number, part number and description. Call your distributor for current pricing: Figure 2 - Replacement Parts Illustration for model ATD-7486B ITEM# ORDERING PART#...
- Page 5 Your ATD-7486B is warranted for a period of 12 months from the original purchase date. For a period of one (1) year from your purchase date, ATD Tools Inc. will repair or replace (at its option) without charge, your ATD product if it was purchased new and the product has failed due to a defect in material or workmanship which you experienced during normal use of the product.
