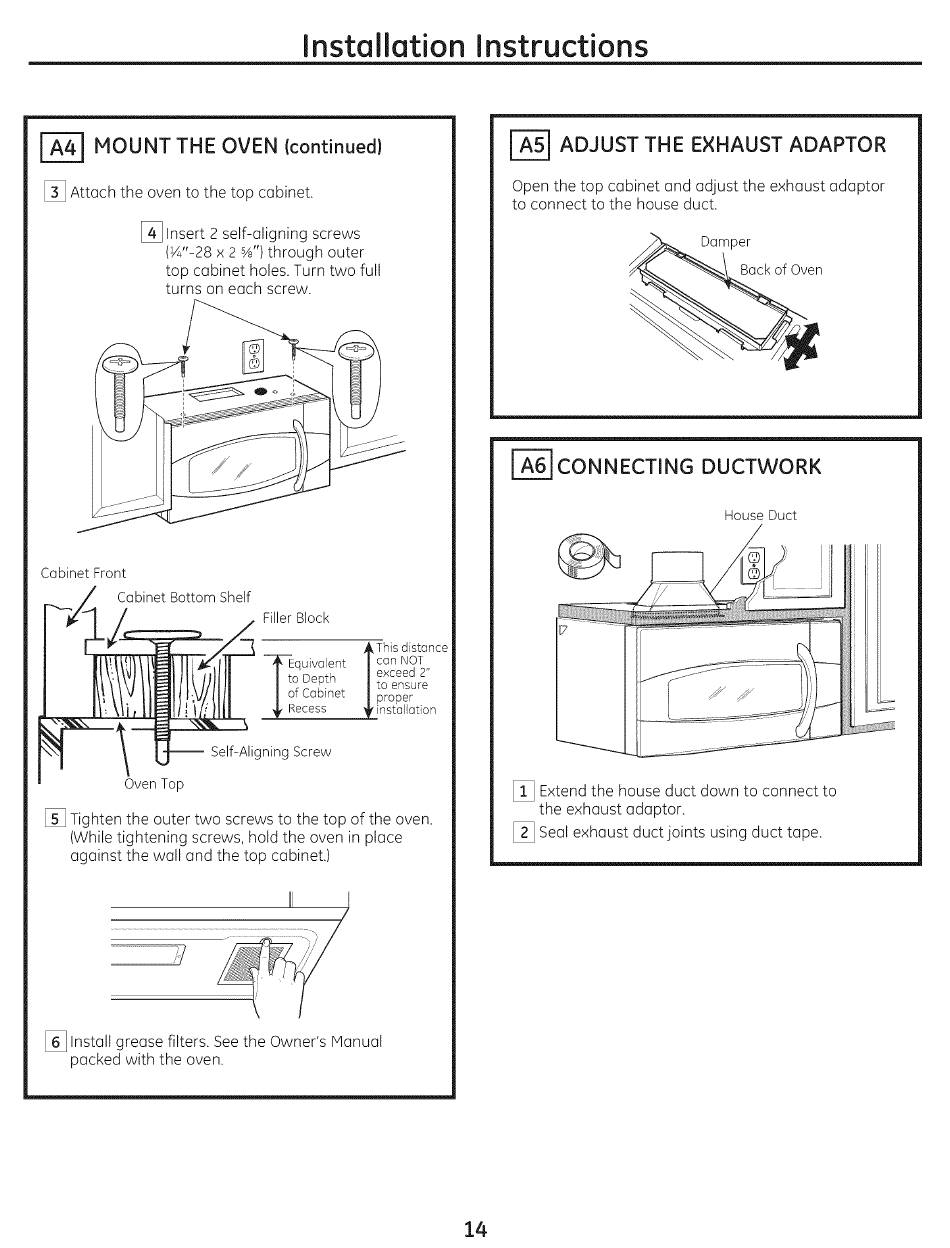

Installation Instructions
A&| MOUNT THE OVEN (continued)
Attach the oven to the top cabinet.
Insert 2 self-aligning screws
(Y4"-28 x 2 %") through outer
top cabinet holes. Turn two full
turns on each screw.
Cabinet Bottom Shelf
"7 Filler Block
ne cagaa
mi A This distance
it i can NOT
: \) | rosa exceed 2"
fi
to ensure
Self-Aligning Screw
Oven Top
of Cabinet proper
Recess w installation
4
Tighten the outer two screws to the top of the oven.
(While tightening screws, hold the oven in place
against the wall and the top cabinet)
| 6 | Install grease filters. See the Owner's Manual
packed with the oven.
A5| ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
A6| CONNECTING DUCTWORK
House Duct
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
