Installation Instructions

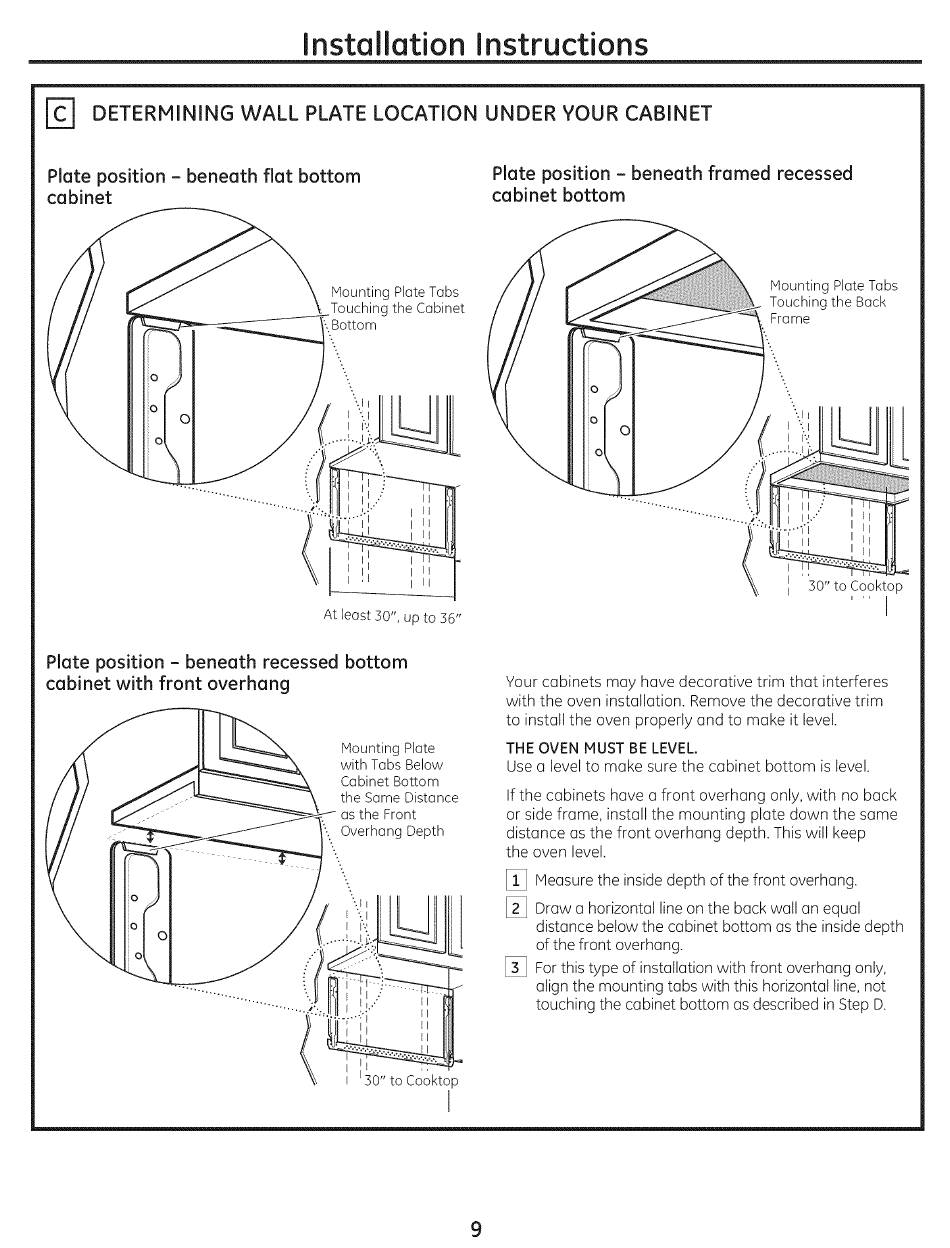

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
Plate position - beneath flat bottom Plate position - beneath framed recessed
cabinet cabinet bottom
Mounting Plate Tabs
Touching the Back
\, Frame
Mounting Plate Tabs
__Touching the Cabinet
». Bottom
Plate position - beneath recessed bottom
cabinet with front overhang Your cabinets may have decorative trim that interferes
with the oven installation. Remove the decorative trim
to install the oven properly and to make it level.
Mounting Plate THE OVEN MUST BE LEVEL.
with Tabs Below Use a level to make sure the cabinet bottom is level.
Cabinet Bottom ; ;
the Same Distance If the cabinets have a front overhang only, with no back
— as the Front or side frame, install the mounting plate down the same
», Overhang Depth distance as the front overhang depth. This will keep
F the oven level.
Measure the inside cepth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside depth
of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
