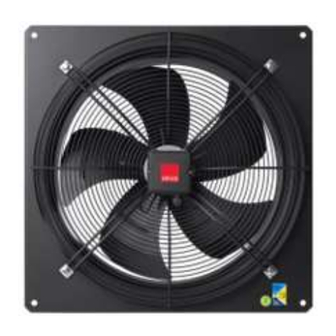

General Instructions

(Propeller Fan)

APL Series

(SA)

INTRODUCTION

This manual is to assist the engineer to avoid the most common fan problems caused by

improper storage, installation, operation and maintenance. HANDLING AND MAINTENANCE

SHOULD ALWAYS BE PERFORMED BY EXPERIENCED AND TRAINED PERSONNEL.

RECEIVING, HANDLING AND STORAGE

Rough handling during shipment and improper storage can cause damage that is not noticeable

until the fan is in operation. This can be avoided with proper storage and handling techniques.

Fan should be hoisted with slings placed around the fan housing. Touch up the scratch coated

surfaces during lifting, to prevent corrosion to occur at this area. Store the fan in a clean and

dry place, preferably indoor to ensure fan shaft, bearing and fan casing are protected against

dust and corrosion. Do not store the fan in a location where it will be subjected to vibration.

This can cause the internal surface to rub against each other and damage the bearings.

INSTALLATION

 Ensure that suitable fastener is used for each of the mounting holes in the panel.

 Ensure that the fan panel and drive components are not bent or twisted during installation.

 Fan should be installed so that any obstructions will not be within 1 Diameter of the fan inlet

and outlet.

 Ensure that the fan orientation is correct for the required air flow direction.

(INDOOR)

(OUTDOOR)

WALL

PROTECTION NET

FAN PANEL

EXHAUST (Direction A)

SUPPLY (Direction B)

IGB063.E0/2311

Page 1 General Instructions (Propeller Fan) APL Series (SA) INTRODUCTION This manual is to assist the engineer to avoid the most common fan problems caused by improper storage, installation, operation and maintenance. HANDLING AND MAINTENANCE SHOULD ALWAYS BE PERFORMED BY EXPERIENCED AND TRAINED PERSONNEL.
Page 2 ELECTRICAL CONNECTION  Before carrying out any installation or wiring of the range ensure that the mains electrical supply is disconnected.  Before making any electrical connections ensure that the voltage and frequency of the mains electrical supply matches that of the fan data plate label (maximum permissible deviation of voltage and frequency +/- 5%).
Page 3 START – UP CHECK LIST Before putting any fan into initial operation, the manufacturer’s instruction must be followed. Complete the following checklist to make sure that the fan is ready to run.  Lock out the primary and all secondary power sources. ...
Page 4 Impeller imbalance KRUGER Impurities on the impeller Clean the impeller carefully Fan operates unevenly Impeller deformation Replace impeller or contact KRUGER Vibration Ensure the fan is installed firmly Disconnect power supply and Connection malfunction corrected following wiring diagram Ensure supply voltage within...
