1.
OVERVIEW
1)

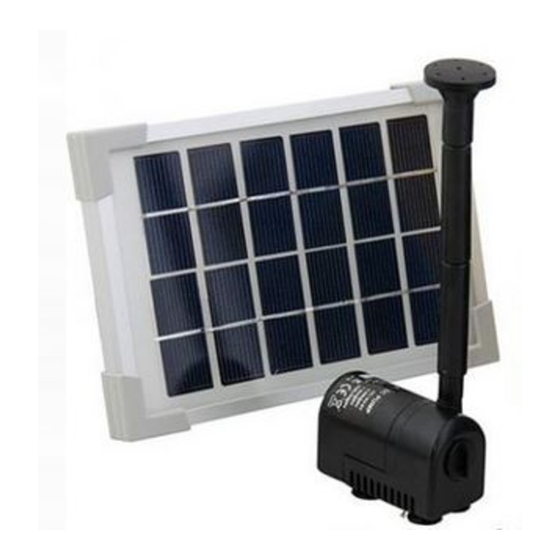

The solar pump is designed for outdoor or indoor fountain use, and is powered by a solar panel. In order to
make the pump work by solar energy, the solar panel needs to be placed in the sunlight with its solar cells
facing the sun as much as possible.
2)
The power supply to the pump is provided by a solar panel, so that the pump is capable of working in daylight
only.
3)
The pump flow rate can be adjusted by the flow valve on the front of the pump casing. (Refer to Figure 1).
4)
The performance of the pump depends on the sunlight intensity and the orientation of the solar panel.
5)
The latest DC brushless motor technology is used in the manufacture of these pumps, so that the pump has
high efficiency and long service life.
2.
COMPONENTS

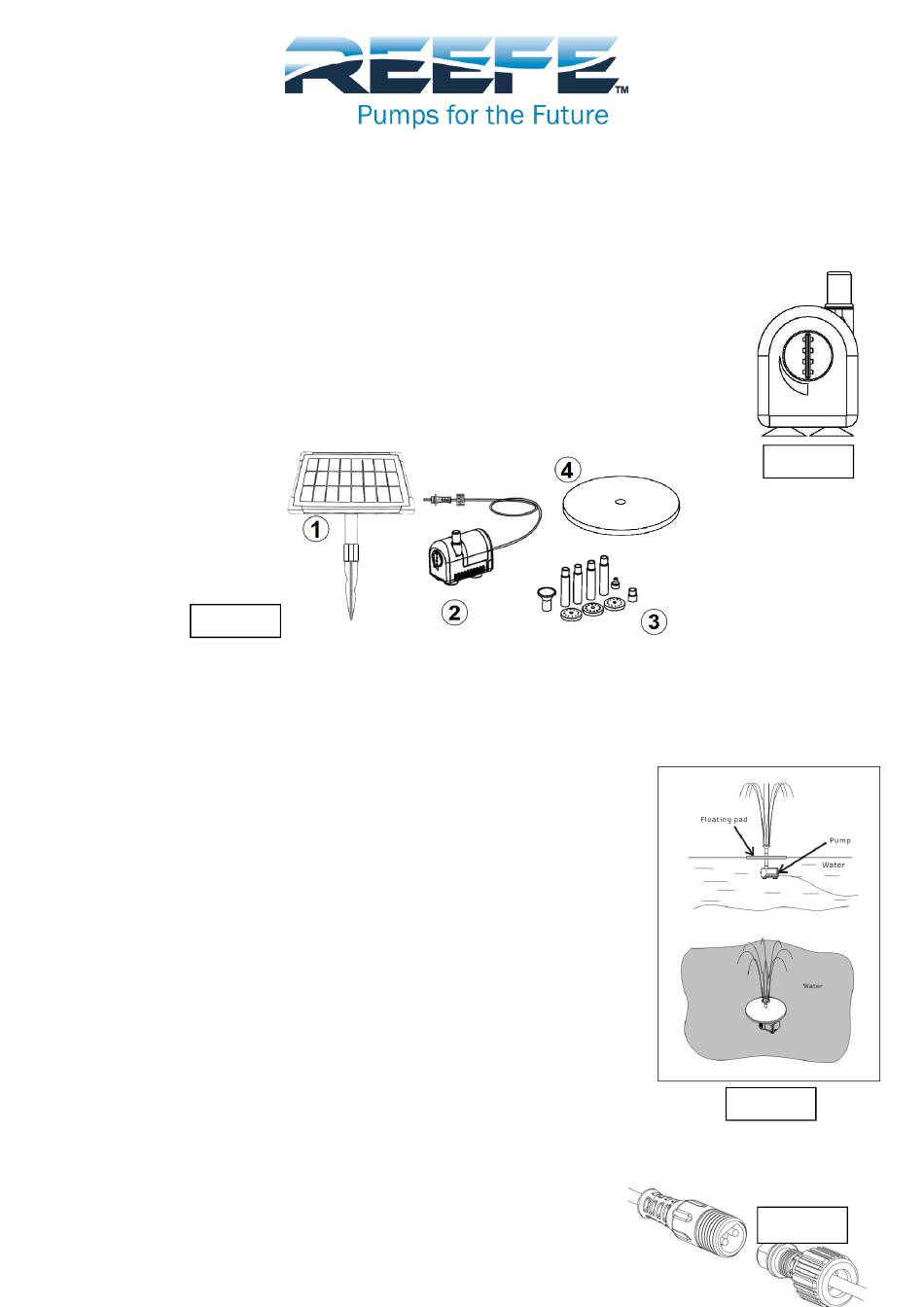

Figure 2
1)
Solar panel & Ground spike
3.
ASSEMBLING
1)
Unpack all components carefully.
2)
Connect the solar panel and the pump, as shown in Figure 2 above, and then tighten the
connection nut. Install the solar panel in a sunny place on the ground spikes, adjust the angle
to face the solar panel toward the sun.
3)
For a waterfall feature, fit suitable pipework to the pump outlet.
4)
For the application of creating a fountain spray, please follow the steps below:
a)
Fit a nozzle and extension tubes to the top of the pump outlet, the nozzle can produce 2
different jet shapes.
b)
Fit the floating pad, if desired, onto the pump extension tube and then place the floating
pad supported pump on the water (refer to Figure 3).
c)
It is best to keep the pump off the pond base to avoid drawing pond waste into the
pump, otherwise it may lead to blockage in the pump.
5)
Ensure you keep the pump fully underwater when the pump is in operation.
NOTE WELL: The pump performance is variable according to these factors: sunlight hours &
strength.
4.
CAUTIONS
RAMDEX INDUSTRIES
SOLAR PUMP KIT USER MANUAL
™
Model No.: RSF175
2) Pump
3) Nozzles and extension tubes
37 Export St Lytton Qld 4178
4) Floating pad
Ph.: 1300 726 339
©Copyright 2012
Figure 1
Figure 1
Figure 3
Figure 4
Page 1 of 3
