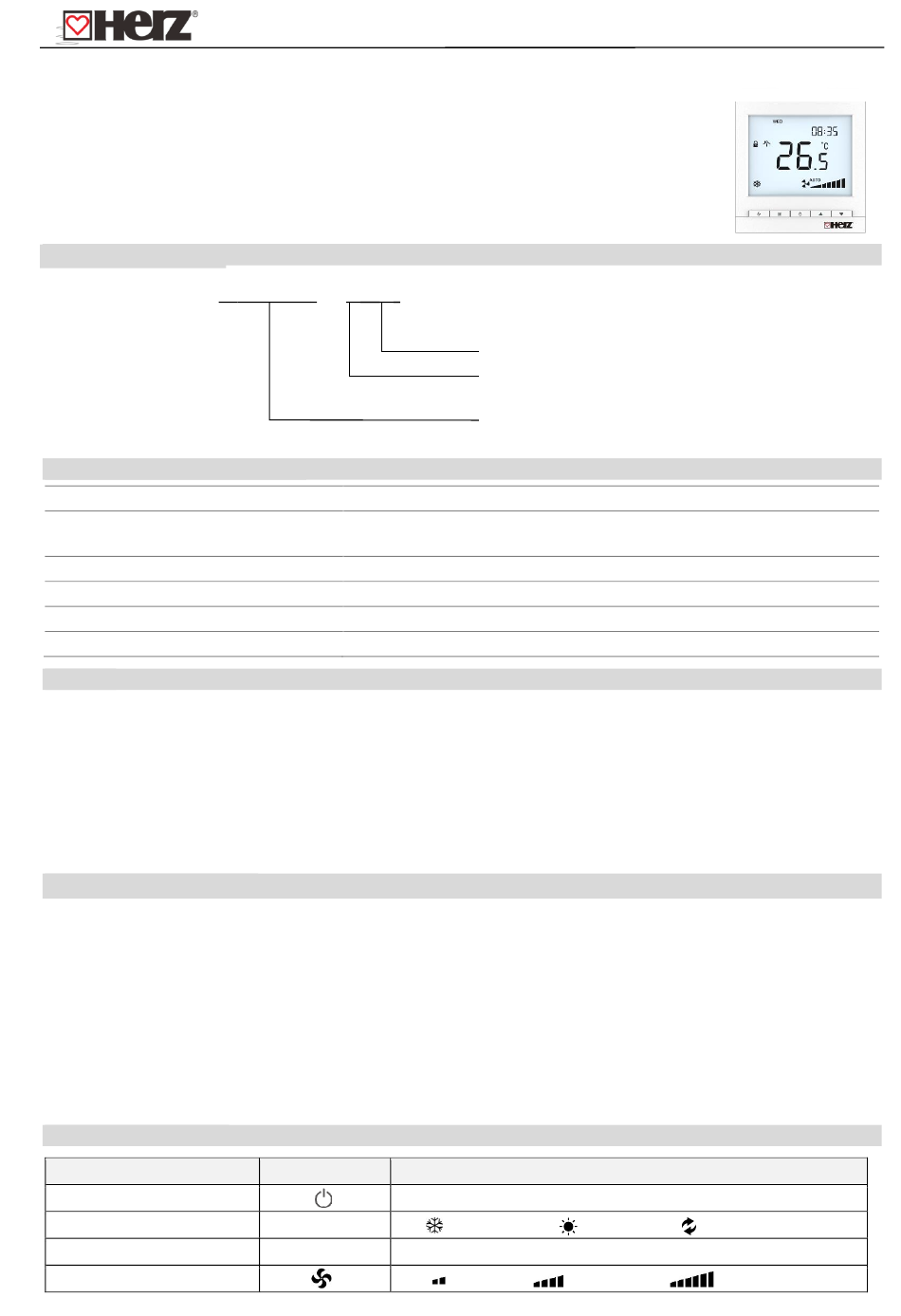

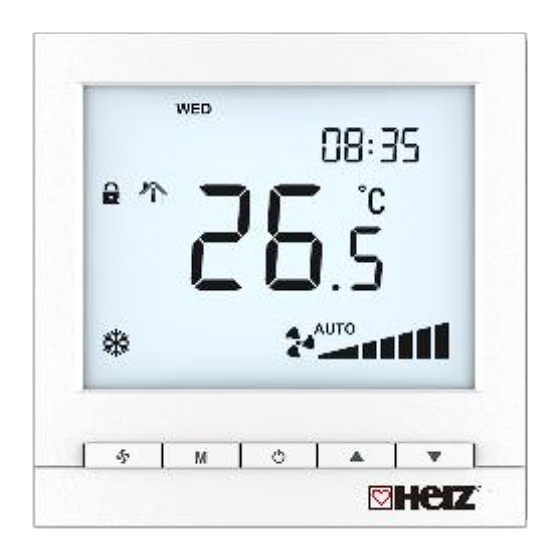

H7714 Series Thermostat User and Installation Manual
series thermostats are suitable for industrial, commercial, and room
H7714
temperature control, which is applied to the 3-speed fan, DC 0-10V for the
electric control valve.
(with Modbus) model is used to realize remote centralized control
H7714-MD
and management, especially for office buildings, apartments, hotels, and other
commercial buildings.
Model Selection Guide
H7714 DA/DB
Characteristics and Advantages
Characteristics
Product serialization
Large Size LCD Screen
EEPROM Memory
ABS+PC Plastic Cover and Base
Heavy Duty Relay Available
Function
 Application: 2-Pipe/4-Pipe Fan Coil Control
 Operation Mode: Cooling/Heating/Ventilation
 Display: Operation Mode, Room temperature, Fan
speed, Valve Status, Clock, ECO mode
 Room Temperature Setting
 Backlight: White
 Fan Control: 3-Speed, Manual/Automatic
 Valve Control:
AO 0~10VDC
Technical specifications
 Power supply:
24VAC ±10%, 50/60Hz
 Power consumption: ˂ 2 W
 Temperature setpoint range: 5 ~ 35 ℃ in 0.5 ℃
increments
 Temperature measurement range: 0 ~ 55 ℃
 Accuracy: ±1 ℃
 Built-in Temperature Sensor Type: 10K NTC
 Remote Temperature Sensor Type: 10K NTC
 Terminations: Screw terminals block
Basic Function Setting
Operation
Turn On/Off
Operation Mode
Temperature Setting
Fan Speed
– T L
Advantages
This series of products have a variety of functional combinations,
which can be suitable for different application requirements
White back-light, clear display
Auto-recovery after power failure
Strong and durable Intrinsically flame retardant
7A relay optional for high static pressure FCU
modulating
Key
M (Cooling),
˄ ˅
1 /
H7714 DA/DB-TL FCU THERMOSTAT
White Backlight
7 Day/4 Period Schedule
DA/DB: 2-Pipe Coil
FCV2: 4-Pipe Coil
V: Only Analog Output
 Timer: Time on/off or 7 day/4 period
programmable schedule
 Key Lock
 Temperature Setpoint limit
 Auto-restart after power failure
 Low-temperature protection
 External Input: Remote temperature sensor and
digital switch (Hotel keycard)
 Relay Capacity: 5A (Res.) at 250 Vac (Maximum),
7A Relay optional
 Modulating Output: 0~10VDC Proportional
 Housing Material: PC + ABS plastic
 Operation Ambient Condition: 0 ~ 45℃, 90% RH
Non-condensing
 Storage Ambient Condition: -10 ~ 60℃, 90% RH
Non-condensing
 Dimensions: 86×86×15.5 mm (W×H×L)
 Protection class: IP20
Setting
Turn On / Turn Off
(Heating),
Room Temperature Setpoint
(Low), (Medium),
4
( Air venting)
(High),
AUTO
