HERZ Wireless control system
Room temperature regulation and radio receiver
Table of content
•
Digital wireless control system with 7 day timer (3 F799 06).................................................................................2
•
Analogue wireless control system (3 F799 04)...................................................................................................19
•
Receiver (for 3 F799 06 und 3 F799 04)............................................................................................................21
Important
Before starting work, the installer should carefully read this Installation & Operation Manual and make sure all instructions
contained therein are understood and observed. The thermostat should be mounted, operated and maintained by
specially trained personnel only. Personnel in the course of training are only allowed to handle the product under the
supervision of an experienced fitter. Subject to observation of the above terms, the manufacture shall assume the
liability for the equipment as provided by legal requirements. All instructions in this Installation & Operation Manual
should be observed when working with the controller. Any other application shall not comply with the regulations. The
manufacturer shall not be liable in case of an incompetent use of the control. Any modifications and amendments are
not allowed for safety reasons. The maintenance has to be performed by service companies or the manufacturer only.
The functionality of the controller depends on the model and equipment. This installation leaflet is part of the product
and has to be obtained.
Application
•
The thermostats are developed to control and manage all type of electrical heating systems or materials.
•
The controllers are designed for the use in residential rooms, office spaces and industrial facilities.
•
Verify that the installation complies with existing regulations, to ensure the proper use of the product.
Safety instructions
The thermostats have to be installed in dry places, as they are not resistant to spray or dripping water. A confusion of
the 230 V connections leads to an increased lethal risk and can damage the thermostat device as well as other devices.
datasheet Roomtemperature thermostat, Issue 0419
Page 1
Advertisement
Related Manuals for Herz F799
Summary of Contents for Herz F799
- Page 1 Room temperature regulation and radio receiver datasheet Roomtemperature thermostat, Issue 0419 Table of content • Digital wireless control system with 7 day timer (3 F799 06).................2 • Analogue wireless control system (3 F799 04)....................19 • Receiver (for 3 F799 06 und 3 F799 04)......................21 Important Before starting work, the installer should carefully read this Installation &...

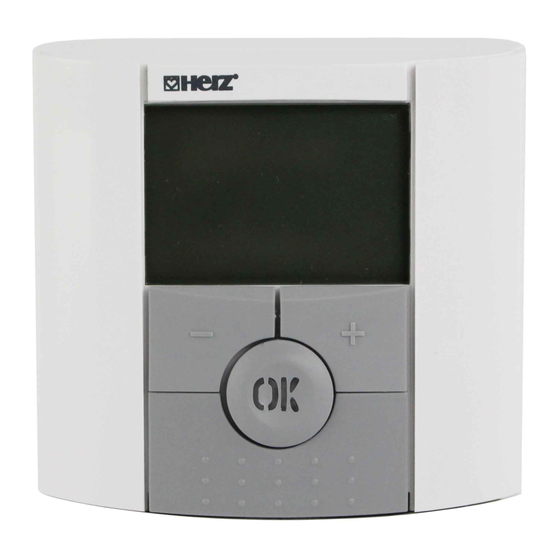

- Page 2 HERZ Wireless control system HERZ Digital wireless control system with 7 day timer datasheet 3 F799 06, Issue 0419 Dimensions in mm 83 mm 27 mm Describtion of the thermostats The electronic programmable thermostat with LCD display is specially designed to control different types of heating systems.
- Page 3 HERZ Wireless control system LED & Display Red fix: Heating demand (when backlight is lit up) Green flash: your validation is required Red flash: Error on sensor or batteries Status of the LED 1. Current day of the week 2. Operating mode menu (active mode is framed).
- Page 4 HERZ Wireless control system Technical specifications Operating temperature 0 °C - 40 °C Shipping and storage temperature - 10 °C to + 50 °C Electrical Protection IP30 Installation category Class II Pollution Degree Temperature precision 0,1 °C Setting temperature range 5 °C to 37 °C...
-
Page 5: Time And Date Adjustment
HERZ Wireless control system First installation This section will guide you through the set up of your thermostat for the first time. Batteries installation • Open the two side covers and insert the 2 AAA alkaline supplied batteries (or remove the small protection sticker, if the batteries are already installed in the compartment) •... - Page 6 HERZ Wireless control system Now you can check the RF distance, go to the room which must be regulated. Put your thermostat on the final position (On the wall or table...), then put the thermostat in the comfort mode (setting temperature position 37 °C). Close the door and go to the receiver to check if the new status of the thermostat has received.
-
Page 7: Automatic Mode
HERZ Wireless control system Working mode defintion Following your installation (Unit installed), your thermostat will offer different possibilities. Following the model of the receiver linked with your thermostat, you will have also different possibilities for the working and regulation mode (i.e. Floor regulation, air regulation combined with floor limitation, Pilot wire function…) •... - Page 8 HERZ Wireless control system Program mode Program followed Current day Programm of the day When you enter in the program mode, the first operation is to chose the program number with the (-) or (+) key. You can choose between a built-in program from P1 to P9 or a user program from U1 to U4.
- Page 9 HERZ Wireless control system Default setting: U1, U2, U3, U4 = Comfort for the whole week. Press on the edition key to customise a user program. Symbols and explanation for program creation • First step of the day ( Comfort temperature).
- Page 10 HERZ Wireless control system Now you are invited to choose the type of next steps of the program (blinking icons), 2 choices are possible: 1. Choice is to choose the sleep icon. (End of the day) 2. Choice is to choose the leaving icon, to add one step to the program during the day.
- Page 11 HERZ Wireless control system You are again invited to choose the type of next steps of the program (blinking icons): 1. choice is to choose the sleep icons. (End of the day) 2. choice is to choose the leaving icons, to add another step to the program during the day.
- Page 12 HERZ Wireless control system Holiday „Mode“ The holiday mode allows you to set the anti-freeze temperature for a selected number of days. You can adjust the duration in day “d” with (-) or (+), press (OK) to start. (Adjustable 1 to 99 days). The anti-freeze setting temperature is fixed and can be adjusted in the parameter menu number 06 ‘HG’, see chapter 6.
- Page 13 HERZ Wireless control system Keyboard lock function Use this function to prevent all changes of your settings (in a child room, public area…). To activate the key lock function, first press maintained the escape key ( ) and then press simultaneously on the edition key .
- Page 14 HERZ Wireless control system Number Default value & other possibilities rF INI: Radio configuration Sends the radio link signal in order to assign the RF Thermostat with it’s RF receiver. You also need to set simultaneously the receiver in the radio configuration mode (On a simple receiver press and maintain button until the green light lit’s up, see receiver leaflet).
- Page 15 HERZ Wireless control system Number Default value & other possibilities Clr ALL: Reset to Factory setting Press and maintain (Ok) key during 10s to reset Set points temperatures and user parameters in this menu to factory default settings. User programs will also be resetted.
- Page 16 HERZ Wireless control system Advanced installer‘s parameters menu External sensor Type NTC 10 kΩ at 25 °C (ß = 3950) Entrance in the thermostat menu Press 10 sec on the key In order to enter in the menu, press on the escape key...
- Page 17 HERZ Wireless control system Once you entered in the menu, go to the parameter you want to select, by using the keys (<) or (>) . Use the key (+) or (-) to edit and modify and confirm by pushing the (OK) key. To leave the parameter menu, go to the parameter “End” and press the (OK) key.
- Page 18 HERZ Wireless control system parameter advanced installation menu Number Description Description of the values Factory settings other Possibilities View of the measured values of RecS - - - the floor sensor connected to the “- -.- “ receiver. „No“ From 5 °C to FL.Lo - - -...
-
Page 19: Data Sheet
HERZ Wireless control system HERZ Analogue wireless control system datasheet , Issue 0419 3 F799 04 Dimension in mm 83 mm 27 mm 60 mm Thermostat description The Radio Frequency „RF“ thermostat (868 MHz) is aspecially designed to control different types of heating, in combination with a RF-Receiver. - Page 20 HERZ Wireless control system • Now you can check the RF distance, go to the room which must be regulated. Put your thermostat on the final position (On the wall or table...), then put the thermostat in the comfort mode (setting temperature position 35 °C).
- Page 21 The RF receiver is a wall mounting receiver, designed to control heating regulation system with a wireless thermostat. This couple (receiver + 3 F799 06 and 3 F799 04) can also be managed by a central to have full control of your heating installation.
- Page 22 HERZ Wireless control system Technical specifications Environmental temperatures: 0 °C - 40 °C Operating - 10 °C - 50 °C shipping and storage Power supply 230 VAC, 50 Hz Electrical protection Class II – IP 20 Output Relais 10 A 250 VAC...
- Page 23 HERZ Wireless control system • Combination 2: Receiver + RF Thermostat + RF Central unit for heating regulation (1) First step is to pair the RF thermostat to the Central unit. (2) Press the RF button on the receiver during 5 sec.
- Page 24 HERZ Wireless control system Hinweise: Upon the loss of the radio communication (RF alarm), the radio receiver moves a 20% heating cycle to prevent the system from freezing. If the receiver was OFF (OFF mode) before loss of radio communication, it will remain OFF.
