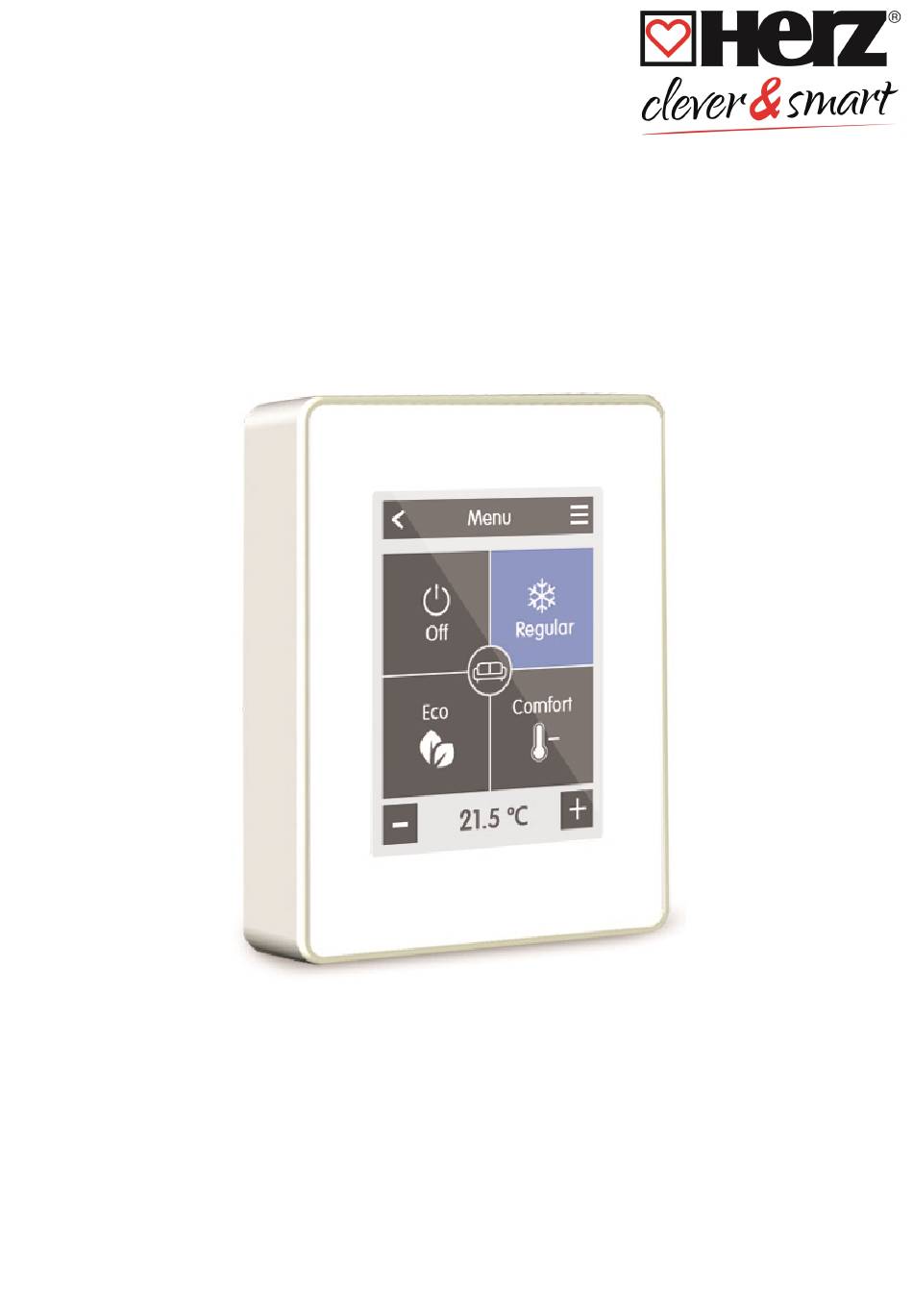

- Page 1 Installation and operating instruction HERZ clever&smart Room Controller Clima 3 F810 22 Read carefully before installation, commissioning and operation...
-
Page 2: Table Of Contents
HERZ clever&smart Room Controller Clima CONTENT Safety Instructions EG-Conformity General Instructions Changes to the Unit Warranty and Liability Disposal and Pollutants Description HERZ clever&smart Room Controller Clima Technical Data Scope of Supply Installation HERZ clever&smart Room Controller Clima installation Operation Room Overview Operating Mode... -
Page 3: Safety Instructions
HERZ clever&smart Room Controller Clima Safety Instructions EG-Conformity By affixing the CE mark to the unit the manufacturer declares that the HERZ clever&smart Room Controller Clima conforms to the following relevant safety regulations: EU low voltage directive 2014/35/EU EU electromagnetic compatibility directive 2014/30/EU EU RoHS Directive 2011/65/EU EU WEEE Directive 2012/19/EU (Reg.nr. -
Page 4: Warranty And Liability
HERZ clever&smart Room Controller Clima Warranty and Liability The Unit has been manufactured and tested with regard to high quality and safety requirements. The warranty and liability shall not include, however, any injury to persons or material damage that is attributable to one or more of the following causes:... -
Page 5: Description Herz Clever&Smart Room Controller Clima
HERZ clever&smart Room Controller Clima 2 screws 3,5 x 35 mm and 2 plugs 6 mm for wall installation. Terminating resistor (120 Ohm) pre-installed on one of the two CAN High/CAN Low connections, operating tool, switch HERZ clever&smart Room Controller Clima installation guide... -
Page 6: Installation
When wall mounting, make sure that the cables are kept as short as possible (max. 40 mm for direct wall mounting), as unnecessary vein loops in the HERZ clever&smart Room Controller Clima housing can lead to problems. When mounting on a switch box, make sure that the cables are kept as short as possible (strip cables max. - Page 7 Power supply 24 VDC, ensure correct polarity or it may cause damage to the unit! For the pin assignment of the CAN bus line on the HERZ clever&smart Control Box, please refer to the corresponding instructions for use or operating manual.
-
Page 8: Operation
Current room temperature. Outdoor temperature Displayed as soon as an outdoor sensor is used or an outdoor sensor is activated on a HERZ clever&smart Control Box menu "Expert > Control Box > Heating circuit > Sensor outdoor". Multiroom selection... -
Page 9: Operating Mode
HERZ clever&smart Room Controller Clima Operating Mode Overview > Operating Mode Menu Back/ Forward Navigate to the main menu Navigate back to the overview. Room Displays the selected space. Operating Modes The operating mode shown in colour is currently active and can be changed by selecting another mode. -
Page 10: Set Operation Hours
HERZ clever&smart Room Controller Clima Set Operation Hours Overview > Operating Mode > Menu > Timer Setting of individual heating and cooling times for the selected room. Menu Operating Modes Opens the copy function. The function Selection of the operating mode to... -
Page 11: Set Operation Hours Example
HERZ clever&smart Room Controller Clima Set Operation Hours Example Step 2 Select the desired mode (Normal, Comfort, Eco or Off) and then move your index finger over the desired time period. The selected period changes colour to the colour of the selected operating Step 1 mode after selection. -
Page 12: Expert Menu
HERZ clever&smart Room Controller Clima Expert Menu Overview > Operating Mode > Menu > Expert Select Language Set the device language Date & Time Setting the time and date and automatic summertime/wintertime Settings changeover Parameterisation of the heating/cooling system Service Values... -
Page 13: Settings
HERZ Assigning rooms to heating and cooling zones clever&smart Control Box Clima. This menu is only visible if this HERZ clever&smart Room Controller Clima was set as the "Configurator" ("Expert > Settings > Devices > Control box >... -
Page 14: Devices
HERZ clever&smart Room Controller Clima Devices Overview > Operating mode > Menu > Expert > Settings > Devices Clima systems must first be switched to 'heating' mode before another device can be added to the system during operation. Add Device... -
Page 15: Rooms
HERZ clever&smart Room Controller Clima Rooms Overview > Operating mode > Menu > Expert > Settings > Rooms Add Room Adding rooms Room 2 Setting the location, sensors and actuators of the respective room Overview > Operating mode > Menu > Expert > Settings > Room 2... -
Page 16: Sensors
HERZ clever&smart Room Controller Clima Sensors Overview > Operating mode > Menu > Expert > Settings > Rooms > Room 1 > Sensors > Temperature Icon Already selected sensor CAN ID of the Control Box + serial number Temperature sensor selection in the selected room Overview >... -
Page 17: Room Controller
HERZ clever&smart Room Controller Clima Room Controller Overview > Operating mode > Menu > Expert > Settings > Room Controller Activate and set additional functions. Thermostat 1 Switches the defined output to the set room / rooms depending on time and temperature. - Page 18 HERZ clever&smart Room Controller Clima Overview > Operating mode > Menu > Expert > Settings > Room Controller > Dehumidifier The dehumidifier function switches the defined output depending on the set humidity in the set room(s). Output Assign the output to be switched by the Operating Mode function.
- Page 19 HERZ clever&smart Room Controller Clima Overview > Operating mode > Menu > Expert > Settings > Room Controller > Timer 1 The function Timer 1-2 switches the defined output depending on the set times. Output Assign the output to be switched by the function.
- Page 20 HERZ clever&smart Room Controller Clima Overview > Operating mode > Menu > Expert > Settings > Room Controller > Fan coil 1 The fan coil function controls convection heating and cooling via the 0-10V/PWM outputs . Output Assign the output to be switched by the function.
-
Page 21: Service Values
HERZ clever&smart Room Controller Clima Service Values Overview > Operating mode > Menu > Expert > Service values Message Log Display of the error memory CAN Bus Status CAN bus status display System Update Enables an update of all Room Controller and Control Boxs networked in the private CAN network. -
Page 22: Support
CAN high and CAN low connections for terminating the CAN bus? No additional function can be assigned to Is the selected function already assigned to another output? Is the output already assigned to another function? the analogue outputs V1/V2 of the HERZ Room Controller Clima WiFi. Notes... - Page 23 Subject as a basic principle to errors and technical changes. Date and time of installation: Name of installation company: Space for notes: Herz Armaturen Ges.m.b.H. Richard-Strauss-Straße 22 1230 Vienna, Austria +43 (0) 1 616 26 31 - 0 office@herz.eu...
