FLUENT™
Centerset Lavatory Faucet
with Speed Connect
Congratulations on purchasing your American Standard faucet
with the Speed Connect drain, a feature found only on American
Standard faucets.
Speed Connect Drain*
• 1/3 of the parts, installs in 1/3 of the time
• No tools needed
• Never needs adjustment
• Guaranteed to seal properly the first time, every time.
*Your new American Standard faucet is designed to work only with
the Speed Connect drain.
To ensure that your installation proceeds smoothly-please read these instructions
carefully before you begin.
Recommended tools
Flat Head Screwdriver
1

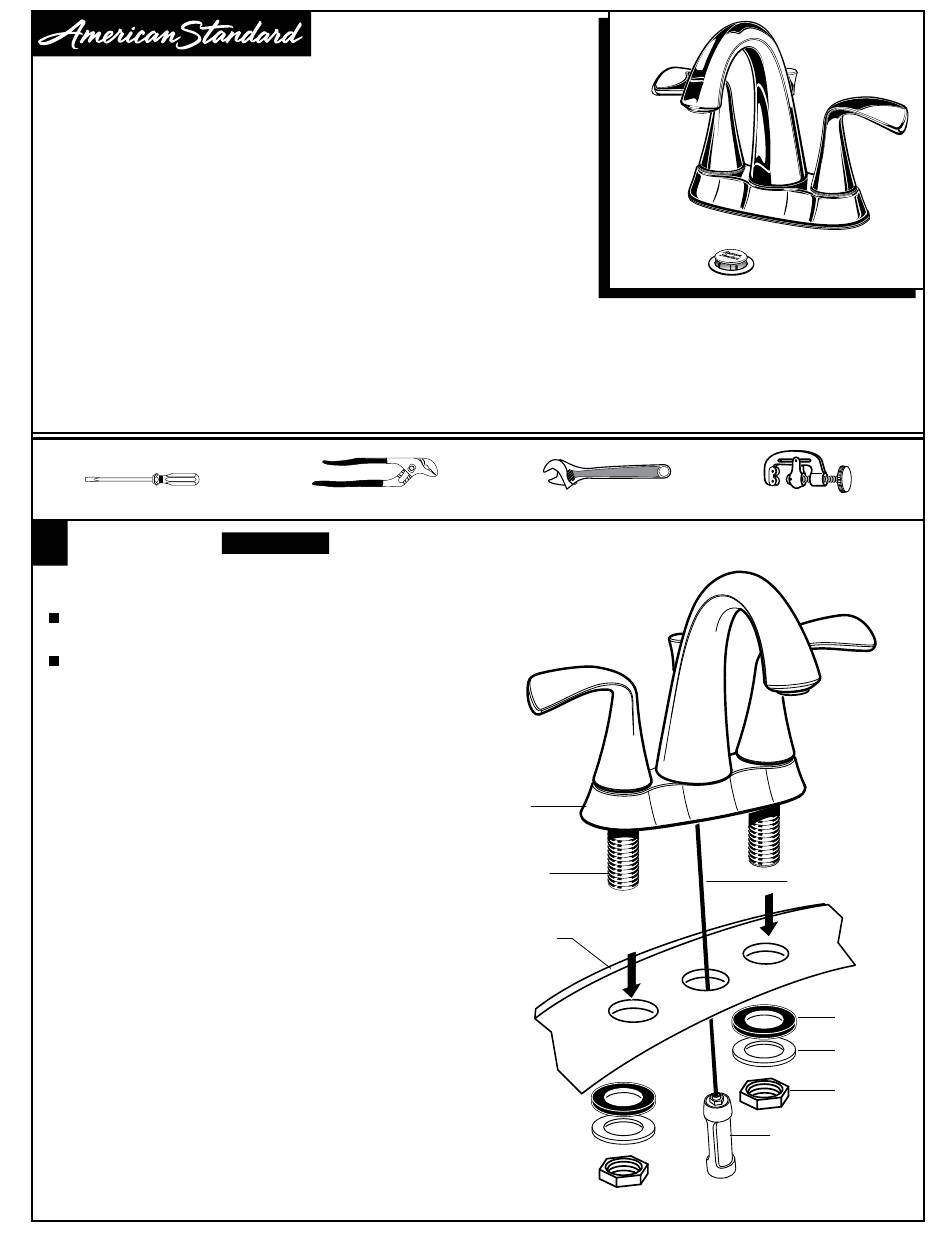

INSTALL FAUCET
Turn off hot and cold water supplies before beginning.
Insert FAUCET (1) and CABLE CONNECTOR (2) through
mounting holes of Sink or Mounting Surface.
Assemble RUBBER WASHER (3), METAL WASHER (4) and
LOCKNUTS (5) onto SHANKS (6) from under
side of Sink. Center FAUCET (1) and tighten
LOCKNUTS (5) firmly.
Installation
Instructions
®
Drain
Slip Jaw Pliers
Turn off hot and cold water
CAUTION
supplies before beginning.
7186.203
Adjustable Wrench
1
6
LAVATORY OR
MOUNTING
SURFACE
1
Certified to comply with ANSI A112.18.1
M965633 Rev. 1.2 (3/22)
Tubing Cutter
POP-UP
CABLE
3
4
5
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLUENT 7186.203 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for American Standard FLUENT 7186.203

  • Page 1 Certified to comply with ANSI A112.18.1 • Guaranteed to seal properly the first time, every time. M965633 Rev. 1.2 (3/22) *Your new American Standard faucet is designed to work only with the Speed Connect drain. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
  • Page 2 INSTALL POP-UP DRAIN Fig. A. Fig. B. REAR OF SINK Remove CLEAR PLASTIC COVER (1). Remove CARDBOARD SPACER (2) from under DRAIN Fig. A. POP-UP (3). Drop DRAIN BODY (4) through sink drain hole. Make sure WHITE FOAM GASKET (5) Fig.
  • Page 3 ATTACH CABLE CONNECTOR Fig. A. Fig. B. Thread CABLE CONNECTOR (1) clockwise onto CABLE ATTACHMENT POINT (2) and hand tighten. Fig. A. Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4” O.D. Fig.
  • Page 4: Care Instructions

    TEST INSTALLED FITTING With HANDLES (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. Remove AERATOR (3). Operate both HANDLES (1) to flush water lines thoroughly. Replace AERATOR (3). CHECK DRAIN CONNECTIONS Operate POP-UP KNOB (4) and fill lavatory with water. Check that DRAIN STOPPER (5) makes a good seal and retains water in SINK.
  • Page 5: Troubleshooting Guide

    Speed Connect ® Drain Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
  • Page 6: Unlocked Mode

    To install the stopper in “Unlocked” mode, insert the Stopper into the Drain so that the Plastic Loop is facing toward the front of the Sink and the American Standard logo is facing rear. Rotate Stopper slightly if necessary so that the Stopper slides all the way down.
  • Page 7: Installation Du Robinet

    • Garantie d’un bon scellage dès la première fois, à chaque fois. *Votre robinet American Standard est conçu pour fonctionner uniquement avec le drain à raccordement rapide Speed Connect. Pour que l'installation se déroule sans problème, veuillez lire attentivement ces instructions avant de commencer.
  • Page 8 INSTALLATION DU RENVOI Fig. B. ARRIÈRE DE Fig. A. L’ÉVIER Retirer le COUVERCLE EN PLASTIQUE ù TRANSPARENT (1). Enlever l’ENTRETOISE EN CARTON (2) du RENVOI (3). Fig. A. Passer le CORPS DE RENVOI (4) par l’orifice d’évacuation de l’évier. Vérifier que le JOINT BLANC (5) est bien sous le joint du CORPS DE RENVOI (4).
  • Page 9 FIXER LE CONNECTEUR DE CÂBLE Fig. A. Fig. B. Visser, dans le sens horaire, le CONNECTEUR de CÂBLE (1) dans la CONNEXION du CORPS DE DRAIN (2) et serrer à la main. Fig. A. L'installation de l'ÉVACUATION MÉCANIQUE est maintenant terminée. Fig. B. Remarque : Le diamètre de la pièce de raccordement de l'évacuation mécanique est 1-1/4po O.D.
  • Page 10: Instructions D'entretien

    TESTER LE RACCORDEMENT Lorsque les POIGNÉES (1) sont en position fermée, ouvrir l’ALIMENTATION D’EAU (2) et vérifier l'étanchéité des raccordements. Enlever l’AÉRATEUR (3). Actionner les deux POIGNÉES (1) pour faire circuler l'eau complètement. Reposer l’AÉRATEUR (3). VÉRIFIER LES RACCORDEMENTS DU DRAIN Actionner le BOUTON DE RENVOI (4) et remplir le lavabo d’eau.Vérifier que la BUTÉE DE RENVOI (5) se fixe bien et retient l’eau dans l’ÉVIER.
  • Page 11 Drain Speed Connect ® Guide de dépannage Si l'évier ne retient pas l'eau même lorsque la butée est en position « abaissée » : • Suivre les PROCÉDURES DE RÉGLAGE DU CÂBLE. Si la butée ne se soulève pas complètement ou si l’évier se vide trop lentement : •...
  • Page 12 Pour installer la butée en position « verrouillée », l'insérer la butée dans le drain de manière à ce que la boucle en plastique soit face à l'arrière de l'évier et que le logo American Standard soit face à l'avant. Au besoin, LOGO tourner légèrement la butée pour qu'elle glisse jusqu'en bas.
  • Page 13: Instrucciones De Instalación

    • Se garantiza que sella correctamente la primera vez, siempre. *Su nuevo grifo American Standard está diseñado para funcionar solamente con el desagüe Speed Connect. Hallará consejos útiles para extraer el desagüe actual en la sección Solución de Problemas de estas instrucciones.
  • Page 14 INSTALACIÓN DEL PARTE DESAGÜE AUTOMÁTICO Fig. A. Fig. B. TRASERA DEL LAVABO Extraiga la CUBIERTA PLÁSTICA TRANSPARENTE (1). Extraiga el SEPARADOR DE CARTÓN (2) de debajo del DESAGÜE AUTOMÁTICO (3). Fig. A. Deje caer el CUERPO DEL DESAGÜE (4) a través del orificio de desagüe del lavabo.
  • Page 15 COLOCACIÓN DEL CONECTOR DEL CABLE Fig. A. Fig. B. Enrosque el CONECTOR DEL CABLE (1) hacia la derecha en la CONEXIÓN DEL CUERPO DEL DESAGÜE (2) y apriete con la mano. Fig. A. La instalación del nuevo DESAGÜE AUTOMÁTICO está completa. Fig. B. Nota: La cola del desagüe automático tiene 1-1/4"...
  • Page 16 PRUEBA DEL ACCESORIO INSTALADO Con los MANDOS (1) cerrados, abra las líneas de SUMINISTRO DE AGUA (2) y revise si hay fugas en las conexiones. Retire el AIREADOR (3). Accione los dos MANDOS (1) para hacer correr el agua por los conductos. Vuelva a colocar el AIREADOR (3).
  • Page 17: Guía De Solución De Problemas

    Desagüe Speed Connect ® Guía de Solución de Problemas Si el lavabo no retiene el agua, aun cuando el tapón está en la posición “inferior”: • Siga el PROCEDIMIENTO DE AJUSTE DEL CABLE. Si el tapón no sube completamente o si el lavabo drena con demasiada lentitud: •...
  • Page 18 Para instalar el tapón en el modo “bloqueado”, inserte el tapón en el drenaje de modo que el bucle plástico esté frente a la parte posterior del lavabo y que el logotipo de American Standard esté orientado hacia adelante. Gire levemente el tapón si es necesario de LOGOTIPO modo que el tapón se deslice completamente hacia abajo.
