INSTALLATION AND MAINTENANCE INSTRUCTIONS

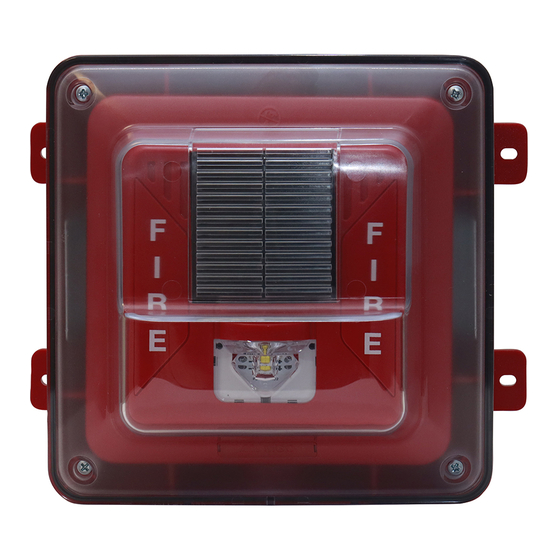

SPPS-204 SERIES WALL SPEAKER-STROBE
SPP-204 SERIES WALL SPEAKER
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE
ABOUT THIS MANUAL
This manual is included as a quick reference for installation. For further
information on the use of this device with a FACP, please refer to the
panel's manual.
Note: This manual should be left with the owner/operator of this
equipment.
SPEAKER/SPEAKER STROBE DESCRIPTION
The SPPS-204 speaker-strobe is designed to meet UL1480/ULC S541
requirements for speakers and UL1638 /ULC S526, UL 1638A/CSA C22.2
No.205 requirements for visual notification appliances. The SPP-204
speaker is designed to meet UL1480/ULC S541 requirements for
speakers.

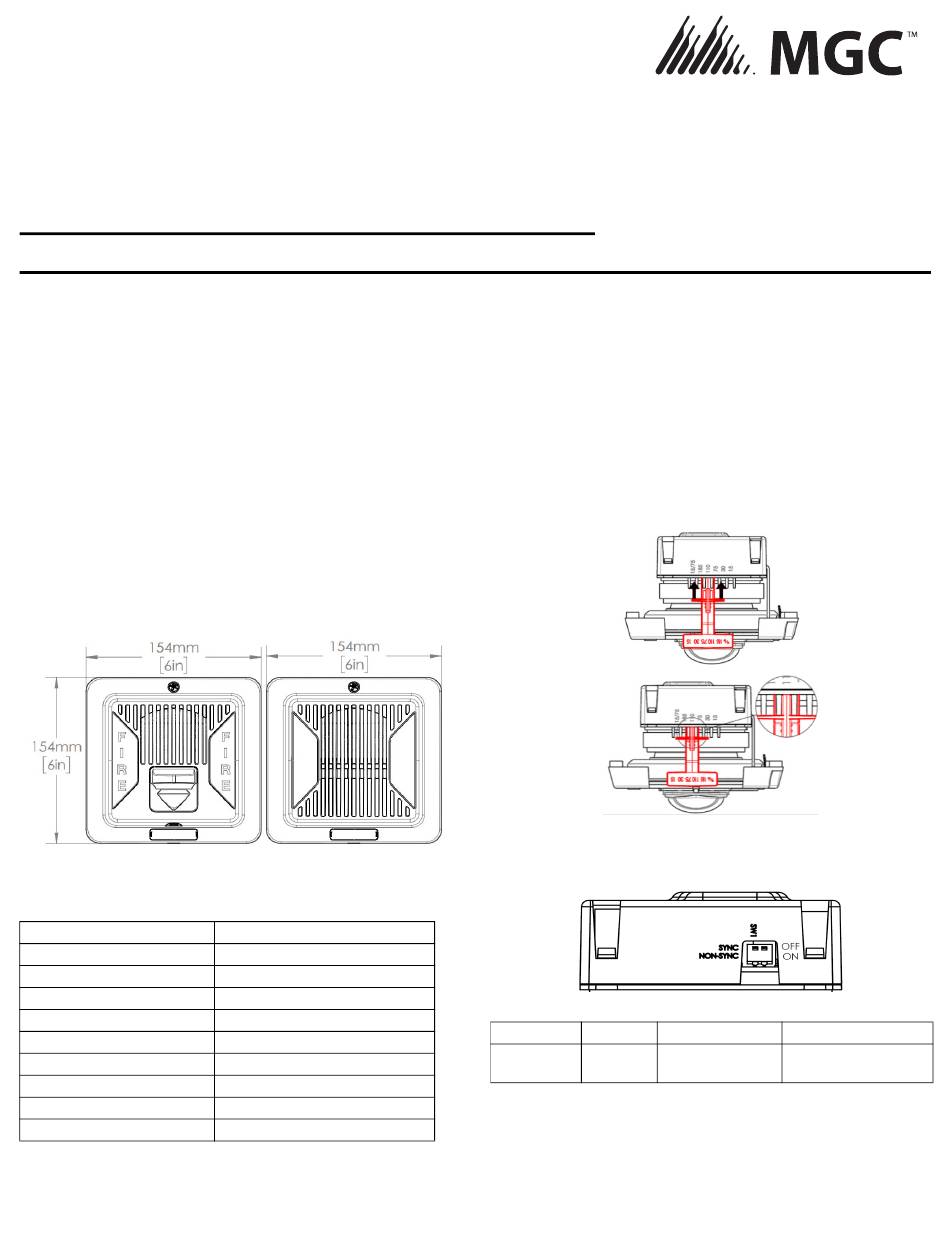

FIGURE 1: MODEL FRONT:
SPPS-204 Series
Table 1: SPECIFICATIONS
Operating temperature
Humidity range
Strobe flash rate
Nominal strobe voltage
Operating voltage range
Nominal speaker voltage
Speaker Size
Power Setting
Speaker Frequency range
Terminal wire gauge
*Note: For FWR signaling use an MGC panel.
1
SPP-204 Series
0⁰C to 49⁰C (32⁰F to 122⁰F)
0% to 93%
1 Hz (1 flash per sec.)*
Regulated 24VDC/VFWR
16-33 VDC/VFWR
25V or 70.7Vrms
4"
¼, ½, 1, 2 W
400 -4000 Hz
12-22 AWG
25 Interchange way, Vaughan Ontario. L4K 5W3
SETTING THE CANDELA (SPPS series only)
The candela can be set to 15, 30, 75, 110, 185, 15/75 for SPPS-204-25
and SPPS-204-70 models.
Note: 185cd setting is for General Signaling only.
The factory default setting is 15 for SPPS-204-25/70.
1. Pull out the candela selector from the device.
2. Re-insert the selector tab into the notch that is labeled with the
desired candela setting (when removing or inserting the candela
selector, ensure to keep it straight).
Note: Select the candela setting prior to installing the device in the
mounting plate.
FIGURE 2: INSERTING CANDELA SELECTOR
SETTING THE DIP SWITCHES
FIGURE 3: DIP SWITCH
Table 2: DIP SWITCH
DIP
Switch 1 Input*
*Note: Use "SYNC" when flash synchronization is required, either through
a sync module or built-in synchronization on the control unit.
Use "NON-SYNC" when the appliances do not need to be synchronized.
Note: DIP switch 1 default setting is OFF, synchronized.
Note: DIP switch 2 is not used. By default it is OFF.
Phone: 905.660.4655; Fax: 905.660.4113
Web: www.mircomgroup.com
OFF ON
Regulated 24VDC/
Synchronized
FWR (Non-sync.)
LT-6917 rev 2 3/2/23
