MGC SPPS-204 Series Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
SPPS-204 Series
SPP-204 Series

ABOUT THIS MANUAL

This manual is included as a quick reference for
installation. For further information on the use of this
device with a FACP, please refer to the panel's manual.
Note: This manual should be left with the owner/operator
of this equipment.

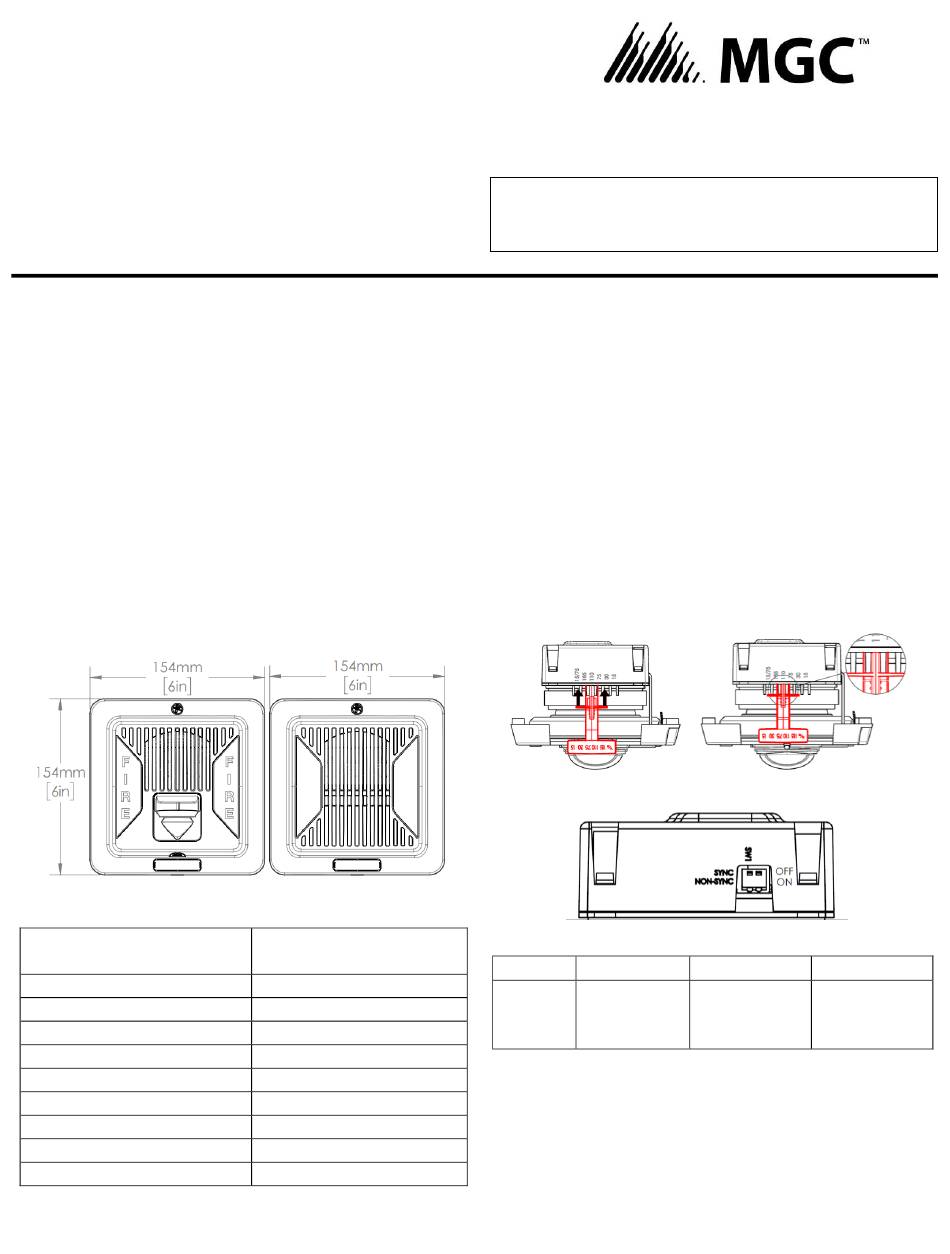

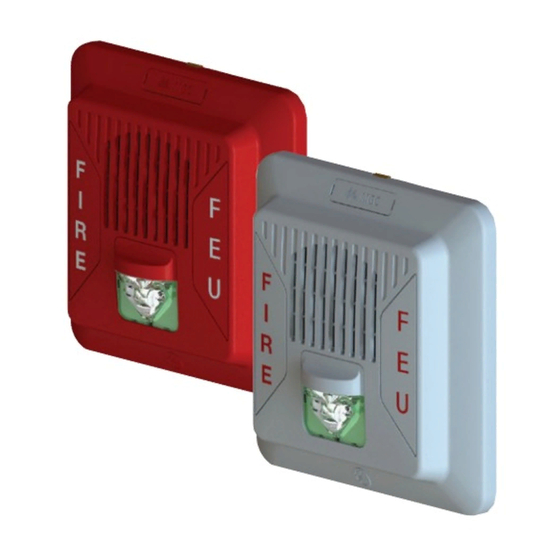

SPEAKER/SPEAKER STROBE DESCRIPTION

The SPPS-204 speaker-strobe is designed to meet
UL1480/ULC S541 requirements for speakers and UL1638
/ULC S526, UL 1638A/CSA C22.2 No.205 requirements for
visual notification appliances. The SPP-204 speaker is
designed to meet UL1480/ULC S541 requirements for
speakers.
Figure 1 MODEL FRONT
SPPS-204 Series

Table 1 SPECIFICATION

Operating temperature
Humidity range
Strobe flash rate
Nominal strobe voltage
Operating voltage range
Nominal speaker voltage
Speaker Size
Power Setting
Speaker Frequency range
Terminal wire gauge
*Note: For FWR signaling use a Mircom panel.
LT-6917 Rev 1.1 Jan 22, 2021
Wall Speaker-Strobe
Wall Speaker
SPP-204 Series
0⁰C to 49⁰C
(32⁰F to 122⁰F)
0% to 93%
1 Hz (1 flash per sec.)*
Regulated 24VDC/VFWR
16-33 VDC/VFWR
25V or 70.7Vrms
4"
¼, ½, 1, 2 W
400 -4000 Hz
12-22 AWG
25 Interchange way, Vaughan, Ontario. L4K 5W3
Phone: 905.660.4655; Fax: 905.660.4113
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE

SETTING THE CANDELA (SPPS series only)

The candela can be set to 15, 30, 75, 110, 185, 15/75 for
SPPS-204-25 and SPPS-204-70 models.
Note: 185cd setting is for General Signaling only.
The factory default setting is 15 for SPPS-204-25/70.
1. Pull out the candela selector from the device.
2. Re-insert the selector tab into the notch that is labeled
with the desired candela setting (when removing or
inserting the candela selector, ensure to keep it straight).
Note. Select the candela setting prior to installing the
device in the mounting plate
Figure 2 INSERTING CANDELA SELECTOR

SETTING THE DIP SWITCHES

Figure 3 DIP SWITCH
Table 2 DIP SWTICH
DIP
Switch 1 Input*
*Note: Use "SYNC" when flash synchronization is required,
either through a sync module or built-in synchronization
on the control unit.
Use "NON-SYNC" when the appliances do not need to be
synchronized.
Note: DIP switch 1 default setting is OFF, synchronized.
Note: DIP switch 2 is not used. By default it is OFF.
