MGC SPPS-104 Series Installation And Maintenance Instructions

INSTALLATION AND MAINTENACE INSTRUCTIONS
SPPS-104 Series [H]
SPP-104 Series
ABOUT THIS MANUAL
This manual is included as a quick reference for
installation. For further information on the use of this
device with a FACP, please refer to the panel's manual.
Note: This manual should be left with the owner/operator
of this equipment.
SPEAKER/SPEAKER STROBE DESCRIPTION
The SPPS-104 speaker-strobe and the SPP-104 speaker are
designed to meet UL1480, UL1638 /ULC S541, ULC S526
requirements for visual and audible notification appliance.

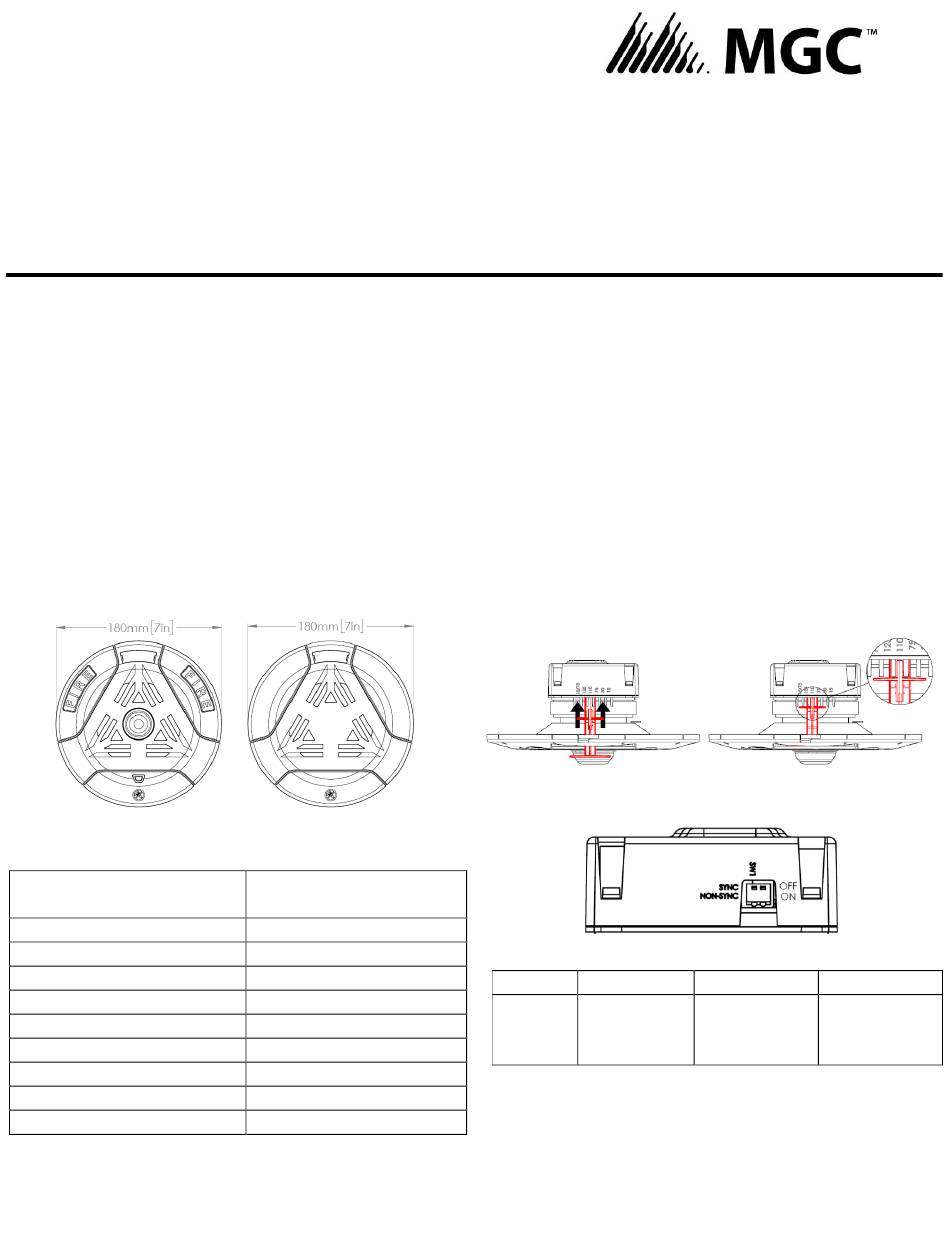

Figure 1 MODEL FRONT
SPPS-104 Series
Table 1 SPECIFICATION
Operating temperature
Humidity range
Strobe flash rate
Nominal strobe voltage
Operating voltage range
Nominal speaker voltage
Speaker Size
Power Setting
Speaker Frequency range
Terminal wire gauge
*Note: For FWR signaling use a Mircom panel.
LT-6916 Rev 1.0 MAY 21, 2020
Ceiling Speaker-Strobe
Ceiling Speaker
SPP-104 Series
0⁰C to 49⁰C
(32⁰F to 122⁰F)
0% to 93%
1 Hz (1 flash per sec.)
Regulated 24VDC/VFWR*
16-33 VDC/VFWR
25V or 70.7Vrms
4"
¼, ½, 1, 2 W
400 -4000 Hz
12-22 AWG
25 Interchange way, Vaughan, Ontario. L4K 5W3
Phone: 905.660.4655; Fax: 905.660.4113
CAUTION / ATTENTION
DO NOT PAINT OR ALTER FACTORY APPLIED FINISH IN ANY WAY
NE PAS PEINDRE OU MODIFIER LA FINITION ORIGINALE
SETTING THE CANDELA (SPPS series only)
The candela can be set to 15, 30, 75, 110, 125, 15/75 for
SPPS-104-25 and SPPS-104-70 models.
The candela can be set to 50, 75, 90, 130, 185, 15/75 for
SPPS-104-25H and SPPS-104-70H models.
The factory default setting is 15 for SPPS-104-25/70
models, and 50 for SPPS-104-25H/70H models.
1. Pull out the candela selector from the device
2. Re-insert the selector tab into the notch that is labeled
with the desired candela setting (when removing or
inserting candela selector, ensure to do it straight).
Figure 2 INSERTING CANDELA SELECTOR
SETTING THE DIP SWITCHES
Figure 3 DIP SWITCH
Table 2 DIP SWTICH
DIP
Switch 1 Input*
*Note: Use "SYNC" when flash synchronization is required,
either through a sync module or built-in synchronization
on the control unit.
Use "NON-SYNC" when the appliances do not need to be
synchronized.
Note: DIP switch 1 default setting is OFF, synchronized.
Note: DIP switch 2 is not used.
Web: www.mircom.com
OFF ON
Regulated
Synchronized 24VDC/FWR
(Non-sync.)
