9.2.4.1 Initial Installation of STREAM Dongle (Android Operating System)
Switch OFF the measuring computer. Separate the STREAM dongle from
USB port of measuring computer, and press the lateral button. Keep the
lateral button pressed until a status LED on the upper face of the
STREAM dongle is lit in white. As soon as the button is released, the status
LED starts flashing, showing that the WLAN network has been prepared.
Start 'TERRATEST' app on smartphone/tablet. Select the
initial screen for settings.

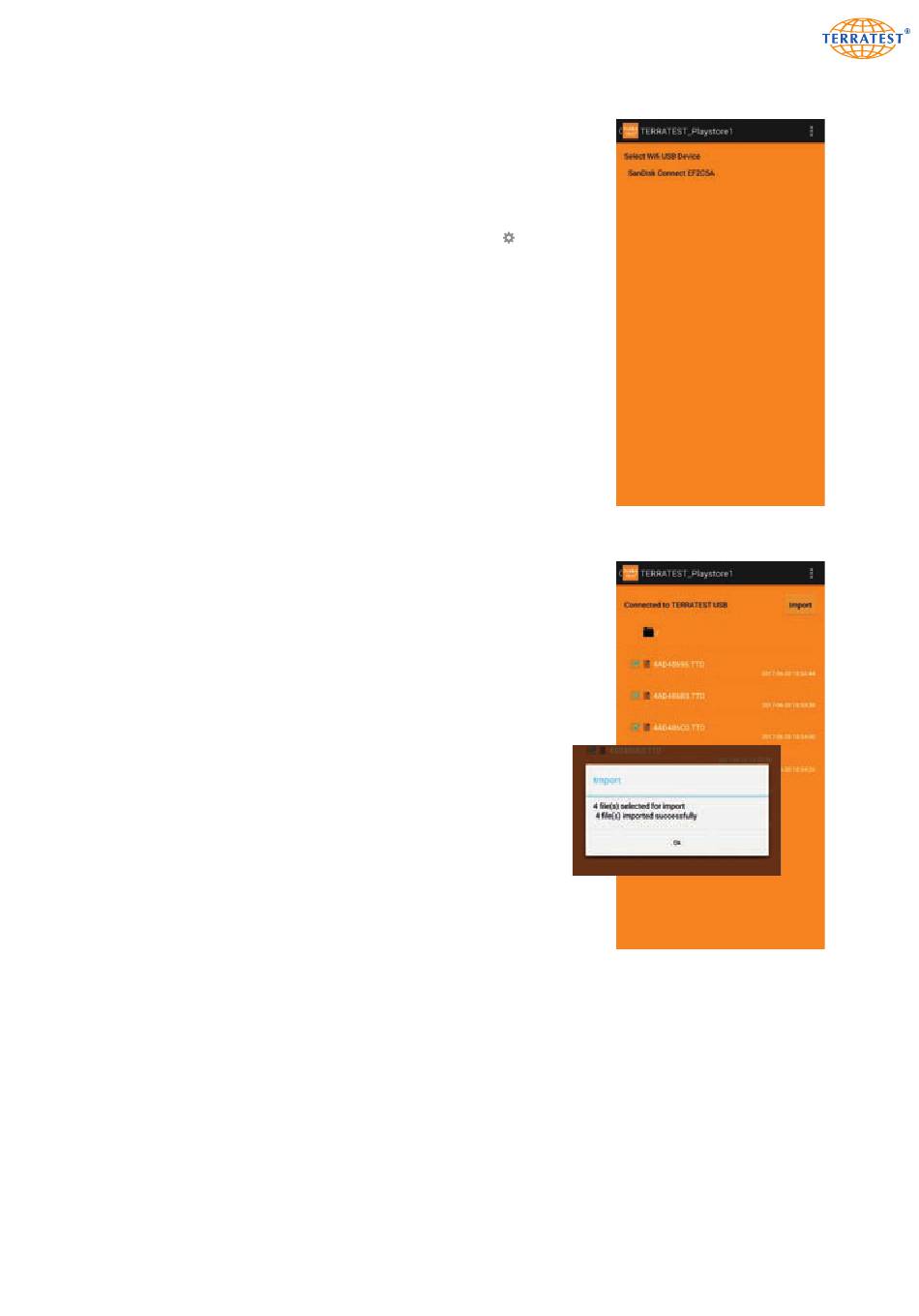

Select button 'TERRATEST USB name', and then the desired STREAM
dongle, its name starts with 'SanDisk Connect' and ends with six digit
hexadecimal number. This procedure has to be carried out only once.
Press the navigation button above at the left side. Setting is stored, the
STREAM dongle is stored with name 'TERRATEST' in the App, and the
settings screen appears again. Press the navigation button once more to
return to initial screen.
9.2.4.2 Connection and Import (Android Operating System)
First create a new or edit an existing construction site profile (refer to
page 87).
Switch OFF the measuring computer. Separate the STREAM dongle from
USB port of measuring computer, and press the lateral button. Keep the
lateral button pressed until a status LED on the upper face of the STREAM
dongle is lit in white. As soon as the button is released, the status LED
starts flashing, showing that the WLAN network has been prepared.
Start 'TERRATEST' app on smartphone/tablet. On initial screen,
select symbol 'Connection & Import'. The App is connected to the
STREAM dongle and then shows its content. Select the desired fol-
der and mark measuring data intended to be imported. Press
'Import' button. If the import has been successfully carried out, a
corresponding status message is displayed.
Press the navigation button above at the left side twice. The WLAN con-
nection of the STREAM dongle is separated, and the initial screen appe-
ars again. Use button 'Measuring data' to view and send the imported
data.
-symbol on
TERRATEST USB Name
Import of selected files
91
