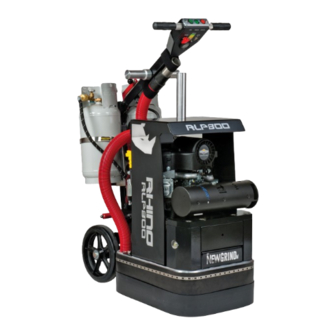

resurfacing machine
operator's Manual
equipment usages
• Concrete leveling, grinding and polishing
• Glue, thinset and mastic removal
• Terrazzo grinding and polishing
• Stone grinding and polishing
For your personal safety, READ and UNDERSTAND before using.
!
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Related Manuals for Newgrind RHINO RLP800
Summary of Contents for Newgrind RHINO RLP800
-
Page 1: Equipment Uses

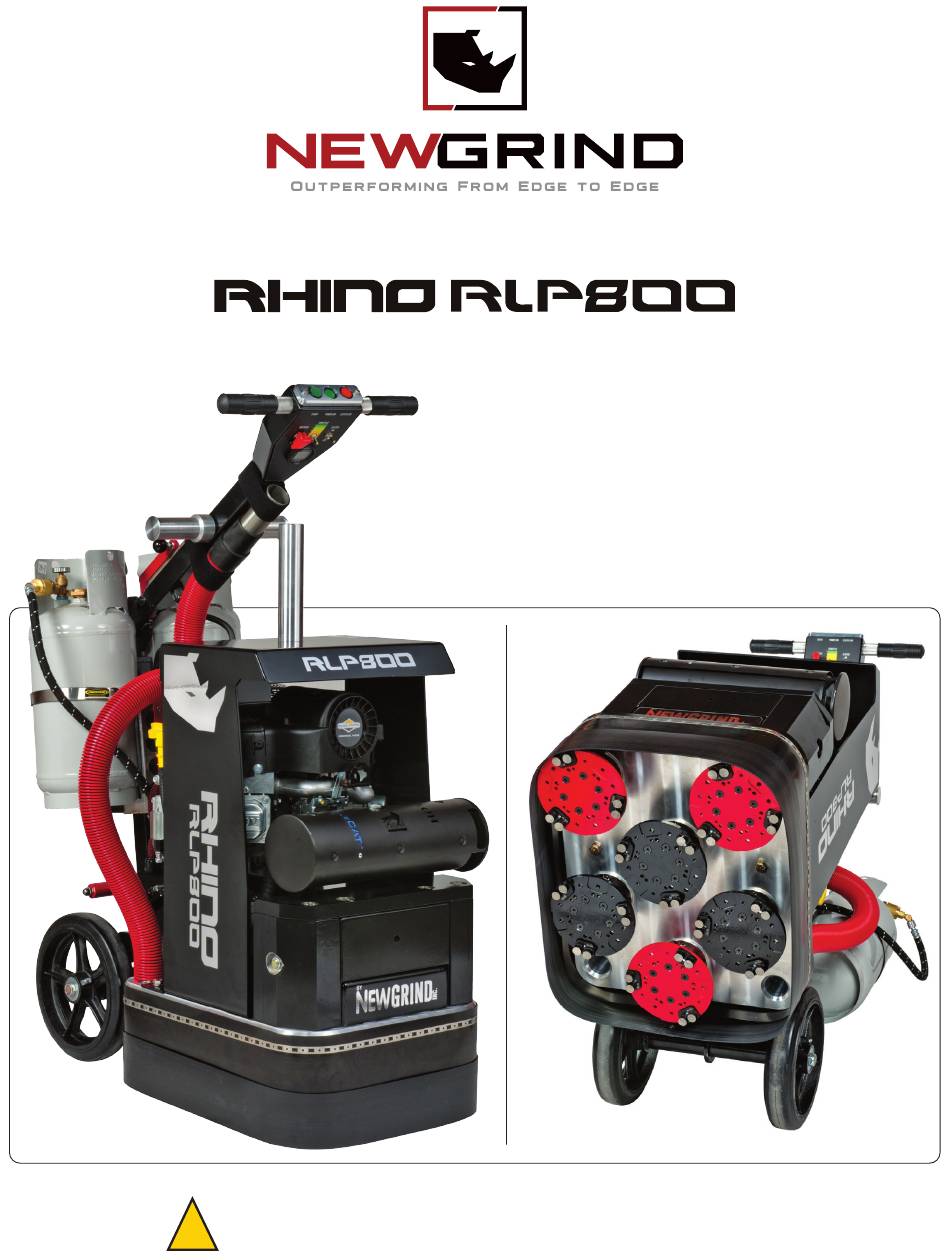

resurfacing machine operator's Manual equipment usages • Concrete leveling, grinding and polishing • Glue, thinset and mastic removal • Terrazzo grinding and polishing • Stone grinding and polishing For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. -
Page 2: Table Of Contents
Rhino RLP800 user Manual Table of Contents EQUIPMENT USES....................RLP800 DIAGRAM ....................RLP800 BOTTOM DIAGRAM ................MACHINE SPECIFICATIONS ................. Tooling ......................Average Production Rates................GENERAL SAFETY INSTRUCTIONS ..............Work Area Safety ..................Electrical Safety ................... Personal Safety ..................... Equipment Use and Care ................ -
Page 3: Rlp800 Diagram
Rhino RlP800 diagram ENGINE START BUTTON POWER ON LIGHT CLUTCH ON LIGHT HAND GRIPS CLUTCH ON/OFF SWITCH VARIABLE THROTTLE TACHOMETER SPEED ADJUSTMENT VACUUM CONNECTOR PORT BATTERY ON/OFF SWITCH BIASED WEIGHT-KIT POSTS MULTI ARTICULATING HANDLE UPPER RATCHET DUAL PROPANE CYLINDERS BATTERY QUICK DISCONNECT... -
Page 4: Rlp800 Bottom Diagram
Rhino RLP800 bottom diagram HYTREL COUPLER SPIDER GEAR MAIN DRIVE SPROCKET ADJUSTABLE IDLER SPROCKETS X 2 QUICK-CHANGE DRIVE BELT (1 ON EACH SIDE) SECONDRY DRIVE SPROCKETS X 5 SINGLE OR DOUBLE GROMMET TOOL PLATE MOUNTING SYSTEM COUNTER-CLOCKWISE SPINNING RHINO TOOL... -
Page 5: Machine Specifications
Rhino RLP800 machine specifications POWER Propane - 2 x 3.2 Gallon Cylinders MACHINE WEIGHT 800 lbs BIASED WEIGHT KIT MAX WEIGHT 180 lbs COMBINED WEIGHT 980 lbs DISC SPEED 200-900 rpm VARIABLE SPEED CONTROL NUMBER OF GRINDING HEADS COUNTER-ROTATING HEADS... -
Page 6: General Safety Instructions
Rhino RlP800 MACHINE specifications continued MODEL SPECIFICATIONS Battery (APP16L) 12V 16Ah Engine Briggs and Stratton 810CC LPG Vapor Only Tank (PS5306TC) 3.2 Gallon Disc Diameter 7" / 178mm Disc Speed (RPM 200 - 900 Machine Width 20" / 508mm Weight... -
Page 7: Personal Safety
Rhino RlP800 safety instructions continued Personal Safety 1. Stay alert, watch what you are doing and use common sense when operating equipment. Do not use equipment while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating equipment may result in serious personal injury. -
Page 8: Specific Safety Rules
Rhino RlP800 safety instructions continued SPECIFIC SAFETY RULES DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to equipment safety rules. If you use this equipment unsafely or incorrectly, you can cause serious personal injury. -
Page 9: Stopping The Equipment
Rhino RlP800 machine operation continued 3. Make sure clutch switch is off (if its on the orange light will come on) Also make sure that you have the correct tooling on the tool plates and that the drive pins are properly seated into the grommets. -
Page 10: Handle Adjustment
Rhino RlP800 machine operation continued Handle adjustment: To adjust the handle, pull either hand latch or depress foot latch on the handle and move handle up or down to the desired position. Make sure that latch teeth engage completely when the desired position is achieved. -
Page 11: Monthly Maintenance
Rhino RlP800 maINTENANCE continued Monthly: - Inspect handle wires for damage. - Clean or replace air filter. - Blow off engine fan with compressed air (30psi or less). - Remove tool plate holders and wipe down seal plates with a damp cloth. Do not use any sharp object or abrasive pad to clean the seal plates. -
Page 12: Connects To Oil Pressure Switch Diagram
Rhino RlP800 TROUBLE SHOOTING DATA ANALYZER (EDA) continued BLOCK CONNECTOR RLP800 TOP HANDLE WIRE Orange + Black - Red + White/Black White Blue Red/Black + Green + Battery + Battery - EmissionAN+ Actuator - Actuator + Tachometer S Clutch +... -
Page 13: Connects Direct To Gas Valve Diagram
Rhino RlP800 TROUBLE SHOOTING DATA ANALYZER (EDA) continued - If EDA is wired as a warning light the continuous glowing red light while running indicates something is wrong with the engine. Note: EDA samples the fuel to air ratio every second, using five second sampling average to determine all components are functioning properly. -
Page 14: Limited Equipment Warranty Of Sale
Liquid Propane, are also not covered under warranty. NewGrind Inc. will, at its option, repair or replace, at the NewGrind Inc. factory or at a point designated by NewGrind Inc. any part which shall appear to the satisfaction of NewGrind Inc. inspection to have been defective in material or workmanship. -
Page 15: Force Majeure
NewGrind Inc. will not in any event be liable to the user, any successors in interest or any beneficiary or assignee relating to this sale for any consequential, incidental, indirect, special or punitive damages arising... -
Page 16: Terms & Conditions
Purchaser and shall be repaid to Seller. 2. PAYMENT TERMS Payment terms are as follows: NewGrind Inc. Machines - Payment prior to delivery. *All past due accounts are subject to a late payment fee of 1.5% per month or a maximum allowed by law if different, along with the expenses incidental to collection including reasonable attorney’s fees and costs. -
Page 17: Agreements
Rhino RlP800 terms & Conditions continued 6. PRODUCTS ORDERED IN ERROR Products may be returned, provided that claim is made, and Seller is notified within 7 days of receipt of Products, and the Products are in original buyer’s possession not more than 30 days prior to return, subject to Seller’s approval.
