RLP800 Users Manual

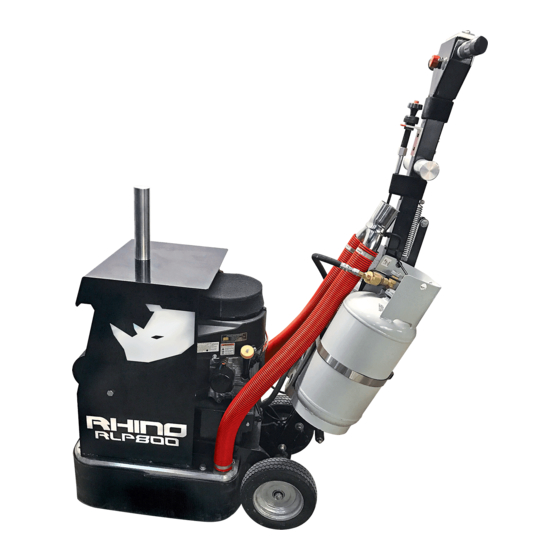

RHINO RLP800
USER MANUAL
Equipment Uses
Concrete leveling, grinding and polishing
Terrazzo grinding and polishing
Stone grinding and polishing
Hardwood grinding, sanding and polishing
Glue, Thinset and mastic removal
Address:
Contact:
103B-81 Golden Drive
1-888-467-0242
Coquitlam, BC
sales@newgrind.com
Canada V 3K 6R2
Assembled in Canada using only the highest-quality USA components
1
Advertisement
Table of Contents
Related Manuals for Newgrind RHINO RLP800
Summary of Contents for Newgrind RHINO RLP800
-
Page 1: Equipment Uses

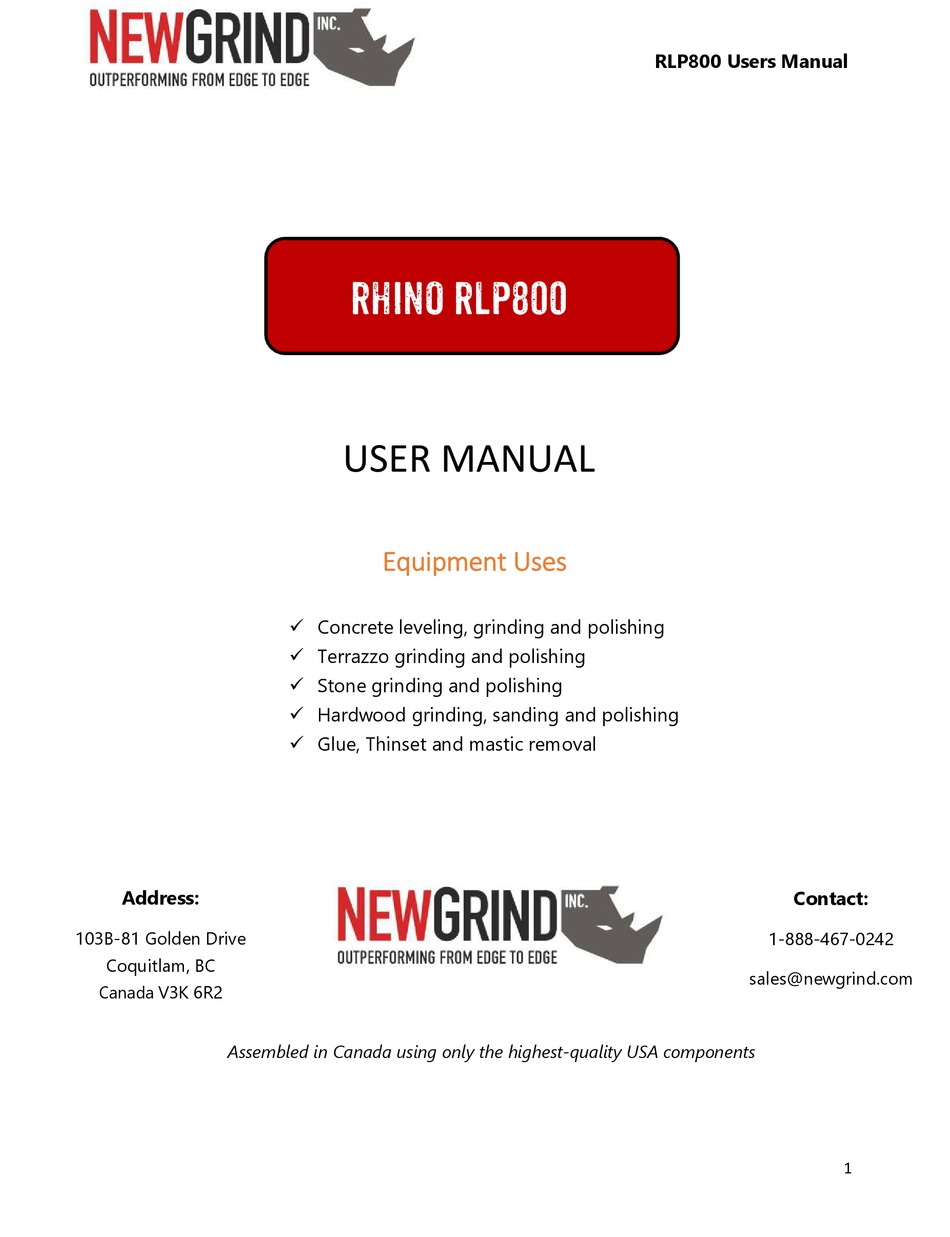

RLP800 Users Manual RHINO RLP800 USER MANUAL Equipment Uses Concrete leveling, grinding and polishing Terrazzo grinding and polishing Stone grinding and polishing Hardwood grinding, sanding and polishing Glue, Thinset and mastic removal Address: Contact: 103B-81 Golden Drive... -
Page 2: Table Of Contents
RLP800 Users Manual Table of Contents Equipment Uses..............................1 RLP800 Machine Diagram ............................4 Machine Specifications ............................. 5 Tooling ................................5 Average Production Rates..........................5 Safety Instructions ............................6 Work Area Safety ............................6 Personal Safety ............................. 6 Equipment Safety and Care .......................... 6 Service Safety .............................. - Page 3 RLP800 Users Manual Monthly Maintenance ..........................13 KAWASAKI Engine Maintenance ......................... 14 Preparation ..............................14 Troubleshooting ............................... 18 LIMITED EQUIPMENT WARRANTY OF SALE ......................... 19 FORCE MAJEURE ..............................19 LIABILITY LIMITATIONS ............................20 TERMS & CONDITIONS ............................20 AGREEMENTS ..............................22...
-
Page 4: Rlp800 Machine Diagram
RLP800 Users Manual RLP800 Machine Diagram Key start Emergency stop button Choke/throttle cable Biased weight kit pegs Hand grips Dual vacuum manifold Multi-articulating handle 18 HP Motor Propane fuel line connector Dust filter Dual propane tanks Engine oil gauge/fill port Oil filter Heavy duty wheels UHMW dust skirt... -
Page 5: Machine Specifications
RLP800 Users Manual Machine Specifications Power Propane 18 HP Kawasaki Machine weight 800 lbs Biased weight kit max weight 180 lbs Combined weight Disc speed 200-900 rpm Variable speed control Number of grinding heads Counter-rotating heads Disk size 7 inches Grinding footprint 20 inches Quick change tooling... -
Page 6: Safety Instructions
RLP800 Users Manual Safety Instructions WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS. Work Area Safety 1. Keep your work area clean and well lit. Cluttered floors and dark areas invite accidents. 2. -
Page 7: Service Safety
RLP800 Users Manual 2. Turn the machine off before making any adjustments, changing accessories, or storing equipment. Such preventive safety measures reduce the risk of starting the equipment accidentally. 3. Maintain equipment with care. Keep tools and accessories in good condition. Properly maintained tools with sharp cutting edges are less likely to fail and are easier to control. -
Page 8: Operating The Grinder
RLP800 Users Manual Operating the Grinder DANGER! ALL internal combustion engines produce Carbon Monoxide (CO), a highly toxic, invisible, odorless, tasteless gas that can cause injury and death within minutes. Only operate machines with internal combustion engines in well ventilated areas and always follow machine manufacturers operation instructions…... -
Page 9: Prior To Starting The Grinder
RLP800 Users Manual MEDIUM EXPOSURE: Severe throbbing headache, dizziness, drowsiness, confusion, fast heart rate. EXTREME EXPOSURE: Unconsciousness, convulsions, cardiorespiratory failure, brain damage, death. Many cases of CARBON MONOXIDE POISONING indicate that while victims are aware that they are not well, they become so disoriented that they are unable to save themselves by either exiting the building or calling for assistance. -
Page 10: Warming Up
RLP800 Users Manual NOTE: Do not run the electric starter continuously for more than 5 seconds, otherwise the battery may discharge quickly. If the engine does not start right away, wait 15 seconds and try again Warming up 1. After the engine starts, move the throttle lever on the equipment to halfway between “FAST”... -
Page 11: Using The Biased Weight Kit
Rhino grinder. Changing the drive belt To view a video on how to change the drive belt – please visit our website at: www.newgrind.com Changing tools and accessories WARNING: Always turn grinder off and remove the key from the ignition before... -
Page 12: Parts And Accessories
RLP800 Users Manual 5. Hold the replacement tool up against the desired slot on the tool plate and insert/tighten the bolt. NOTE: Rhino tool plates have spaces for up to 6 tools. Using 3 evenly spaced tools per plate is standard configuration. -
Page 13: Monthly Maintenance
RLP800 Users Manual Blow off motor fan with compressed air. Remove tool plate holders and wipe down bearing shields with a damp cloth. Do not use any sharp object or abrasive pad to clean the bearing shields. This can compromise the bearing seal! ... -
Page 14: Kawasaki Engine Maintenance
RLP800 Users Manual KAWASAKI Engine Maintenance Preparation NOTE: These service intervals can be used as a basic guide. Service more frequently as necessary by operating conditions = Service more frequently under dusty conditions. K = Service to be performed by an authorized Kawasaki dealer. Maintenance Daily First... - Page 15 RLP800 Users Manual K Clean dust and dirt from cylinder head and cylinder head fins Tighten nuts and screw Change engine oil Clean and re-gap spark plugs Change oil filter Repair air cleaner paper element ...
- Page 16 RLP800 Users Manual...
- Page 17 RLP800 Users Manual...
-
Page 18: Troubleshooting
RLP800 Users Manual Troubleshooting... -
Page 19: Limited Equipment Warranty Of Sale
NewGrind Inc. will, at its option, repair or replace, at the NewGrind Inc. factory or at a point designated by NewGrind Inc. any part which shall appear to the satisfaction of NewGrind Inc. -
Page 20: Liability Limitations
RLP800 Users Manual terms and conditions impracticable. In the event of the occurrence of any of the foregoing, at the option of Seller, Seller shall be excused from the performance under these Terms and Conditions, or the performance of the Seller shall be correspondingly extended. This document sets forth the terms and conditions pursuant to which the purchaser (“Purchaser”) will purchase and New Grind Inc. - Page 21 RLP800 Users Manual whether or not they are stated in any invoice for the Products. Unless otherwise specified herein, all prices are exclusive of inland transportation, freight, insurance and other costs and expenses relating to the shipment of the Products from the F.O.B. point to Purchaser’s facility. Any prepayment by Seller of freight insurance and other costs shall be for the account of Purchaser and shall be repaid to Seller.
-
Page 22: Agreements
RLP800 Users Manual final inspection must be returned Freight Prepaid in the most economical way. Credit will be issued for material found to be defective upon Seller’s inspection based on prices at time of purchase. 6. PRODUCTS ORDERED IN ERROR Products may be returned, provided that claim is made, and Seller is notified within 7 days of receipt of Products, and the Products are in original buyer’s possession not more than 30 days prior to return, subject to Seller’s approval.
