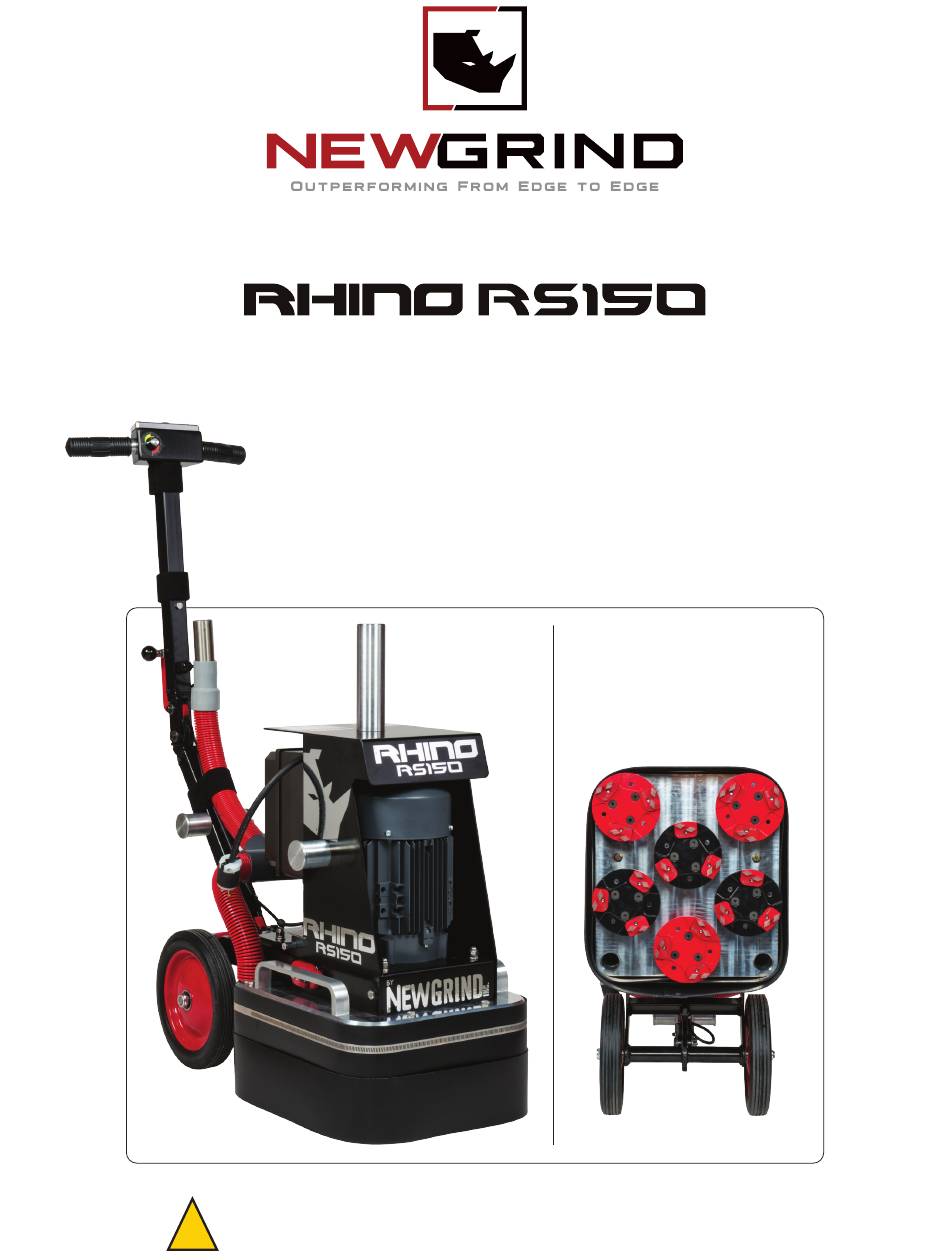

Newgrind RHINO RS150 User Manual

Hide thumbs Also See for RHINO RS150:
Table of Contents

Advertisement

Quick Links

Download this manual
user Manual - VFd: Lenze version
equipment usages
• Concrete leveling, grinding and polishing
• Glue, thinset and mastic removal
• Terrazzo grinding and polishing
• Stone grinding and polishing
• Hardwood sanding and refinishing
For your personal safety, READ and UNDERSTAND before using.
!
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHINO RS150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newgrind RHINO RS150

Summary of Contents for Newgrind RHINO RS150

  • Page 1: Equipment Uses

    user Manual - VFd: Lenze version equipment usages • Concrete leveling, grinding and polishing • Glue, thinset and mastic removal • Terrazzo grinding and polishing • Stone grinding and polishing • Hardwood sanding and refinishing For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Table Of Contents

    Rhino RS150 user Manual Table of Contents EQUIPMENT USES....................RS150 DIAGRAM ....................RS150 BOTTOM DIAGRAM .................. MACHINE SPECIFICATIONS ................. Tooling ......................Average Production Rates................SAFETY INSTRUCTIONS ..................Work Area Safety ..................Electrical Safety ................... Personal Safety ..................... Equipment Safety and Care .................

  • Page 3: Rs150 Diagram

    Rhino RS150 diagram FORWARD SPIN BUTTON STOP BUTTON REVERSE SPIN BUTTON VARIABLE SPEED ADJUSTMENT POTENTIOMETER HAND GRIPS VELCRO STRAPS FOR VACUUM CONNECTOR PORT POWER CABLE AND VACUUM HOSE LENZE VFD (MOTOR SPEED CONTROLLER) MULTI ARTICULATING HANDLE TOP WEIGHT POST UPPER RATCHET...

  • Page 4: Rs150 Bottom Diagram

    Rhino RS150 bottom diagram HYTREL COUPLER MAIN DRIVE SPROCKET QUICK-CHANGE DRIVE BELT IDLER SPROCKET X 2 SECONDRY DRIVE SPROCKET X 5 1 ON EACH SIDE COUNTER-CLOCKWISE SPINNING RHINO TOOL PLATES (RED) SINGLE OR DOUBLE GROMMET TOOL PLATE MOUNTING SYSTEM CLOCKWISE...

  • Page 5: Machine Specifications

    Rhino RS150 machine specifications POWER 15 AMP/120V (Not GFCI Compatible) MAXIMUM WATTS DRAW 1776 MACHINE WEIGHT 150 lbs BIASED WEIGHT KIT MAX WEIGHT 175 lbs COMBINED WEIGHT DISC SPEED 200-900 rpm VARIABLE SPEED CONTROL NUMBER OF GRINDING HEADS COUNTER-ROTATING HEADS...

  • Page 6: Safety Instructions

    Rhino RS150 safety instructions WARNING! Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS. Work Area Safety 1. Keep your work area clean and well lit. Cluttered floors and dark areas invite accidents.

  • Page 7: Equipment Safety And Care

    Rhino RS150 safety instructions continued Equipment Safety and Care 1. The equipment is designed to remove excess surface material. To prevent damage to the equipment and/or serious personal injury, beware of protruding objects or other debris on or embedded in the surface being finished.

  • Page 8: Operating The Grinder

    Rhino RS150 operating the grinder The machine is outfitted with a Variable Frequency Drive (VFD) enabling the user to select the desired operating speed. The equipment can operate on either 50 Hz or 60 Hz frequencies. The VFD will automatically adjust for phase or frequency input which will raise or lower head speed on the machine.

  • Page 9: Adjusting The Speed

    Rhino RS150 operating the grinder continued NOTE: Always use the equipment in the forward rotation mode (green button) unless reverse rotation is needed. This will ensure consistent tool wear. The use of the equipment in the reverse rotation is only needed when surface being finished is uneven and causes the equipment to pull in an undesired direction or when the tooling is glazed and needs to be re-dressed.

  • Page 10: Double Grommet System

    Rhino RS150 operating the grinder continued RS150 DOUBLE GROMMET SYSTEM There are 3 positions controlling tool plate articulation. NOTE: Drive heads always have 3 grommets in every position. Check grommets for wear and replace any torn or damaged grommets. RIGID –...

  • Page 11: Changing Tools And Accessories

    Rhino RS150 changing tools and accessories WARNING: Always turn grinder off and disconnect power from the machine when performing any operations to the bottom of the machine! When removing and inserting tool plates or adapter plates, be sure to inspect rubber grommets for signs for wear and replace any damaged grommets.

  • Page 12: Grinder Maintenance

    Rhino RS150 grinder maintenance WARNING: Disconnect power before performing any maintenance, cleaning, or repair to your equipment! General Maintenance · When the equipment is not in use, make sure that the adapter plate assemblies have something attached to them to protect the Velcro. Resting the machine directly on unprotected Velcro will crush the fastening ·...

  • Page 13: Troubleshooting - Lenze Vfd Error Codes

    Rhino RS150 LENZE vfd error codes LENZE VFD i550 protec IP31 / NEMA 1, NEMA 4X outdoor ERROR CODE DESCRIPTION CLASSIFICATION REMEDY BLOCKING TIME [S] RESET POSSIBLE 2250 CiA: Fault • Check motor and wiring for short circuit. Continuous overcurrent •...
  • Page 14 Rhino RS150 LENZE vfd error codes continued LENZE VFD i550 protec IP31 / NEMA 1, NEMA 4X outdoor ERROR CODE DESCRIPTION CLASSIFICATION REMEDY BLOCKING TIME [S] RESET POSSIBLE 3221 Warning: Warning • Check mains voltage. DC bus undervoltage • Check fuses.
  • Page 15 Rhino RS150 LENZE vfd error codes continued LENZE VFD i550 protec IP31 / NEMA 1, NEMA 4X outdoor ERROR CODE DESCRIPTION CLASSIFICATION REMEDY BLOCKING TIME [S] RESET POSSIBLE FF06 Motor overspeed Fault • Adapt the maximum motor speed (P322.00) and the error threshold (P350.01).

  • Page 16: Limited Equipment Warranty Of Sale

    NewGrind Inc. will, at its option, repair or replace, at the NewGrind Inc. factory or at a point designated by NewGrind Inc. any part which shall appear to the satisfaction of NewGrind Inc. inspection to have been defective in material or workmanship.

  • Page 17: Liability Limitations

    Rhino RS150 liability limitations LIABILITY LIMITATIONS The remedies of the user set forth under provisions of warranty outlined above are the exclusive and total liability of New Grind Inc. with the respect to their sale or the equipment and service furnished hereunder, in...
  • Page 18 Rhino RS150 terms & Conditions continued Seller will not assume responsibility for the performance of the carrier. Backorders will be shipped in the most practical fashion with charges consistent with our freight policy established with the original order. UPS, FED EX, MAIL or shipments by other couriers are subject to the same terms and conditions as outlined in paragraph #3 ”Freight Terms”.
