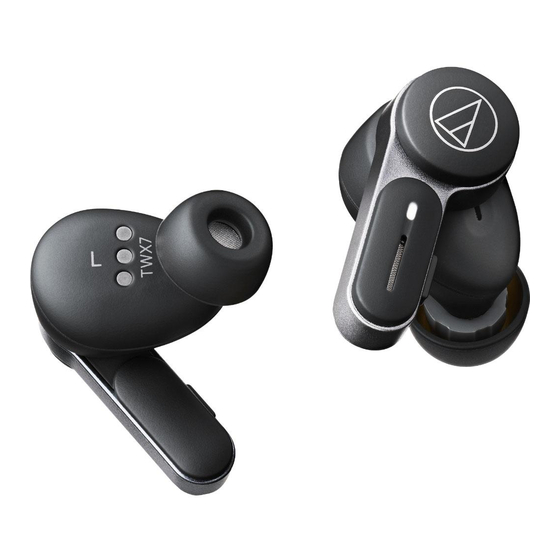

ATH-TWX7
Wireless Headphones
User Manual
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATH-TWX7 and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Technica ATH-TWX7

Summary of Contents for Audio Technica ATH-TWX7

  • Page 1 ATH-TWX7 Wireless Headphones User Manual English...

  • Page 2: Safety Precautions

    Safety precautions Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product. Cautions for the headphones Do not use the product near medical equipment. Radio waves may affect cardiac pacemakers and medical electronic equipment.

  • Page 3: Cautions For Rechargeable Battery

    Safety precautions Do not cover the product with a cloth to avoid fire or injury by overheating. Do not charge the battery if the terminal of the USB charging cable is bent, loose, or damaged. Doing so may cause heat generation, smoke emission, fire or electric shock. Do not charge the product if water or foreign matter is inside the battery jack or USB charging cable.

  • Page 4: For Customers In The Usa

    Safety precautions For customers in the USA FCC Notice Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 Safety precautions (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device complies with RSS-102 radiation exposure limits set forth for an uncontrolled environment.

  • Page 6: Notes On Use

    Notes on use Be sure to read the connected device’s user manual before use. Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product. On public transportation or in other public places, keep the volume low so as not to disturb other people.
  • Page 7 Notes on use If the product does not operate at all or as intended when touched, check to make sure that your other fingers, parts of your hand, or clothing items are not in contact when touching. Also, the product may not operate correctly if you are wearing gloves or if your fingertips are too dry.

  • Page 8: About The Active Noise-Cancelling Function

    About the active noise-cancelling function The product is designed to use its built-in microphone to pick up noise from the surrounding environment (noise from vehicles, noise from air conditioners, etc.) and to cancel out that noise by producing sounds in negative phase. This results in a reduction in the sounds in your environment.
  • Page 9 About water-resistant (drip-proof) performance The water-resistant (drip-proof) specification of this product applies only to the headphones, not the charging case. Although the headphones have water-resistant (drip-proof) capabilities equivalent to IPX4, the part where the sound comes from is not water-resistant (drip-proof). The water-resistant (drip-proof) performance is designed to protect the headphones if they get wet from rain, etc.

  • Page 10: For A More Comfortable Bluetooth Communication Experience

    For a more comfortable Bluetooth communication experience The effective communication range of this product varies depending on obstructions and radio wave conditions. For a more enjoyable experience, please use the product as close as possible to the Bluetooth device. To minimize noise and sound disruptions, avoid placing your body or other obstacles between the product’s antenna and the Bluetooth device.

  • Page 11: Part Names And Functions

    Part names and functions Headphones L/R (left/right) indicator Microphone Touch sensor Use to operate specific functions, such as switching ambience control. Indicator lamp Displays the operating status and battery level of the headphones. Multifunction button Use to play/pause music and answer phone calls. Also use to adjust the volume (+/–).

  • Page 12: Charging Case

    Part names and functions Charging case Cover Indicator lamp Lights/flashes when charging the charging case. Also displays the battery level of the charging case. Battery jack Use to connect the included USB charging cable and charge the product. Accessories ER-TW32 ER-TW1 USB charging cable (30 cm (12"), USB Type-A / USB Type-C) Eartips (ER-TW32/ER-TW1) (XS, S, M, L)
  • Page 13 Part names and functions Removing the insulation seal Remove the insulation seal before use. Insulation seal...

  • Page 14: Charging The Battery

    Charging the battery Fully charge the battery when using for the first time. When the rechargeable battery is running low, the voice guidance will play the message “Low battery”, and the indicator lamps will flash in orange. Charge the battery as soon as possible. It takes about 1.5 hours to fully charge the headphones, and about 3 hours to fully charge the charging case.
  • Page 15 Charging the battery Connect the included USB charging cable (USB Type-A side) to the computer to start charging. While charging, the indicator lamp on the charging case lights/flashes as follows. (It may take several seconds for the indicator lamp to light.) Indicator lamp Indicator lamp Status...
  • Page 16 Charging the battery Place the headphones in the charging case. While charging, the headphone indicator lamps light as follows. (It may take several seconds for the indicator lamps to light.) When charging the headphones, make sure the indicator lamps on the headphones light up. If they do not light up, remove the headphones and place them in the case again.

  • Page 17: Wireless Charging

    Charging the battery Indicator lamp Status Flashing orange slowly (once) Battery level low Flashing yellow slowly (once) Battery level medium Flashing green slowly (once) Battery level high Flashing orange quickly (twice) Battery is discharged. Charge the charging case. Wireless charging Wireless charging is possible using commercially available Qi wireless chargers.

  • Page 18: Power Supply On/Off

    Power supply ON/OFF Turning on the product Remove the headphones from the charging case. The power will turn on automatically and the indicator lamps on the headphones will light in white and then flash. Press and hold (for about 2 seconds) the multifunction buttons to turn the power on manually. It may take several seconds for the indicator lamps to light.
  • Page 19 Power supply ON/OFF The power will turn off automatically. Press and hold (for about 4 seconds) the multifunction buttons to turn off the power manually.

  • Page 20: Connecting Via Bluetooth

    Use your Bluetooth device to begin the pairing process and search for the product. When your Bluetooth device finds the product, “ATH-TWX7” will be displayed on the device. For information about using your Bluetooth device, refer to the device’s user manual.
  • Page 21 Connecting via Bluetooth Bluetooth ATH-TWX7 The voice guidance will play the message “Connected”, and the indicator lamps on the headphones will flash slowly in white. This indicates pairing was successfully completed. Pairing with Fast Pair In one touch, the product enables quick, effortless Bluetooth pairing with your Android devices. You can even check to see where you last placed it.

  • Page 22: About Pairing

    Connecting via Bluetooth Touch the pairing notification that appears on your Android device. The voice guidance will play the message “Connected”, and the indicator lamps on the headphones will flash slowly in white. This indicates pairing was successfully completed. About pairing When connecting a new Bluetooth device, you need to pair it with the product.

  • Page 23: Wearing The Product

    Wearing the product Insert the side of the product marked “L” (left) into the left ear and the side marked “R” (right) into the right ear.

  • Page 24: Touch Sensors

    Touch sensors The product has touch sensors. When performing operations, touch the sensors using the pad of your finger, not the fingertip. Operate the touch sensor with one finger. Operating with a sharp-tipped object, such as a ballpoint pen or pencil, may result not only in incorrect operation, but also damage to the touch sensor.

  • Page 25: Using The Product

    Using the product The product can use Bluetooth wireless technology to connect to your device and play music, receive phone calls, etc. Use the product for whichever of these purposes suits your needs. Note that Audio-Technica cannot guarantee the operation of displays, such as the battery level display, or applications via Bluetooth devices. Listening to music To connect for the first time, pair the product and your device via Bluetooth wireless technology.

  • Page 26: Talking On The Phone

    Using the product R (right) side headphone multifunction-button operation Multifunction button Operation Function Press Starts or pauses playback. Press (twice) Plays the next track. Press (three times) Plays the previous track / returns to the start of the track. The controls explained above may not be available on some smartphones. L (left) side headphone multifunction-button operation Multifunction button Operation...
  • Page 27 Using the product Remove the headphones from the charging case and place them in your ears. Make/receive calls with your Bluetooth device. When your Bluetooth device receives a phone call, the product sounds a ringtone. If a call is received while you are listening to music, music playback is paused. To receive a call, press the multifunction button on the L (left) or R (right) side headphone.
  • Page 28 Using the product R (right) side headphone multifunction-button operation Multifunction button Operation Function Press Receiving a call: Answers the call. Press (twice) Mutes the microphone. Receiving a call: Rejects the call. Press and hold (about 2 seconds) Making a call: Cancels the call. During a call: Ends the call.
  • Page 29 Using the product L (left) side headphone multifunction-button operation Multifunction button Operation Function Receiving a call: Answers the call. Press During a call: Increases the call volume by 1 level. Press (twice) During a call: Decreases the call volume by 1 level. Receiving a call: Rejects the call.
  • Page 30 Using the product When you are making a call / receiving a call / talking on the phone. When the volume is adjusted from a connected Bluetooth device. When one headphone is off. When both headphones are off. The talk-through function cannot be used during a call. Depending on your surroundings, the ambient sounds may be difficult to hear even when using the product’s talk-through function.

  • Page 31: Auto Power Off Function

    Using the product Touch and hold (about 2 seconds) the touch sensor on the R (right) side headphone. The speech recognition feature (such as Google Assistant or Siri) is activated. Auto power off function The headphones turn off automatically in the following situations. When the headphones are not connected to a Bluetooth device for 5 minutes When music is paused for 60 minutes after pairing is performed App for smartphones...
  • Page 32 Using the product Function Description Ambience Control You can switch between the noise-cancelling and hear-through functions. You can turn the talk-through function on or off, set the talk-through type, Talk-Through and adjust the music playback volume for talk-through. Equalizer You can adjust the equalizer settings. Audio Codecs You can change the connection codec.

  • Page 33: Indicator Lamps On The Headphones

    Indicator lamps on the headphones Pairing Status Indicator lamp display pattern ○ - ○ - ○  ・ ・・ Searching for devices Flashing white (gradually lighting up) Connecting Status Indicator lamp display pattern ○-----○-----○  ・ ・・ Connecting Flashing white in 5-second intervals -- -- -- -- -- --   ・ ・・ Music is playing Battery level Status...

  • Page 34: Voice Guidance

    Voice guidance The product plays English voice guidance in the following situations. Use the “CONNECT” app to change the voice guidance language. Situation Voice guidance Bluetooth is connected Connected Bluetooth is disconnected Disconnected Noise-cancelling function on Noise-cancelling (ambience control) Hear-through function on Hear-through (ambience control) Off (ambience control)
  • Page 35 Cleaning Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners, or other solvents for cleaning purposes. Wipe any dirt off the headphones and charging case with a dry cloth. The headphones may not operate correctly or may not turn on if they are wet.

  • Page 36: Eartip Size

    Eartips Selecting eartips To provide better fit, two types of eartips are included with this product. Use the type that fits you best. Eartips are provided in four sizes (XS, S, M, and L). This applies both to the soft eartips (ER-TW32), which reduce strain on the ears even when used for long periods of time, and the firmer normal eartips (ER-TW1), which are designed to provide better fit and stability.
  • Page 37 Forced pairing mode / reset If the product does not connect to a device (forced pairing mode) If pairing cannot be cancelled or is not successful, you can use forced pairing mode to perform pairing again. After both headphones (L (left) and R (right) sides) are placed in the charging case (with battery remaining) and the headphone indicator lamps turn on, touch and hold (about 4 seconds) the touch sensors of both headphones.

  • Page 38: Troubleshooting

    Troubleshooting Power is not supplied Charge the product. Unable to pair Confirm that the Bluetooth device communicates using Ver. 2.1+EDR or higher. Place the product and the Bluetooth device within 1 m (3.3') of each other. Set the profiles for the Bluetooth device. For procedures on how to set profiles, refer to the Bluetooth device’s user manual.
  • Page 39 Troubleshooting Sound is distorted / Noise is heard / Sound cuts out Turn down the volume on the product and the Bluetooth device. Keep the product away from devices that emit radio waves such as microwaves and wireless routers. Keep the product away from TVs, radios, and devices with built-in tuners. These devices can also be affected by the product.
  • Page 40 Troubleshooting My voice is too quiet for others to hear Make sure the product is oriented correctly with the tip (microphone) as close as possible to your mouth. For details, refer to "Notes for talking on the phone" (p. 26). Charging case cannot be charged Securely connect the included USB charging cable and charge the product.

  • Page 41: Communication Specifications

    Specifications Headphones Type Dynamic Driver 5.8 mm Sensitivity 100 dB/mW Frequency response 10 to 40,000 Hz 16 ohms Impedance Microphones Type MEMS type Polar pattern Omnidirectional -38 dB (1 V/Pa, at 1 kHz) Sensitivity Frequency response 100 to 16,000 Hz Communication specifications Communication system Bluetooth version 5.1...
  • Page 42 Specifications Other Headphones: DC 3.85 V lithium ion battery Power supply Charging case: DC 3.85 V lithium ion battery Headphones: Approx. 1.5 hours Charging case: Approx. 3.0 hours (USB charging) , Approx. 5.0 hours Charging time (wireless charging) Continuous transmission time (music playback): Max.
  • Page 43 Trademarks ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Audio-Technica Corporation is under license. Other trademarks and trade names are those of their respective owners. ™ USB Type-C is a trademark of USB Implementers Forum.
  • Page 44 株式会社オーディオテクニカ 〒194-8666 東京都町田市西成瀬2-46-1 www.audio-technica.co.jp Audio-Technica Corporation 2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan www.audio-technica.com ©2023 Audio-Technica Corporation Global Support Contact: www.at-globalsupport.com 351701370-02-01 ver.1 2023.12.01...
