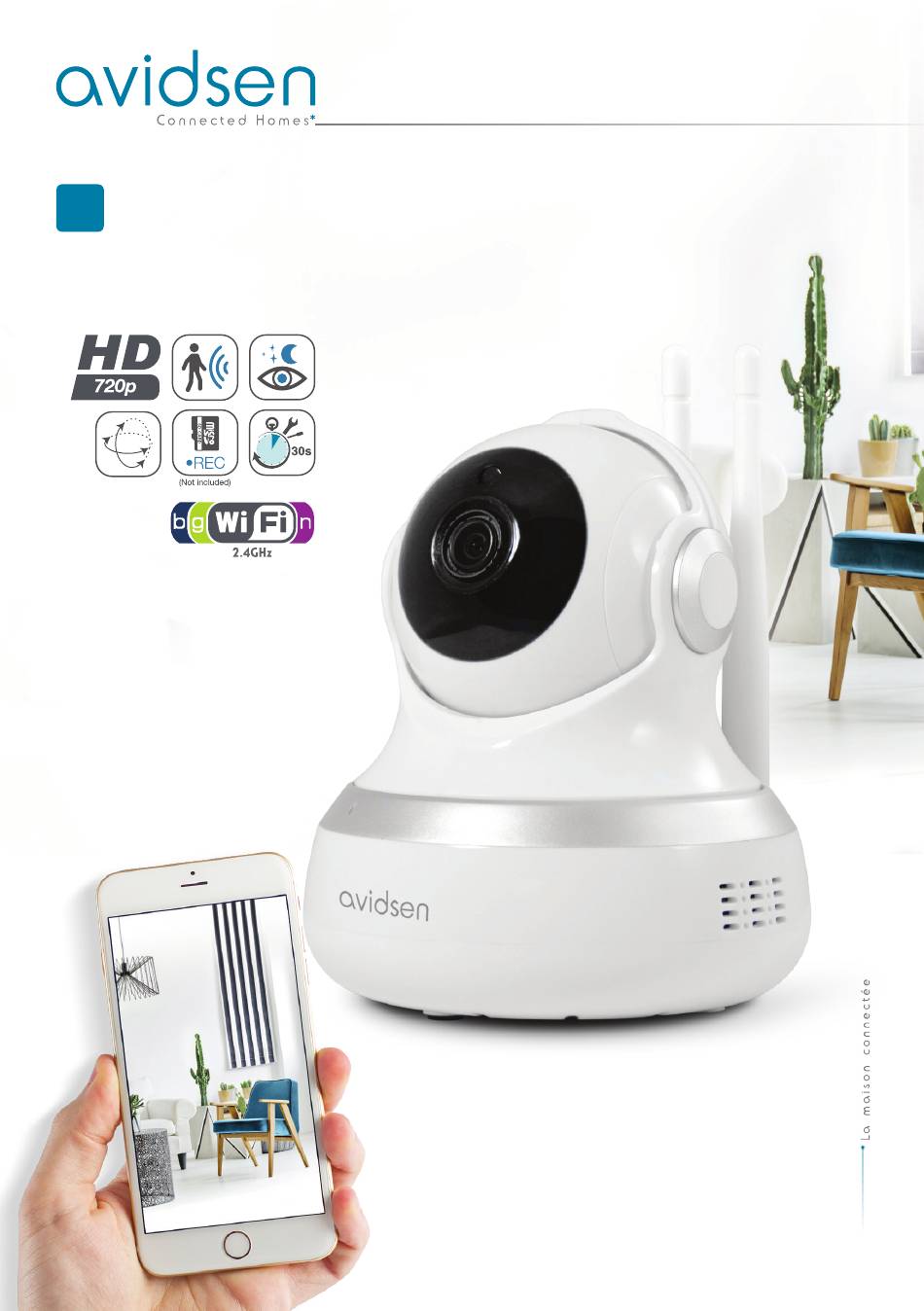

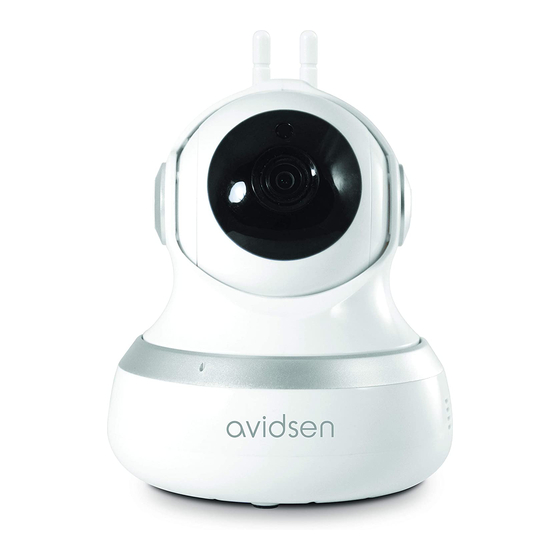

- Page 1 Motorised 720P indoor WiFi IP camera ref. 123982 www.avidsen.com...
-
Page 2: Table Of Contents
CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - MAINTENANCE AND CLEANING 3 - RECYCLING B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 2 - CAMERA 3 - MAINS ADAPTOR C - INSTALLATION 1 - INSTALLING THE CAMERA 2 - INSERTING A MICRO SD CARD (NOT INCLUDED) 3 - CONNECTING THE CAMERA D - CONFIGURATION... - Page 3 MOTORISED 720P INDOOR WIFI IP CAMERA F - RESETTING G - FAQ H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2 - WARRANTY 3 - HELP AND ADVICE 4 - PRODUCT RETURNS/AFTER SALES SERVICE 5 - DECLARATION OF CONFORMITY...
-
Page 5: A - Safety Instructions
MOTORISED 720P INDOOR WIFI IP CAMERA A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 3 - RECYCLING • The cameras must not be installed where the This logo denotes that devices which are lens filter may be vulnerable to scratching and no longer in use must not be disposed of dirt. -
Page 6: B - Product Description
MOTORISED 720P INDOOR WIFI IP CAMERA B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT Wall mounting bracket Camera Wall plugs for wall-mounting 230 V A/C 50 Hz mains adaptor / 5 V D/C Screws for wall-mounting 2 - CAMERA Front view Rear view Reset button... -
Page 7: Mains Adaptor
MOTORISED 720P INDOOR WIFI IP CAMERA B - PRODUCT DESCRIPTION 3 - MAINS ADAPTER A 230 V A/C 50 Hz / 5 V D/C 2 A mains adapter for powering the camera is included in the kit. Do not use other power supplies as they could damage the camera and invalidate the warranty. -
Page 8: C - Installation
MOTORISED 720P INDOOR WIFI IP CAMERA C - INSTALLATION 1 - INSTALLING THE CAMERA The camera may be attached to a wall, the ceiling or placed on a flat, horizontal surface. Fix the camera mount using screws and wall plugs suitable for the type of supporting surface (the screws and plugs included are suitable for solid walls). -
Page 9: Connecting The Camera
MOTORISED 720P INDOOR WIFI IP CAMERA C - INSTALLATION 3 - CONNECTING THE CAMERA... -
Page 10: D - Configuration
MOTORISED 720P INDOOR WIFI IP CAMERA D - CONFIGURATION 1 - CONFIGURING THE CAMERA AND At this point, the camera must be powered on and ADDING IT TO THE APP started up. It plays a standby tune when it is ready. Note: the screenshots displayed have been taken Click on “Ready music played”... -
Page 11: Access To All Settings
MOTORISED 720P INDOOR WIFI IP CAMERA D - CONFIGURATION few seconds, once the camera has managed to join the network indicated by your smartphone, the camera plays a tune. When your smartphone detects the presence of your camera on the network, it asks you which time zone it should use: The time indicated is inset in the video recordings made by the camera. -
Page 12: Configuration
MOTORISED 720P INDOOR WIFI IP CAMERA D - CONFIGURATION It is easier if you rename your camera here after pairing Change of camera access password, which changes when the camera is started up MicroSD card management (not included) and formatting Movement detection management:... -
Page 13: E - Operation
MOTORISED 720P INDOOR WIFI IP CAMERA E - OPERATION 1 - LIVE VIDEO Simultaneous display of up to 4 cameras Smartphone microphone activation to speak From the list of cameras (home screen of the app through the camera’s speaker after start-up), click on the image or name of your Start/stop of video recording (recording onto camera to display the live video: smartphone memory) - Page 14 MOTORISED 720P INDOOR WIFI IP CAMERA E - OPERATION When a recorded video is viewed, it appears instead of the live image Review start/stop On/off of sound on recorded video Taking an immediate photo of the recording being viewed (saved to the smartphone memory) Start/stop of video recording saved to the smartphone memory for the video recording...
-
Page 15: F - Resetting
MOTORISED 720P INDOOR WIFI IP CAMERA F - RESETTING If there is a problem, the WiFi configuration may be reset by pressing and holding the Reset button at the back until a beep is heard. Once reset, the camera will start up again. After 30 seconds, it is available for reconfiguration. -
Page 16: G - Faq
MOTORISED 720P INDOOR WIFI IP CAMERA G - FAQ Symptoms Possible causes Solutions Please contact the technical You have an out-of-date or support of your device’s incompatible version of Android manufacturer in order to obtain a on your device recent Android version Unable to install the Protect- Google Play checks all the key Home app... -
Page 17: H - Technical And Legal Information
MOTORISED 720P INDOOR WIFI IP CAMERA H - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS Camera 5V DC / 1A Power supply WiFi IEEE 802.11 b/g/n 2.4 GHz WPA/WPA2 Compatible RJ45 Network interface Ethernet 10/100 Mbps ¼’’ CMOS Optical sensor Minimum luminous intensity 0 lux Automatic (dusk-to-dawn sensor) -
Page 18: Warranty
The warranty will be void if the device is tampered http://sav.avidsen.com with. Avidsen undertakes to keep a stock of spare parts 3 - HELP AND SUGGESTIONS for this product throughout the contractual warranty period. • If, despite the care we have taken in designing... - Page 19 MOTORISED 720P INDOOR WIFI IP CAMERA...
- Page 20 SmartHome France 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
