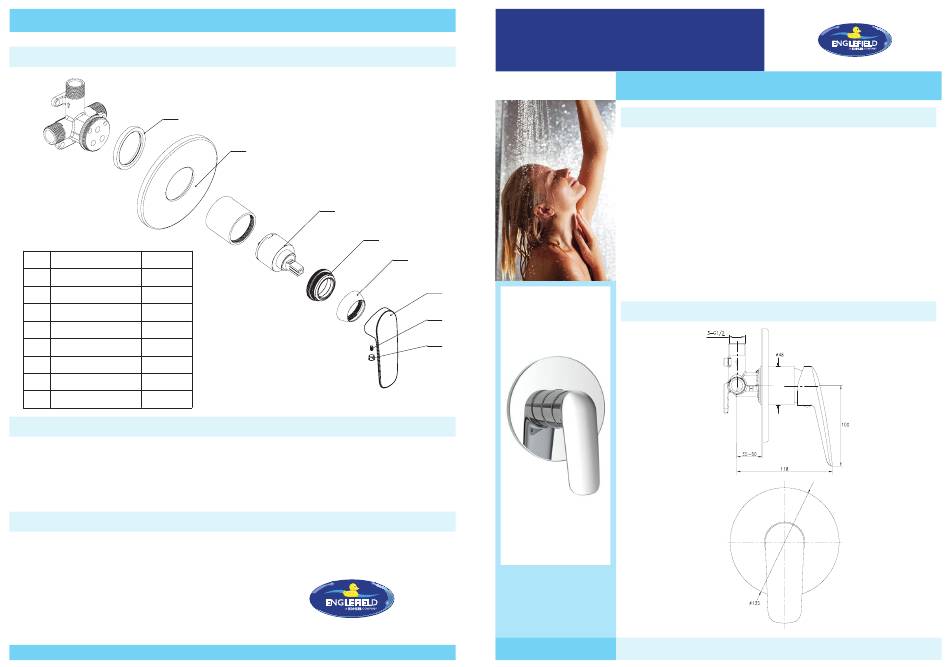

SORRENTO Shower or Bath Mixer
SPARE PARTS LIST
8
No.
Description
Part No.
1
Button
1250283-CP
2
Screw
1250284
3
Handle
1250300-CP
4
Bonnet
1250280-CP
5
Nut
1250282
6
Cartridge
1250278
7
Face Plate
1250343-CP
8
Lining Ring
1250347
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with a
clean soft cloth. Many cleaners may contain such chemicals as ammonia, chlorine, toilet chemicals etc. which
could adversely affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Englefield tapware.
CONTACT AND WARRANTY INFORMATION
NEW ZEALAND
AUSTRALIA
KOHLER NZ LTD
KOHLER CO.
Free Ph: 0800 100 382
Free Ph: 1 800 ENGLEFIELD
Free Fax: 0800 664 488
(1 800 364 533)
www.englefield.co.nz
www.englefield.com
For warranty information, please visit our website
1258467-AN2-A
April 2015
INSTALLATION INSTRUCTIONS
7
6
5
4
Page 4
INSTALLATION
INSTRUCTIONS
TAPWARE
3
2
1
If you are building a
bathroom from scratch,
giving your bathroom a
makeover or just replacing
an old tap, Englefield can
provide a solution for you.
1258467-AN2-A
April 2015
Englefield
SORRENTO
Shower or Bath Mixer
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of
publication. ENGLEFIELD reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please leave this installation guide for the consumer as it contains
important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Ensure all local plumbing codes are observed.
3. Optimum working pressure: 100kPa to 500kPa.
4. Minimum working pressure: 35kPa.
5. Maximum working pressure: 800kPa.
6. If pressure exceeds 500kPa, a pressure limiting valve must be installed.
7. All installations should comply with the relevant requirements of AS/NZS 3500.
ROUGH-IN
97545A-CP
Englefield
