Englefield STUDIO 97533A-4 Installation Instructions

STUDIO Pin Lever Shower or Bath Mixer
SPARE PARTS LIST
10
No. Description Part No.
1 Plug 1250283-**
1250284
2 Screw
3 Pin lever handle 1315417- * *
4 Bonnet 1250280-**
5 Nut 1250282
1250278
6 Cartridge
7 Face plate 1315418-**
1315419
8 O-ring
** Please specify a colour when ordering:
1315420-**
9 Outer sleeve
-CP (Chrome),
-BN (Brushed nickel),
1315422
1 0 O-ring
-BL (Matte Black)
CLEANING INSTRUCTIONS
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with a
clean soft cloth. Many cleaners may contain such chemicals as ammonia, chlorine, toilet chemicals etc. which
could adversely affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Englefield tapware.
CONTACT AND WARRANTY INFORMATION
NEW ZEALAND AUSTRALIA
KOHLER NZ LTD KOHLER CO.
Free Ph: 0800 100 382 Free Ph: 1 800 ENGLEFIELD
Free Fax: 0800 664 488 (1 800 364 533)
www.englefield.co.nz
www.englefield.com
For warranty information, please visit our website
1315151-AN2-B July 2017

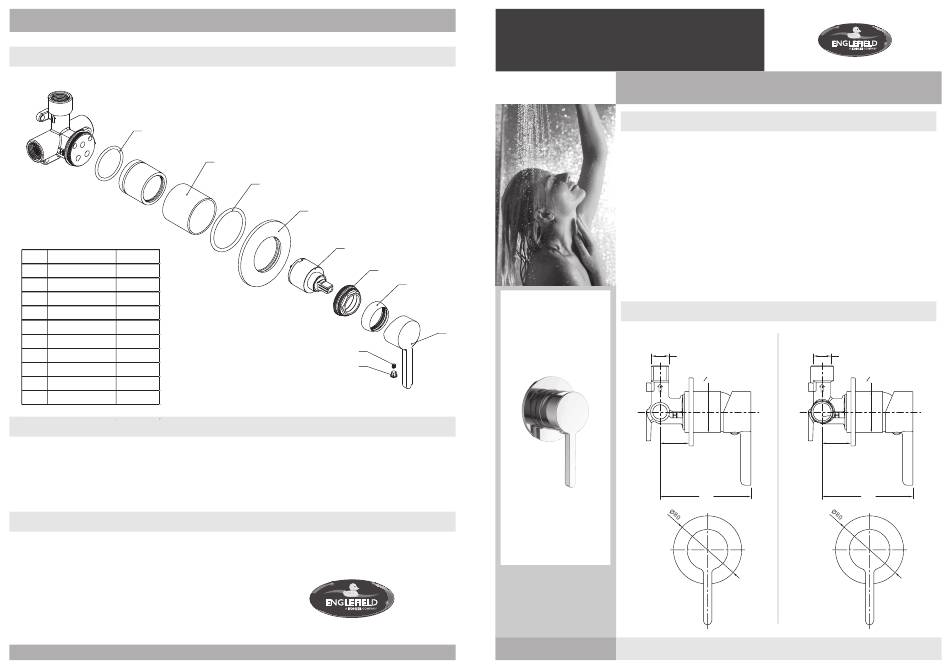

INSTALLATION INSTRUCTIONS
97533A-N4 Female Rc1/2" valve (Shown)
97533A-4 Male G1/2" valve (Not Shown)
9
8
7
6
5
2
1
Page 4
INSTALLATION
INSTRUCTIONS
TAPWARE
4
3
If you are building a
bathroom from scratch,
giving your bathroom a
makeover or just replacing
an old tap, Englefield can
provide a solution for you.
1315151-AN2-B July 2017
Englefield
Pin Lever Shower or
STUDIO
Bath Mixer
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of
publication. ENGLEFIELD reserves the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please leave this installation guide for the consumer as it contains
important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Ensure all local plumbing codes are observed.
3. Optimum working pressure: 100kPa to 500kPa.
4. Minimum working pressure: 35kPa.
5. Maximum working pressure: 500kPa.
6. If pressure exceeds 500kPa, a pressure limiting valve must be installed.
7. All installations should comply with the relevant requirements of AS/NZS 3500.
ROUGH-IN
97533A-4 97533A-N4
(Male G1/2" connections)
3 x Male G1/2''
O48
35 - 60
107
97533A-4
97533A-N4
(Female Rc1/2" connections)
3 x Female Rc1/2''
O48
35 - 60
107
