Englefield QUICK-FIT SHOWER TRAY Installation Instructions

Download this manual

INSTALLATION

INSTRUCTIONS

SHOWER

BEFORE YOU BEGIN

NOTE: Building requirements can vary, local regulations must be checked prior to installation.

NOTE: Drawings in this document are not to scale.

A) SHOWER TRAY & ENGLEFIELD DURACRYL WALL/TILED WALL INSTALLATION OPTIONS

The tray should be installed in accordance with one of the following recommended methods: Fig 1,2 or 3.

Fig. 1 - Wet Area Wall Board & Englefield Duracryl Wall

IMPORTANT

Install Duracryl Shower Wall

as per installation instructions

supplied with the wall.

TH (Tray height):

Low Profile - 112mm

SlipSafe - 102mm

1236457-A02-E

13/01/2020

QUICK-FIT

SlipSafe Tray

60mm sill height

SHOWER TRAY

Low Profile Tray

70mm sill height

WET AREA WALL BOARD (9-10mm)

SIKA SHOWERBOND ADHESIVE

DURACRYL WALL

SIKASIL NG SILICONE SEALANT

Engle eld

Need help?

Do you have a question about the QUICK-FIT SHOWER TRAY and is the answer not in the manual?

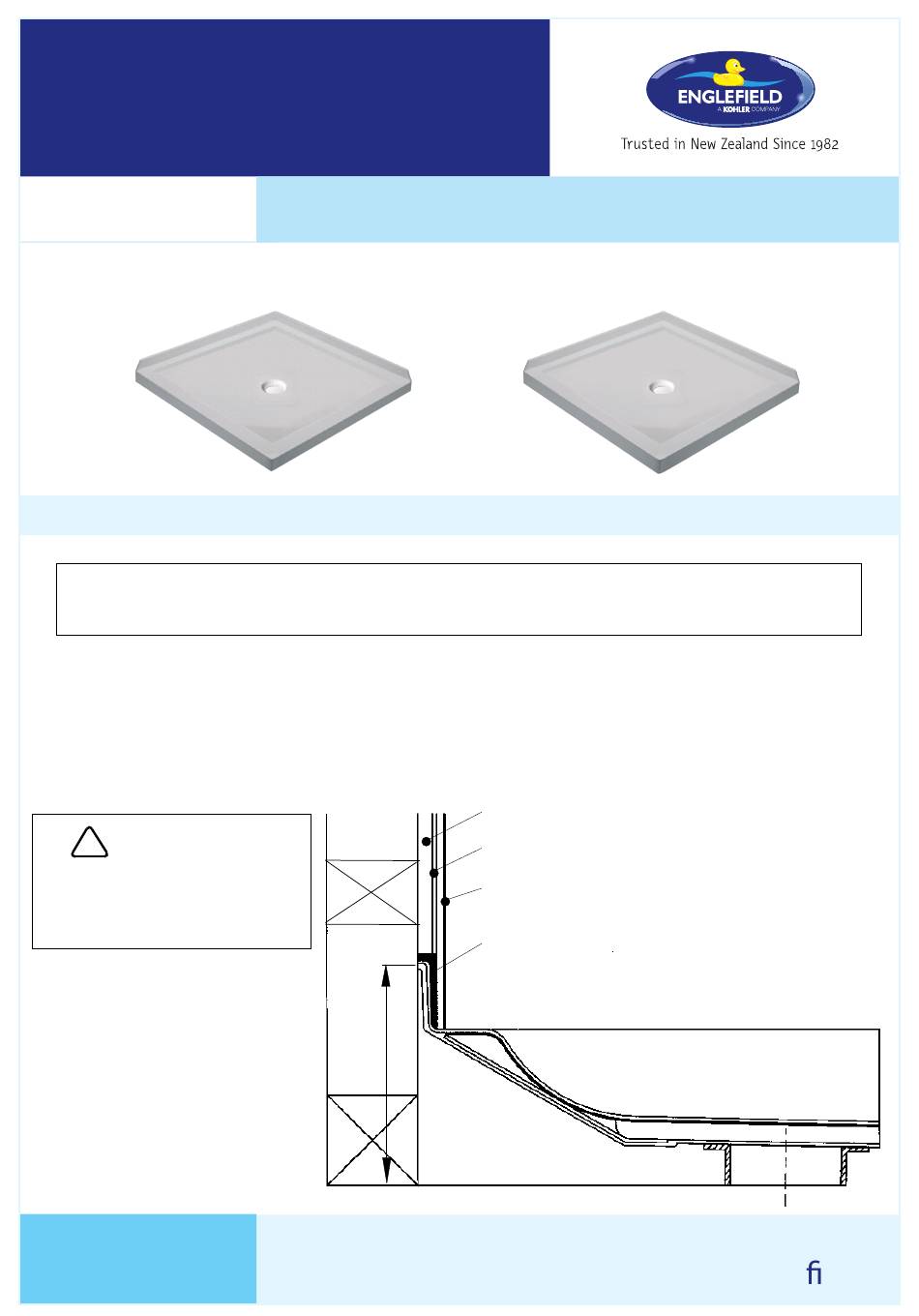

Page 1 A) SHOWER TRAY & ENGLEFIELD DURACRYL WALL/TILED WALL INSTALLATION OPTIONS ® The tray should be installed in accordance with one of the following recommended methods: Fig 1,2 or 3. ® Fig. 1 - Wet Area Wall Board & Englefield Duracryl Wall WET AREA WALL BOARD (9-10mm) IMPORTANT ®...
Page 2 QUICK-FIT SHOWER TRAY INSTALLATION INSTRUCTIONS Wall retainer extrusions or door must be installed prior to tiling. IMPORTANT Please refer to installation instructions provided with shower door. Fig. 2 - Wet Area Wall Board & Tiles - Method 1 WET AREA WALL BOARD (9-10 mm)
Page 3 This is particularly important for Alcove (3-sided) ® installations where an Englefield Duracryl wall will be installed. 3) Ensure studs are located as shown (dimensions A,B & C) to provide a solid support for the door and return panels.
Page 4 24 hours to allow enough time for adhesive to cure. INSTALLATION - SHOWER WASTE Install shower waste. Follow instructions supplied with the waste. INSTALLATION - ENGLEFIELD DURACRYL WALL ® Install wall if applicable. Follow instructions supplied with the wall. CONTACT AND WARRANTY INFORMATION - For contact information, please refer to the Home Owner’s Guide.
