Quick Installation Guide
5236TG28
Industrial Ethernet Switch
www.avcomm.us
・Overview
The 5236TG28 is a new generation of intelligent switch launched by
AVCOMM for operators' IP metropolitan area networks, government and
enterprise networks, Internet cafes, and diskless working environments.
5236TG28 is based on a new generation of high-performance hardware
and ANMS software platform with independent intellectual property rights,
Supports powerful ACL, flexible QinQ, 1:1 and N:1 VLAN switching,
Ethernet OAM, carrier-grade QoS, industrial-grade 10 Gigabit Ethernet
Ring network and other functions, support Layer 3 routing protocols. The
product can meet the application requirements of various complex
scenarios.
100/1000M BaseSFP+
Combo
AVCOMM Technologies, Inc
・Package Checklist
1 x Product Unit
1 x Quick Installation Guide
1 x Power Cord

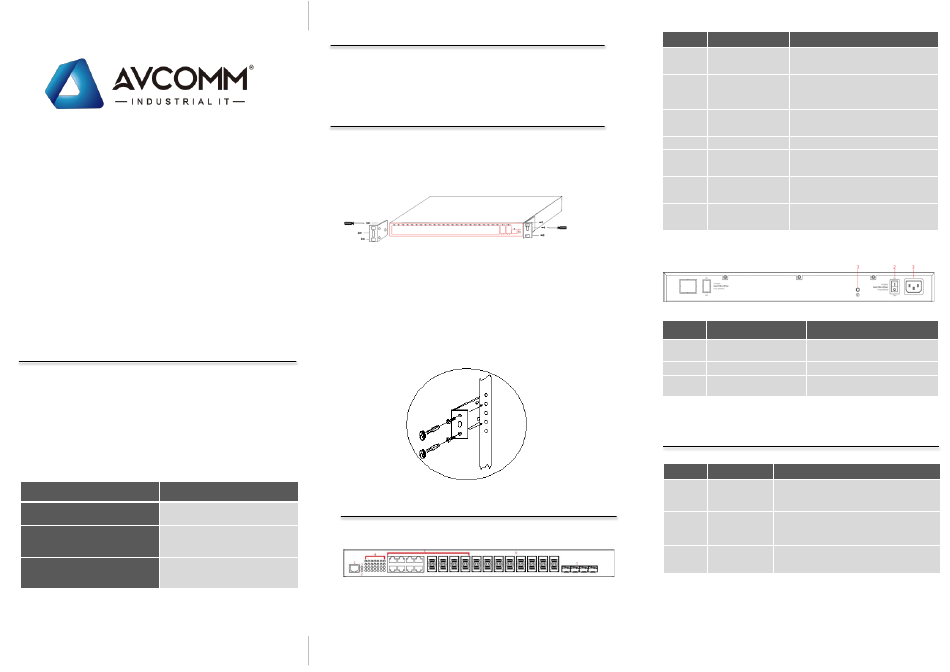

・Installation
Rackmount
The switch chassis is fixed to the rack by brackets. Fix the bracket
and make sure the front panel of the switch faces forward.
Desktop Mounted:
The 5236TG28 can be placed directly on a smooth, flat, and secure
desktop.
Note: Do not place anything too heavy (4.5kg) on top of the switch,
as it may damage the switch.
Note:
The switch in this figure do not represent the actual 5236TG28.
Once the brackets are installed, the switch can be mounted in the
rack.
5236TG28
・Appearance
4
24
8
No
Port
Description
1
CLI port
Baud rate 9600bps, CLI port
The light is normally on, and
2
PWR LED
the device is powered on
normally
The light flashes and the
3
SYS LED
system starts normally
4
ACT LED
LINK/ACT
Gigabit
5
Combo port
Ethernet
Gigabit
6
GSFP port
Ethernet
10-Gigabit
7
SFP+ port
Ethernet
No
Port
Description
Grounding is
1
Grounding
required.
2
Power switch
ON;OFF
Input voltage:
3
AC power
AC100-240V
・LED Indication
No
Name
Description
The switch is
1
PWR
powered on, and
the LED is on.
LED on,system start.
2
SYS
LED flash,system operation.
LED on,LINK normal.
3
LINK/ACT
LED off,LINK abnormal .
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
