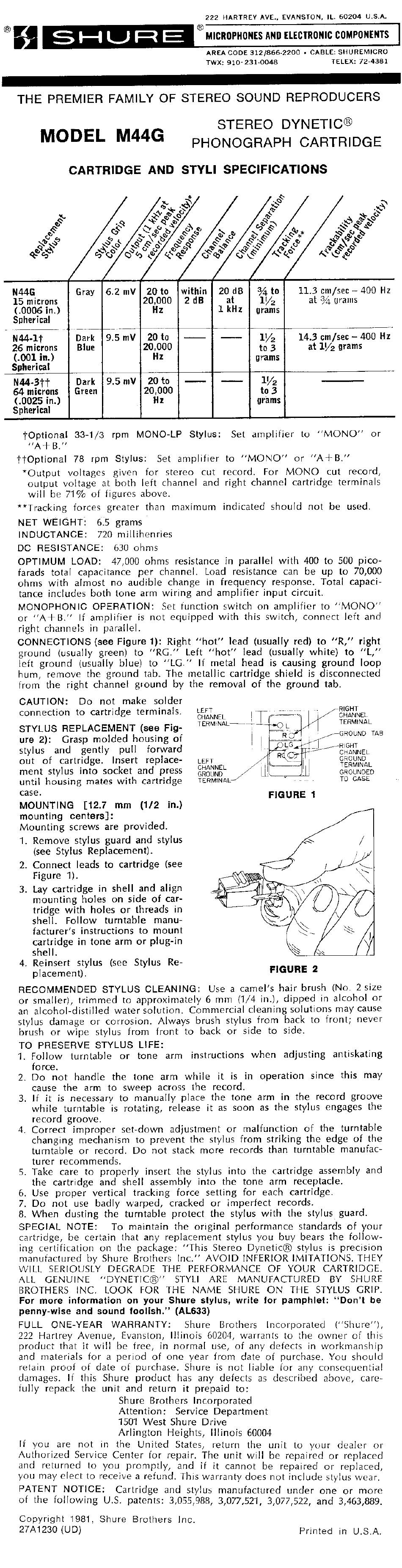

Shure M44G Manual

222 HARTREY AVE.. EVANSTON.
IL. 60204 U . S
A
-
T W X : 910-231.0048 TELEX: 72-4381
THE PREMIER FAMILY OF STEREO SOUND REPRODUCERS
STEREO DYNETICO
M44G
PHONOGRAPH CARTRIDGE
CARTRIDGE AND STYLI SPECIFICATIONS
?Optional 33-1/3 rpm MONO-LP Stylus: Set a m p l i f ~ e r to "MONO" o r
"A+B."
t t o p t i o n a l 78 rpm Stylus: Set ampllfler to "MONO" or "A+B."
*Output voltages given for stereo cut record. For M O N O cut record,
output voltage at both left channel and right channel cartridge terminals
w i l l be 71% of flgures above.
**Tracking
forces greater than maximum ind~cated should not be used.
NET WEIGHT: 6.5 grams
INDUCTANCE: 720
millihenries
DC RESISTANCE: 630 ohms
OPTIMUM LOAD:
47,000 ohms resistance i n parallel with 400 to 500 pico-
farads total capacitance per channel. Load resistance can be up t o 70,000
ohms with almost no audible change In frequency response. Total capaci-
tance includes both tone arm wirlng and amplifier input circuit.
MONOPHONIC OPERATION: Set tunction switch on ampllfler to "MONO"
or "A+B." If ampllfler is not equipped with this sw~tch, connect left and
right channels in parallel.
CONNECTIONS (see Figure 1): Right "hot" lead (usually red) to "R," right
ground (usually green) to "RC." Left "hot" lead (usually white) t o "L,"
left ground (usually blue) to "LC
"
I f metal head is causing ground loop
hum, remove the ground tab. The ~ n e t a l l i c cartridge shield is disconnected
from the right channel g ~ o u n d by the removal of the ground tab.
CAUTION: D o not make solder
connection to cartridge terminals.
STYLUS REPLACEMENT (see Fig-
ure 2): Grasp molded housing o f
GROUND TAB
stylus and gently pull forward
R
c 7
out of cartridge. Insert replace-
GROUND
k t k L
, , , ,
L =
1
TERMINAL
ment stylus into socket and press
GROUNDED
until housing mates with cartridge
TERMINAL
TO CASE
case. FIGURE 1
MOUNTING f12.7 mm (112
in.)
mounting centers]:
Mounting screws are provided.
1. Remove stylus guard and stylus
(see Stylus Replacement).
N U G
15 mlcrons
(.0006 in.)
Spherical
.
N U - l t
26 microns
LOO1
in.)
Spherical
N44-377
64
microns
(.0025
in.)
Spher~cal
2. Connect leads to cartridge (see
Figure 1).
3. Lay cartridge i n shell and align
mounting holes on side of car-
tridge with holes o r threads i n
shell. Follow turntable manu-
facturer's instructions to mount
cartridge i n tone arm o r plug-in
shell.
4. Reinsert stylus (see Stylus Re-
placement).
FIGURE 2
RECOMMENDED STYLUS CLEANING: Use a camel's hair brush (No. 2 size
or smaller), trimmed to approximately 6 mm (1/4 in.), dipped in alcohol o r
an alcohol-distilled water solution. Commerc~al cleaning solutions may cause
stylus damage or corrosion. Always brush stylus from back to front; never
brush o r wipe stylus from front to back or side t o side.
TO PRESERVE STYLUS LIFE:
1. Follow turntable o r tone arm instructions when adjusting antlskating
force.
2. D o not handle the tone arm while i t is i n operation since this may
cause the arm to sweep across the record.
3. I f i t is necessary to manually place the tone arm i n the record groove
while turntable is rotating, release i t as soon as the stylus engages the
record groove.
4. Correct improper set-down adjustment o r malfunction of the turntable
changing mechanism to prevent the stylus from striking the edge of the
turntable o r record. D o not stack more records than turntable rnanufac-
turer recommends.
5. Take care t o properly insert the stylus into the cartridge assembly and
the
cartridge
and shell assembly into the tone arm receptacle.
6. Use proper vertical tracklng force setting for each cartridge.
7. D o not use badly warped, cracked o r imperfect records.
8. When dusting the turntable protect the stylus with the stylus guard.
SPECIAL NOTE:
To maintain the orlginal performance standards of your
cartridge, be certain that any replacement stylus you buy bears the follow-
ing certification on the package: "This Stereo Dynetic@ stylus is preclslon
manutactured bv Shure Brothers Inc." AVOID INFERIOR IMITATIONS. THEY
Gray
-
Dark
Blue
Dark
Green
WILL SERIOUSLY DEGRADE THE PERFORMANCE OF YOUR CARTRIDGE.
ALL GENUINE "DYNETICO" STYLI ARE MANUFACTURED BY SHURE
BROTHERS INC. LOOK FOR THE NAME SHURE O N THE STYLUS GRIP.
For more information on your Shure stylus, write for pamphlet: "Don't be
penny-wise and sound foolish." (AL633)
FULL ONE-YEAR WARRANTY: Shure Brothers lncorporated ("Shure"),
222 Hartrey Avenue, Evanston, Illinois 60204, warranls to the owner of t h ~ s
product that i t
will
be free, in normal use, of any defects In workmansti~p
and inaterials for a p e r ~ o d of one year from date of purchase. You should
relaln proof of date of purchase. Shure is not liable {or any consequential
damages. I f this Shure product has any defects as descr~hed above, care-
tully repack the unlt and return i t prepaid to:
Shure Brothers lncorporated
Attention: Service Department
1501 West Shure Drive
Arlington Heights, Illinois 60004
I f you are not In the United States, return the unit to your dealer 01-
Authorized Service Center for repair. The unit w ~ l l be repaired or replaced
and returned to you promptly, and if i t cannot be repalred o r replaced,
you may clecl to receive a refund. T h ~ s warranty does not include stylus wear.
PATENT NOTICE: Cartridge and stylua manufactured under one o r more
o f the following U.S. patents: 3,055,988, 3,077,521, 3,077,522, and 3,463,889.
Copyright 1981, Shure Brothers Inc.
27A1230 (U D)
Printed ~n U.S A.
6 2
m V
-
9.5 mV
9.5 mV
20 to
20,000
H z
- -
20
to
20,000
H z
20
to
20,000
H z
within
2 dB
-
-
20 dB
at
1 kHz
3/4 to
1
grams
-
-
1 1 3 c~ii/sec
-
400 Hz
at
3/4
urallis
1
to 3
grams
1%
to
3
grams
14.3
cm/sec
-
400 Hz
at
1 %
grams
. .
